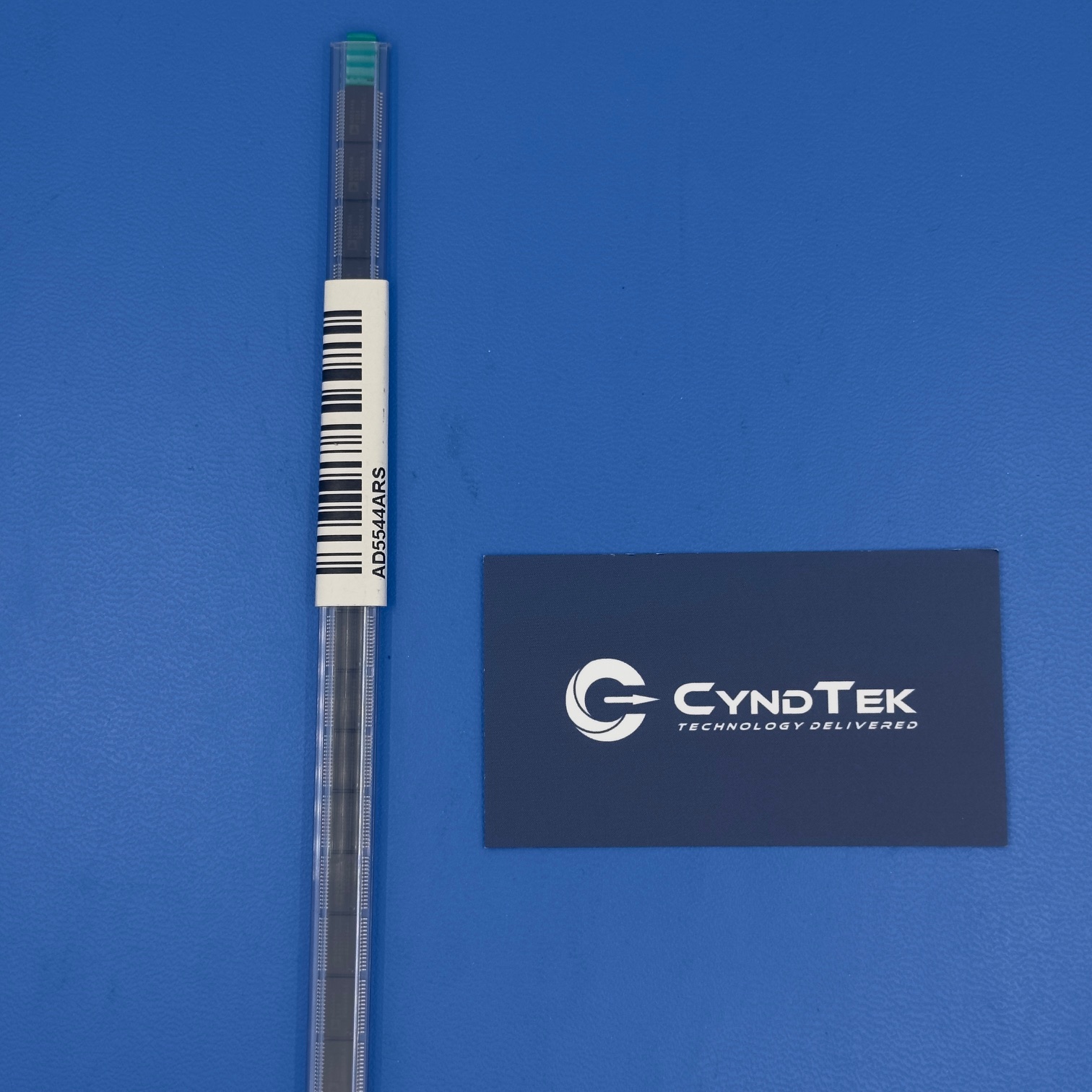

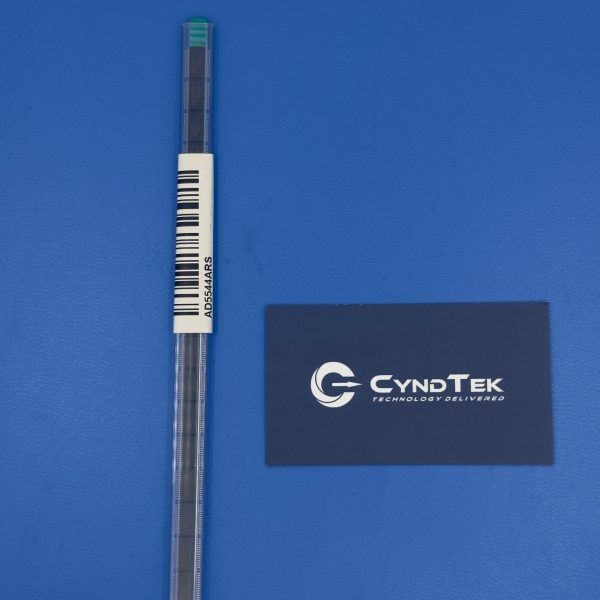

AD5544ARS Specifications
Manufacturer: Analog Devices
Part Number: AD5544ARS
Product Type: Digital to Analog Converter
Resolution: 16 Bit
Number of Channels: 4
DAC Type: Voltage Output DAC
Interface Type: Serial SPI Compatible Interface
Settling Time: Fast Precision DAC Architecture
Supply Voltage Range: 4.5 V to 5.5 V
Package Type: SSOP-28
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
Applications Class: Precision Data Conversion
Packaging: Factory
Key Features
The AD5544ARS is a quad 16-bit digital-to-analog converter designed for precision analog output applications. It provides four independent DAC channels within a single integrated circuit. Additionally, the device supports high resolution signal conversion which enables accurate analog signal generation from digital data. Because the DAC architecture supports low glitch energy and stable output performance, engineers frequently use this device in instrumentation and precision control systems. As a result, the AD5544ARS supports reliable high resolution analog output in demanding electronic designs.
Applications
Industrial process control systems
Instrumentation signal generation
Precision calibration equipment
Automated test equipment
Data acquisition systems
Medical instrumentation electronics
Analog signal generation circuits
Embedded control electronics
Product Overview
The AD5544ARS from Analog Devices provides a high resolution digital-to-analog conversion solution for precision electronic systems. First, the quad DAC architecture allows multiple analog outputs to be generated from a single integrated circuit.
Additionally, the device provides 16-bit resolution which enables precise voltage control for measurement and control applications. Because many instrumentation systems require accurate analog signal generation, precision DAC devices are widely used in these environments.
Moreover, the SSOP-28 package supports integration into compact surface mount circuit boards used in modern electronic assemblies. Engineers frequently use devices such as the AD5544 in industrial automation systems, laboratory instrumentation, and embedded analog control systems.
Therefore, the AD5544ARS remains a dependable solution for high resolution analog signal generation in precision electronic applications.
