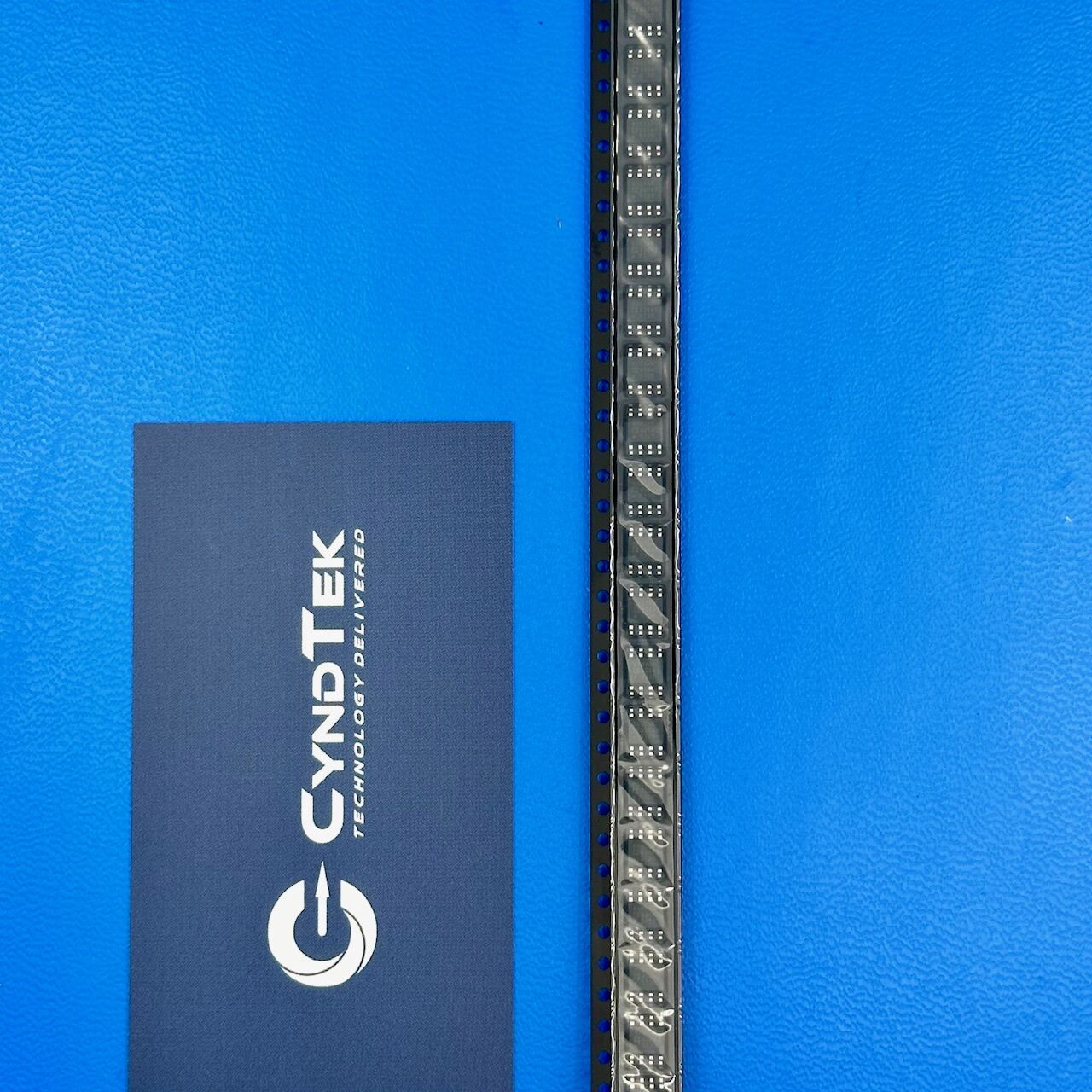

AD8007ARZ-R7

AD8007ARZ-R7 Specifications

Manufacturer: Analog Devices
Part Number: AD8007ARZ-R7
Product Type: High-Speed Current Feedback Operational Amplifier
Number of Channels: 1
−3 dB Bandwidth: 650 MHz (Gain = +1)
Slew Rate: 1000 V/µs
Input Voltage Noise Density: 2.7 nV/√Hz
Harmonic Distortion (Second): −83 dBc at 20 MHz
Harmonic Distortion (Third): −92 dBc at 20 MHz
Supply Voltage Range: 5 V to 12 V
Quiescent Current: 9 mA (typical)
Input Offset Voltage: 0.5 mV (typical)
Package / Case: 8-Lead SOIC
Operating Temperature Range: −40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The AD8007ARZ-R7 is a high-performance current feedback operational amplifier from Analog Devices, designed to deliver ultralow distortion and noise. With a −3 dB bandwidth of 650 MHz at a gain of +1 and a slew rate of 1000 V/µs, it is well-suited for high-speed applications. The amplifier exhibits a low input voltage noise density of 2.7 nV/√Hz, ensuring minimal noise contribution to the signal path. At 20 MHz, it achieves a second harmonic distortion of −83 dBc and a third harmonic distortion of −92 dBc. Thus highlighting its exceptional linearity. Operating over a supply voltage range of 5 V to 12 V and consuming a typical quiescent current of 9 mA. the AD8007ARZ-R7 balances performance with power efficiency. Its compact 8-lead SOIC package allows for easy integration into various circuit designs.

Applications

Instrumentation requiring high-speed signal processing
IF and baseband amplification in communication systems
Active filters with stringent performance criteria
Analog-to-digital converter (ADC) drivers demanding low distortion
Digital-to-analog converter (DAC) buffers needing high linearity

Product Overview

Analog Devices’ AD8007ARZ-R7 operational amplifier offers a compelling combination of high bandwidth, fast slew rate, and low noise. Making it ideal for applications that require precise and rapid signal amplification. Its current feedback architecture enables superior performance in terms of speed and distortion compared to traditional voltage feedback amplifiers. The device’s low input offset voltage and harmonic distortion levels ensure accurate signal reproduction, which is critical in high-fidelity systems. Additionally, the wide supply voltage range and low quiescent current make it adaptable to various power environments without compromising efficiency. The AD8007ARZ-R7’s robust design and operating temperature range of −40°C to +85°C ensure reliable performance in diverse conditions, This makes it a versatile choice for designers seeking high-speed amplification solutions.
