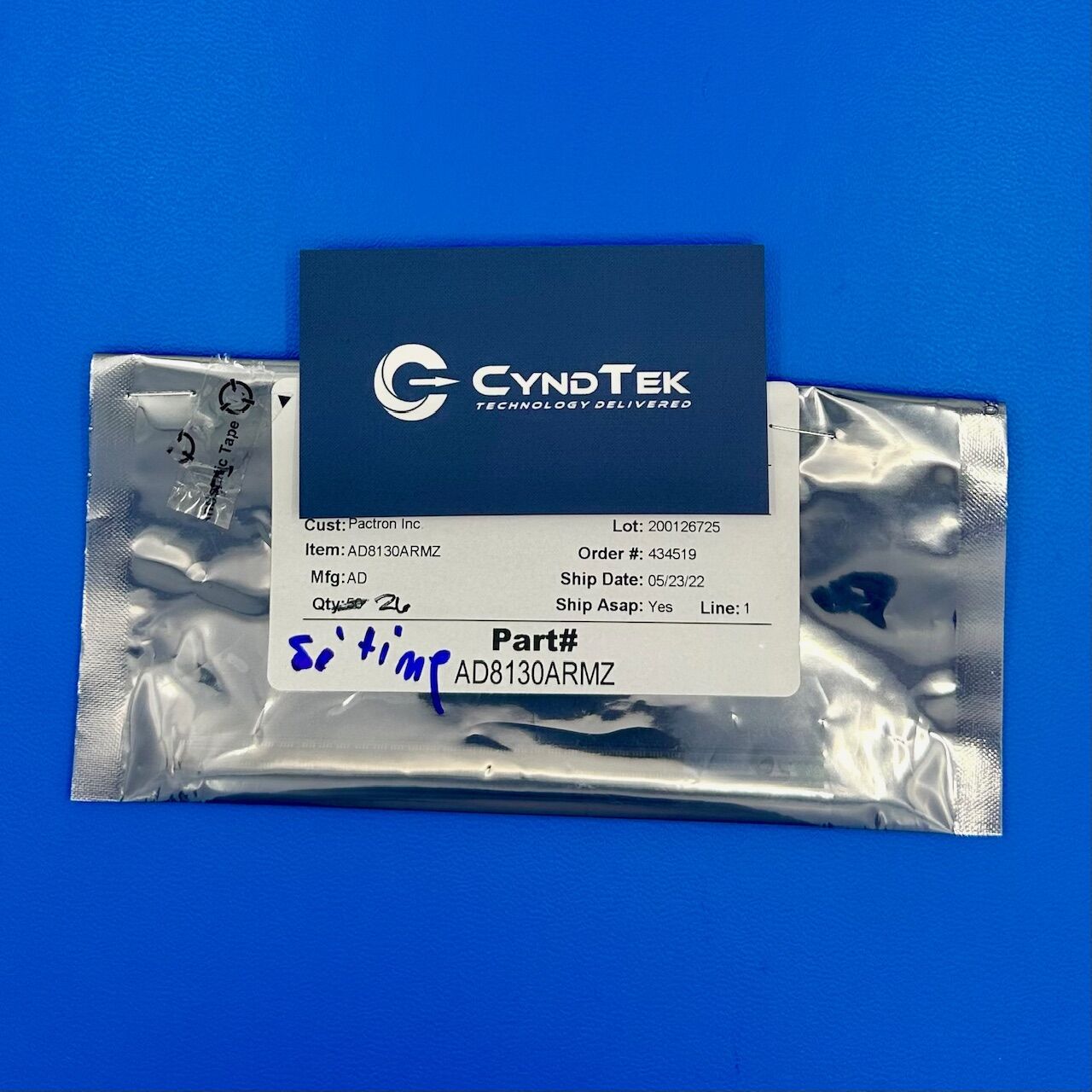

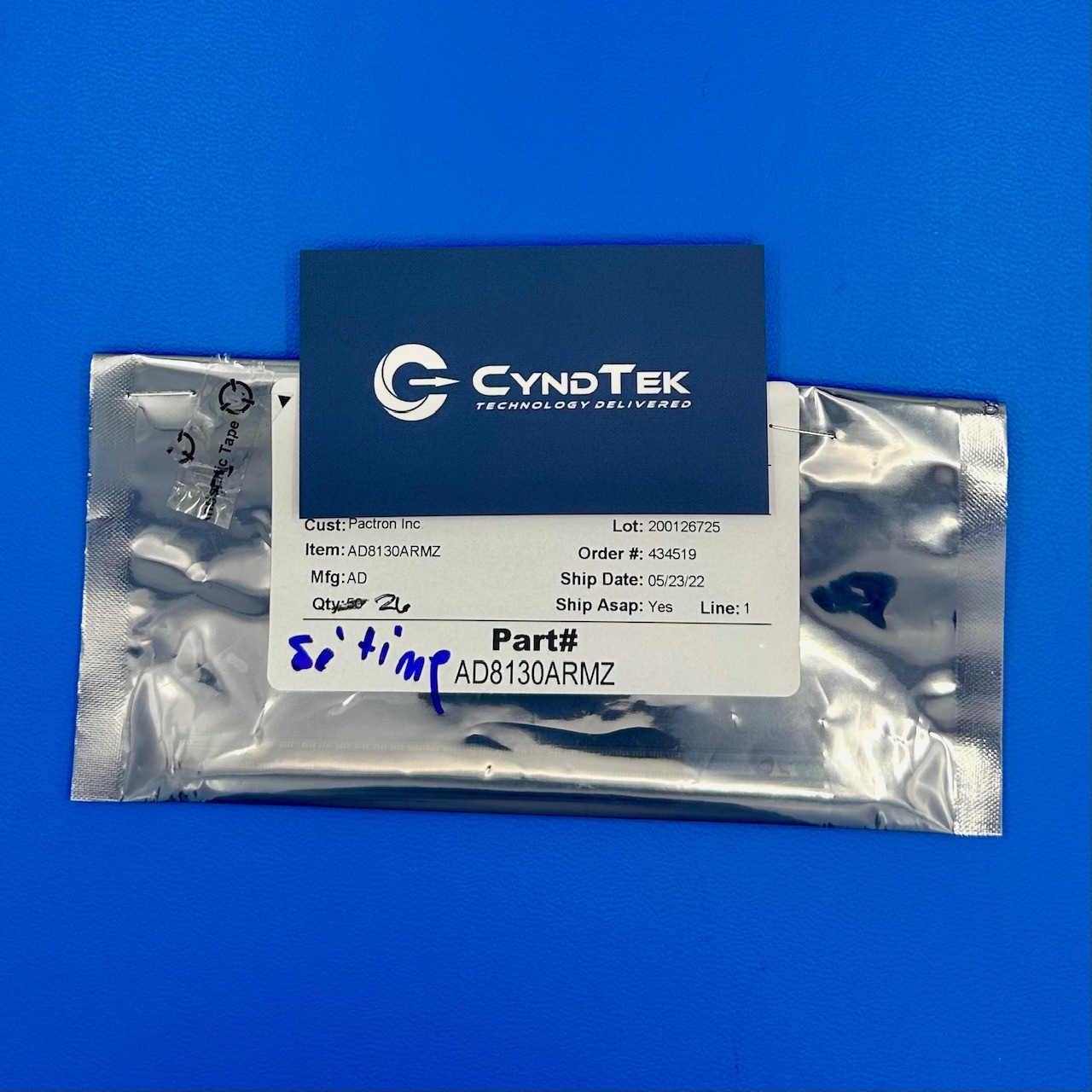

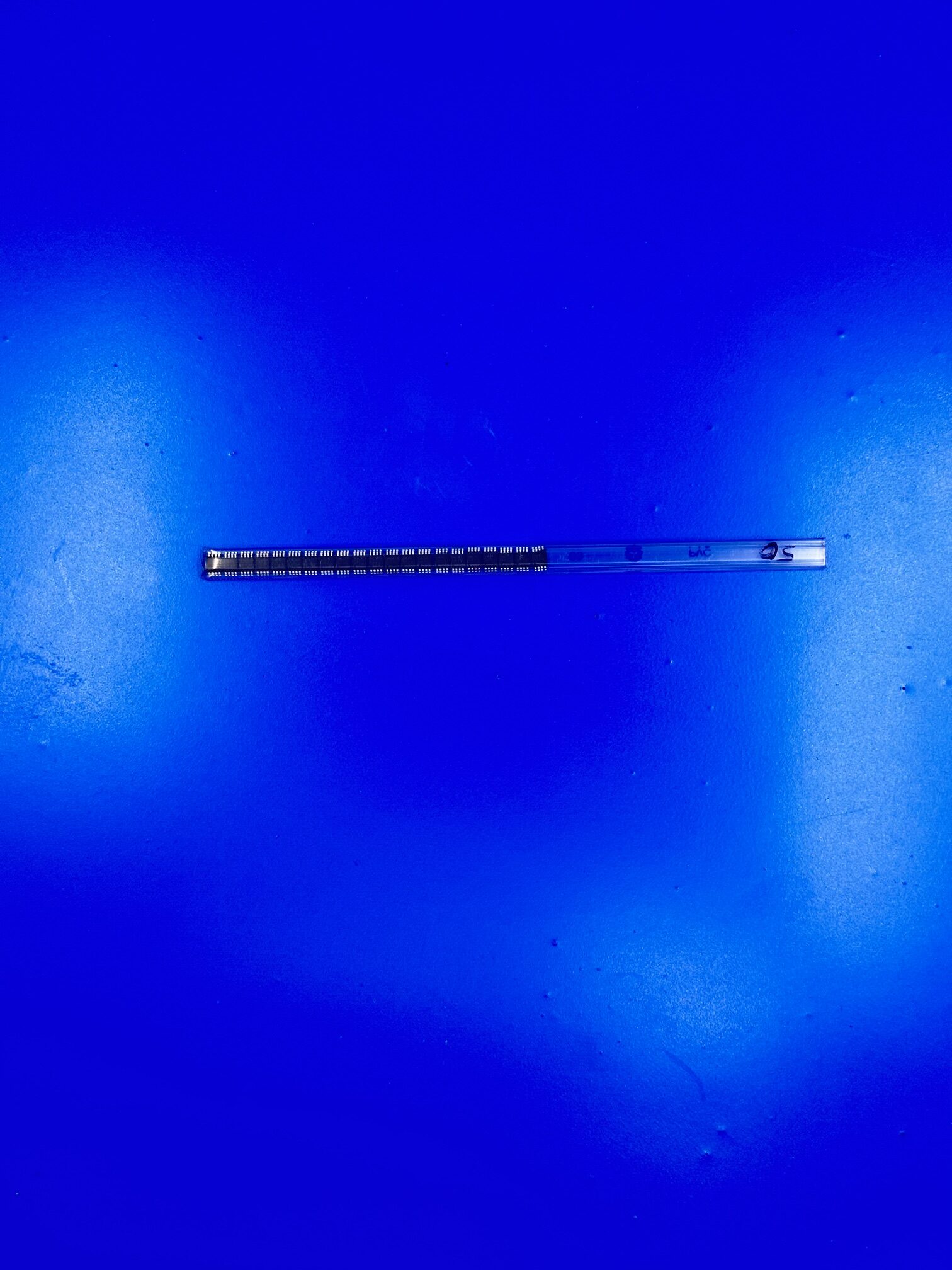

AD8130ARMZ Specifications
Manufacturer: Analog Devices
Product Category: Semiconductor
Amplifier Type: Differential Video/Signal Amplifier
Supply Voltage Range: ±5 V to ±15 V
Bandwidth (-3 dB): 200 MHz
Slew Rate: 420 V/µs
Input Offset Voltage: 1 mV (max)
Output Drive: ±50 mA
Common-Mode Rejection Ratio: 85 dB (typical)
Package / Case: 8-Lead MSOP / Surface Mount
Operating Temperature Range: –40 °C to +85 °C
Mounting Type: Surface Mount (SMT)
Category: Semiconductor
Key Features:
Moreover, the AD8130ARMZ provides high-speed differential to single-ended signal amplification with excellent linearity for demanding analog applications. Additionally, its wide bandwidth and fast slew rate support high-frequency video and data signal paths. Furthermore, low input offset voltage improves accuracy in precision systems. Also, robust output drive capability ensures strong performance across varied load conditions. Finally, the surface mount package supports compact system designs and efficient assembly.
Applications:
Differential video signal buffering
High-speed data acquisition
Communications front-end signal conditioning
Test and measurement instruments
Analog signal processing systems
Product Overview:
The AD8130ARMZ from Analog Devices is a high-performance differential amplifier designed for video and high-frequency signal applications. Consequently, it accepts differential inputs and delivers balanced, high-bandwidth amplification suitable for demanding data and video paths. In addition, its fast slew rate and wide supply range make it versatile for multiple systems. Furthermore, the low offset and robust output drive help preserve signal integrity across various loads. As a result, this device is ideal for differential signal conditioning in communications, instrumentation, and data acquisition designs. Also, its compact surface mount package simplifies layout and manufacturing for modern PCB assemblies.
Contact Us:
For pricing, availability, or technical assistance with AD8130ARMZ, email Cyndtek’s sales team at sales@cyndtek.com and we will help with your design and sourcing needs.
For additional available stock, browse our full inventory.
