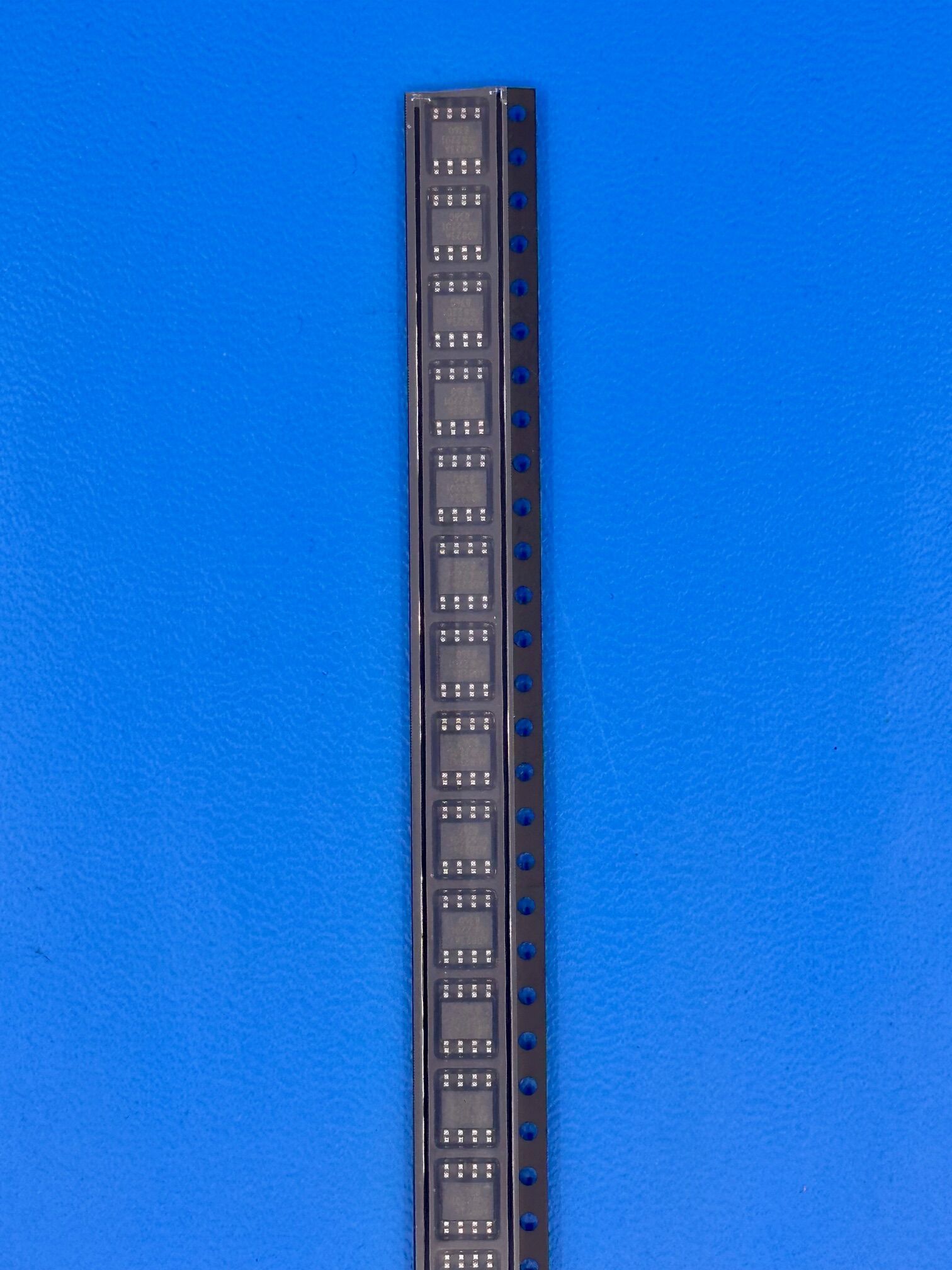

AD823ARZ-RL

AD823ARZ-RL Specifications

Manufacturer: Analog Devices Inc.
Part Number: AD823ARZ-RL
Product Type: Dual, 16 MHz, Rail-to-Rail FET Input Operational Amplifier
Number of Circuits: 2
Gain Bandwidth Product: 16 MHz
Slew Rate: 22 V/µs
Input Offset Voltage: 800 µV (maximum)
Input Bias Current: 25 pA (maximum)
Output Current per Channel: 17 mA
Supply Voltage Range: 3 V to 36 V (single supply) or ±1.5 V to ±18 V (dual supply)
Operating Temperature Range: -40°C to +85°C
Package / Case: 8-SOIC (0.154″, 3.90mm Width)
Mounting Type: Surface Mount
RoHS Status: RoHS Compliant

Key Features

The AD823ARZ-RL is a dual precision, 16 MHz, JFET input operational amplifier designed for high-speed and low-power applications. It operates from a single supply voltage ranging from 3 V to 36 V or dual supplies from ±1.5 V to ±18 V, providing flexibility across various designs. With a high slew rate of 22 V/µs and a gain bandwidth product of 16 MHz, it ensures rapid response and accurate signal amplification. The amplifier exhibits a low input offset voltage of 800 µV and minimal input bias current of 25 pA, enhancing precision in sensitive applications. Its rail-to-rail output swing maximizes dynamic range, making it suitable for low voltage operations. The device is housed in an 8-lead SOIC package, supporting surface mount technology for efficient assembly. Operating over a temperature range of -40°C to +85°C, the AD823ARZ-RL maintains consistent performance in diverse environmental conditions.

Applications

Battery-powered precision instrumentation
Photodiode preamplifiers
Active filters in signal processing
12-bit to 16-bit data acquisition systems
Medical instrumentation requiring low noise and high precision

Product Overview

The AD823ARZ-RL from Analog Devices Inc. is engineered to deliver high-speed, low-power performance in precision amplification tasks. Its dual-channel configuration allows for simultaneous signal processing, making it ideal for applications requiring multiple amplification stages. The JFET input stage provides high impedance and low noise, essential for interfacing with high-impedance sources like sensors and transducers. The amplifier’s rail-to-rail output capability ensures full-scale output voltage swing, optimizing signal utilization in low voltage systems. Its low input offset voltage and bias current contribute to accurate and stable operation, crucial for precision measurement systems. The AD823ARZ-RL’s versatility, combined with its robust performance characteristics, makes it a preferred choice for designers seeking reliable and efficient operational amplifiers in advanced electronic systems.
