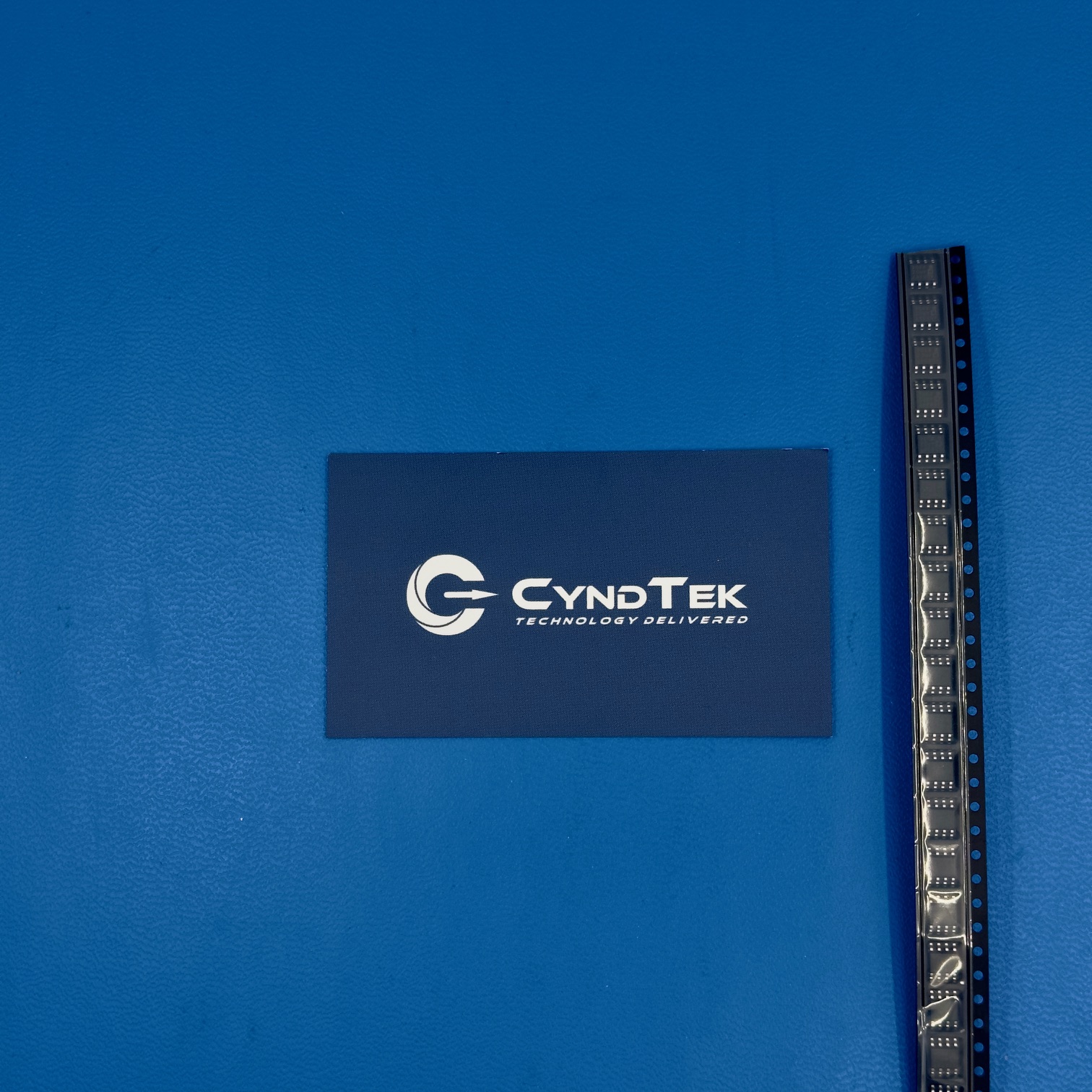

AD8397ARDZ Specifications
Manufacturer: Analog Devices
Part Number: AD8397ARDZ
Product Type: Dual Operational Amplifier
Amplifier Type: High Output Current
Number of Channels: 2
Supply Voltage Range: 3 V to 12 V
Output Current: High Drive Capability
Slew Rate: High Speed
Gain Bandwidth Product: Wideband
Package Type: 8-Lead SOIC
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
Compliance: RoHS Compliant
Packaging: Factory
Key Features
The AD8397ARDZ is a high output current dual operational amplifier designed for demanding signal drive applications. It provides two independent amplifier channels within a compact SOIC package. Additionally, its wide supply voltage range supports flexible analog system design. The high slew rate and wide bandwidth enable accurate signal reproduction. Because it offers strong output drive capability, it supports low impedance loads effectively. As a result, it delivers reliable analog performance in both commercial and industrial electronics.
Applications
Audio amplification circuits
Active filter designs
Line driver stages
Data acquisition systems
Industrial control electronics
Signal conditioning modules
Portable instrumentation
Communication interface circuits
Product Overview
The AD8397ARDZ from Analog Devices delivers robust dual-channel amplification in a compact surface mount format. First, its high output current capability supports demanding load conditions. Furthermore, the wide bandwidth design ensures precise signal integrity across frequency ranges. Because it operates from low supply voltages, it integrates easily into portable and embedded systems.
Moreover, the dual amplifier configuration reduces board space and simplifies layout. In addition, the SOIC package supports automated assembly and efficient thermal performance. Therefore, it is suitable for both new product development and maintenance replacements. Overall, this dual operational amplifier provides high drive performance, compact integration, and dependable analog functionality.
