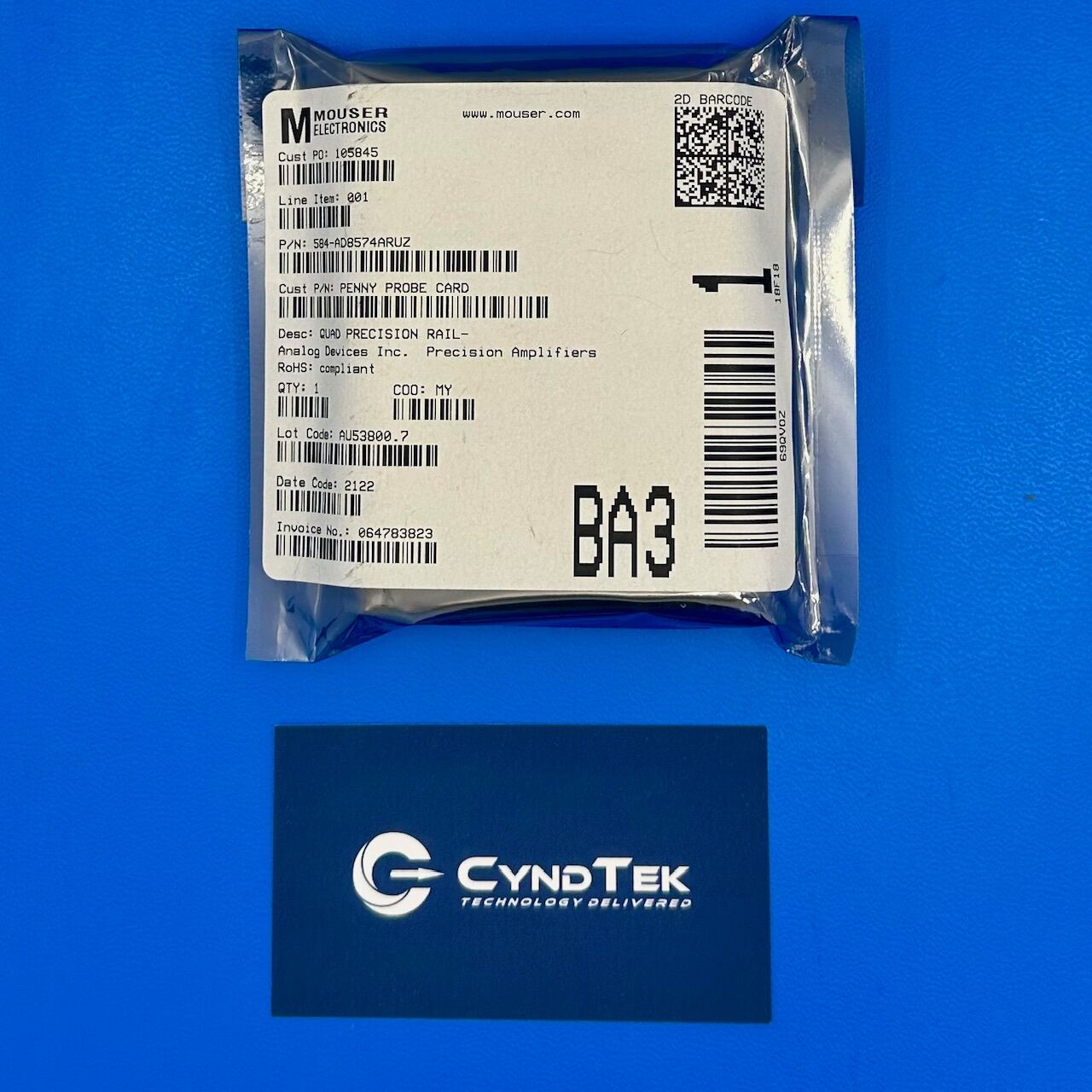

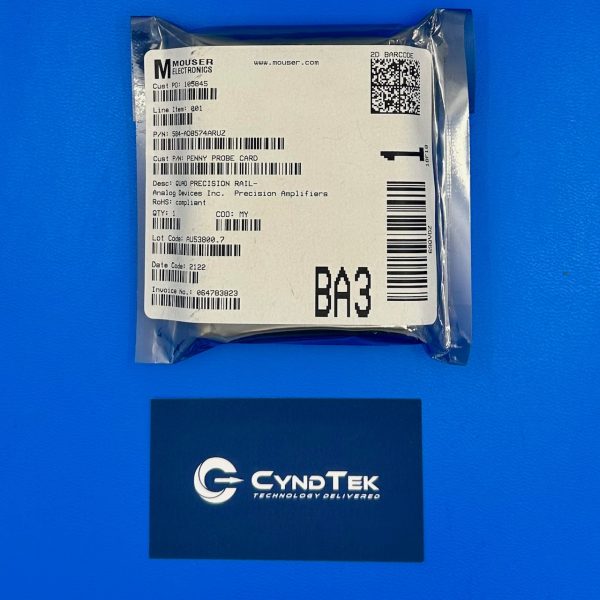

AD8574ARUZ Specifications
Manufacturer: Analog Devices
Part Number: AD8574ARUZ
Product Type: Operational amplifier
Amplifier Type: Zero-drift, precision
Number of Channels: 4 channels
Input Offset Voltage: Very low, auto-zero architecture
Input Bias Current: Low
Gain Bandwidth Product: 1 MHz typical
Slew Rate: 0.3 V per microsecond typical
Supply Voltage Range: 2.7 V to 5.5 V
Output Type: Rail-to-rail
Package Type: TSSOP
Mounting Type: Surface mount
Operating Temperature Range: -40 °C to +125 °C
Key Features
The AD8574ARUZ delivers stable precision performance using a zero-drift architecture. Additionally, the quad-channel design supports compact multi-signal systems. Moreover, rail-to-rail operation maximizes dynamic range at low supply voltages. Furthermore, low offset and drift improve long-term measurement accuracy.
Applications
Precision sensor signal conditioning
Low-level signal amplification
Industrial process control
Data acquisition front ends
Battery-powered instrumentation
Medical monitoring equipment
Portable measurement devices
Calibration and reference circuits
Product Overview
The Analog Devices AD8574ARUZ is a quad zero-drift operational amplifier designed for high-accuracy applications. Specifically, it minimizes offset voltage and long-term drift through auto-zero operation. As a result, measurement accuracy remains stable over temperature and time. Moreover, the low supply voltage range supports modern low-power systems. Therefore, it integrates easily into battery-powered designs.
In addition, the rail-to-rail input and output stages allow full signal swing at reduced supply levels. Furthermore, the 1 MHz gain bandwidth supports a wide range of precision amplification tasks. Consequently, designers can balance accuracy and responsiveness. Because of the quad-channel configuration, board space is conserved while functionality increases. As a result, system layouts remain compact and efficient.
The TSSOP package supports automated assembly and high-density PCB layouts. Moreover, surface mount construction improves manufacturing consistency. Therefore, the AD8574ARUZ fits well in high-volume production. The extended operating temperature range also supports industrial environments. Consequently, long-term reliability is maintained.
Overall, this operational amplifier provides precision, stability, and integration efficiency. Therefore, it is well suited for instrumentation, sensing, and control applications requiring dependable low-offset performance.
