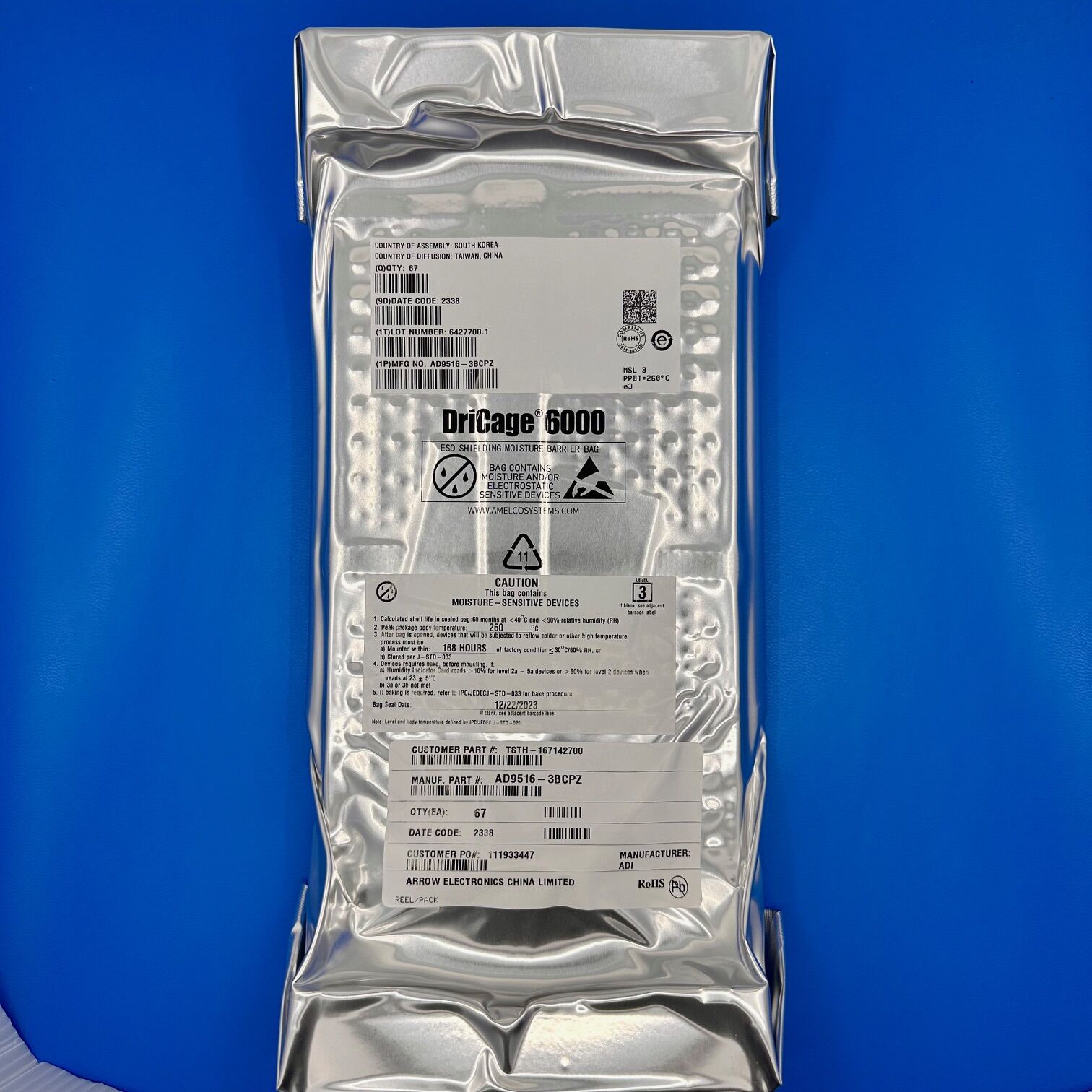

AD9516-3BCPZ

AD9516-3BCPZ

$9.00

IC CLOCK GENERATOR 64LFCSP
  • Manufacturer: Analog Devices Inc
  • Part Number: AD9516-3BCPZ
  • Packaging: Tray
  • Quantity: Each
  • Datecode: 2338

Availability: 79 in stock

Minus Quantity- Plus Quantity+
SKU TSX016A Category Brand:

AD9516-3BCPZ Specifications

Manufacturer: Analog Devices Inc.
Part Number: AD9516-3BCPZ
Product Type: Clock Generator with Integrated VCO
Number of Outputs: 14
Output Types: 6 LVPECL pairs, 4 LVDS pairs (reconfigurable to 8 CMOS outputs)
Maximum Output Frequency: LVPECL: 1.6 GHz; LVDS: 800 MHz; CMOS: 250 MHz
Input Frequency Range: Up to 2.4 GHz (external VCO/VCXO)
Integrated VCO Frequency Range: 1.75 GHz to 2.25 GHz
PLL: Yes
Reference Inputs: 1 differential or 2 single-ended
Supply Voltage: 3.135V to 3.465V
Operating Temperature Range: -40°C to +85°C
Package / Case: 64-LFCSP (9mm x 9mm)
Mounting Type: Surface Mount
RoHS Status: RoHS Compliant

Key Features

The AD9516-3BCPZ is a versatile clock generator featuring an integrated voltage-controlled oscillator (VCO) that tunes from 1.75 GHz to 2.25 GHz. It offers 14 outputs, including six LVPECL pairs capable of frequencies up to 1.6 GHz, and four LVDS pairs that can be reconfigured as eight CMOS outputs, supporting up to 800 MHz and 250 MHz respectively. The device supports both internal and external VCO/VCXO inputs, providing flexibility in clock generation. With low phase noise and sub-picosecond jitter performance, it is well-suited for applications requiring precise timing.

Applications

Low jitter, low phase noise clock distribution
Networking line cards, including SONET and Synchronous Ethernet
Clocking high-speed ADCs and DACs
Wireless base stations
Test and measurement equipment
High-performance wireless transceivers

Product Overview

The AD9516-3BCPZ is designed to provide high-performance clock distribution with low jitter and phase noise, essential for optimizing data converter performance. Its integrated VCO and flexible output configurations make it adaptable to various system requirements. The device’s ability to accept external VCO/VCXO inputs up to 2.4 GHz enhances its versatility. Operating from a 3.3V supply and housed in a compact 64-LFCSP package, it is suitable for space-constrained applications. The AD9516-3BCPZ’s robust feature set and performance make it a reliable choice for demanding clocking applications.
