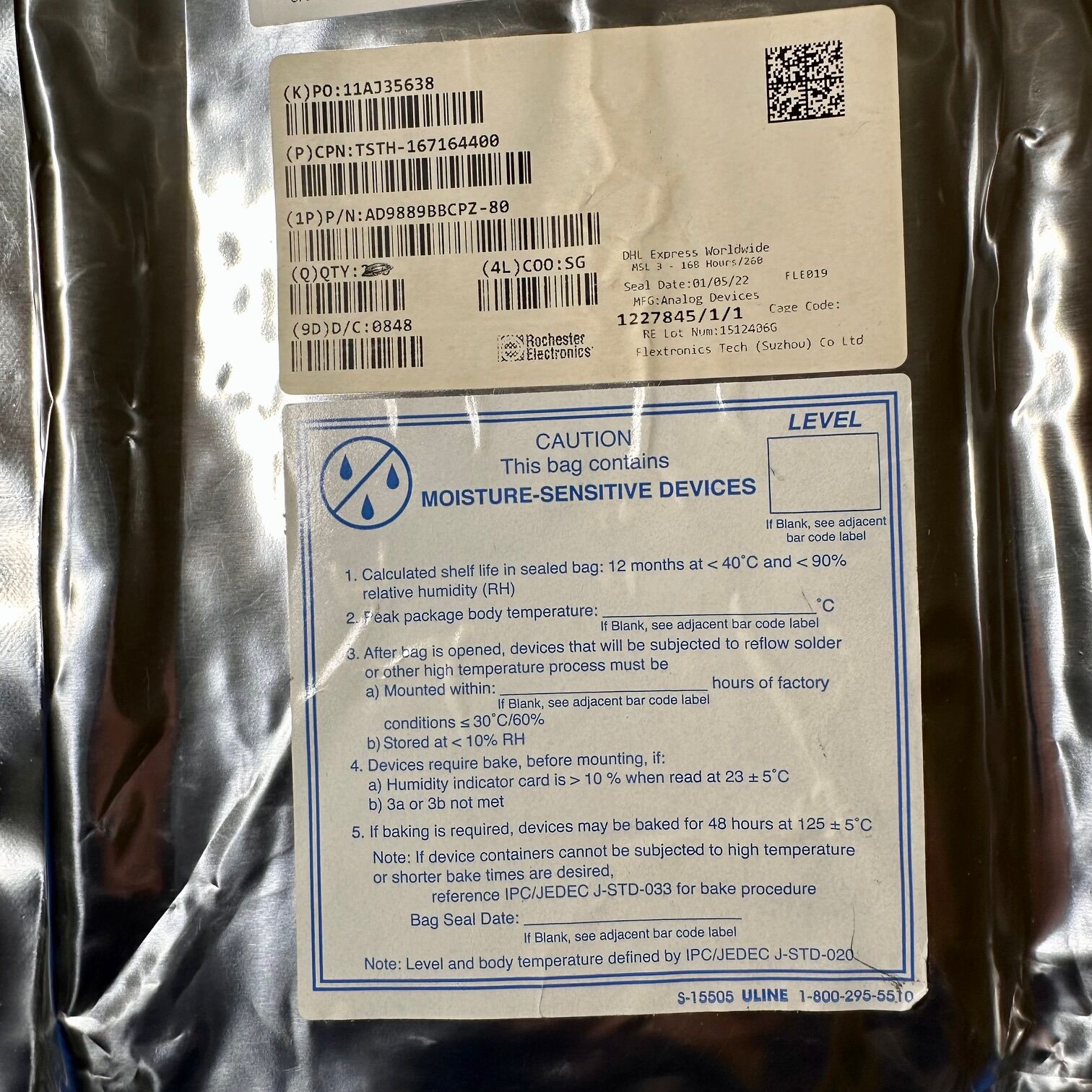

AD9889BBCPZ-80

AD9889BBCPZ-80 Specifications

Manufacturer: Analog Devices
Part Number: AD9889BBCPZ-80
Product Type: HDMI Transmitter
Interface Type: I²C
Data Rate: Up to 1.65 Gbps per channel
Resolution Support: Up to UXGA (1600 x 1200) or 1080p
Operating Voltage Range: 1.8V (Core), 3.3V (I/O)
Input Format: RGB or YCbCr, 24-bit
Audio Support: Up to 8 channels of I²S, SPDIF
HDCP Support: Yes (v1.1 compliant)
Package / Case: 64-LFCSP
Mounting Type: Surface Mount
Operating Temperature Range: -25°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The AD9889BBCPZ-80 is a high-definition HDMI transmitter designed by Analog Devices for multimedia applications requiring high-resolution video and audio output. It supports both RGB and YCbCr video inputs with 24-bit color depth and includes integrated HDCP encryption. The device offers up to 1.65 Gbps data rates per TMDS channel, enabling 1080p and UXGA resolution support. In addition, the transmitter supports multi-channel audio through I²S or SPDIF inputs. With a small 64-LFCSP surface-mount package and low power operation, it is ideal for compact digital systems.

Applications

Digital TVs and monitors
Home theater systems
AV receivers
DVD and Blu-ray players
Game consoles and set-top boxes
Multimedia projectors

Product Overview

The AD9889BBCPZ-80 is a feature-rich HDMI transmitter built for delivering high-resolution video and audio over a single cable. It supports HDCP encryption, ensuring secure content transmission for protected digital media. With support for up to UXGA or 1080p resolutions, the device is a perfect fit for modern entertainment and display systems. It handles RGB and YCbCr video formats with 24-bit precision and accepts up to eight channels of I²S audio. Moreover, the transmitter is easy to configure via its I²C interface, streamlining system integration. Housed in a compact 64-LFCSP package, it meets the needs of space-sensitive applications without compromising performance. Overall, the AD9889BBCPZ-80 is a versatile and reliable solution for HDMI transmission in a wide range of consumer and professional products.
