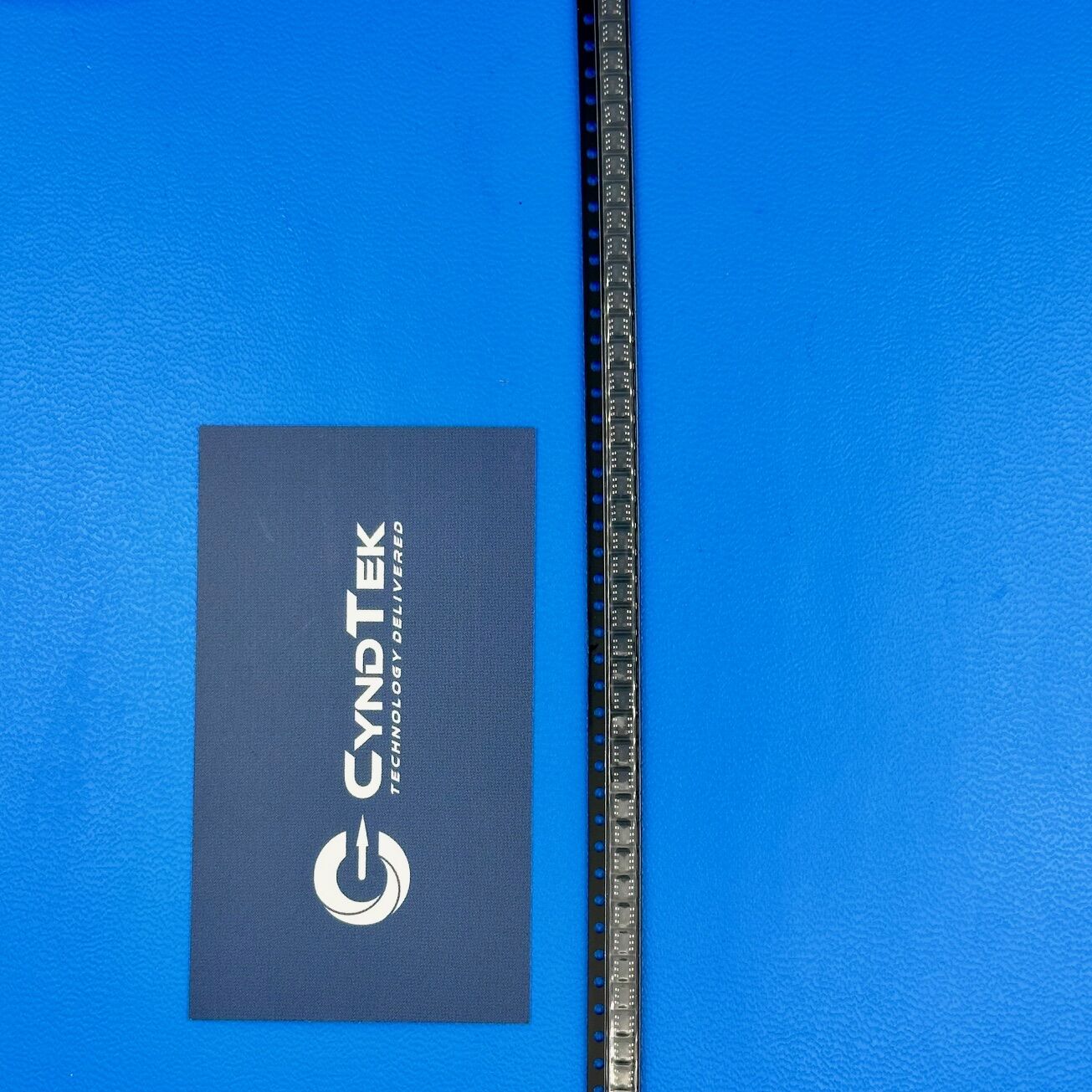

ADA4860-1YRJZ-RL7

ADA4860-1YRJZ-RL7 Specifications

Manufacturer: Analog Devices
Part Number: ADA4860-1YRJZ-RL7
Product Type: High-Speed, Low-Cost Operational Amplifier
Architecture: Current Feedback
Bandwidth (-3 dB): 800 MHz
Slew Rate: 790 V/μs
Settling Time (to 0.5%): 8 ns
Supply Voltage Range: +5 V to ±5 V
Supply Current: 6 mA
Output Current: 25 mA
Differential Gain: 0.02%
Differential Phase: 0.02°
Input Offset Voltage: 3.5 mV (typical)
Power-Down Current: 0.25 mA
Package / Case: 6-Lead SOT-23
Operating Temperature Range: -40°C to +105°C
RoHS Status: RoHS Compliant

Key Features

The ADA4860-1YRJZ-RL7 is a high-speed, low-cost current feedback operational amplifier from Analog Devices. It offers an 800 MHz bandwidth and a 790 V/μs slew rate, making it suitable for high-speed applications. The amplifier operates on supply voltages ranging from +5 V to ±5 V, consuming only 6 mA of current. It features a power-down function that reduces the supply current to 0.25 mA when not in use. With a low input offset voltage of 3.5 mV and the ability to drive output currents up to 25 mA, this amplifier ensures accurate signal amplification. Its differential gain and phase errors are minimal at 0.02% and 0.02°, respectively, making it ideal for video applications. The device is housed in a compact 6-lead SOT-23 package, suitable for space-constrained designs.

Applications

Consumer and professional video equipment requiring high-speed signal processing
Broadband video systems needing low distortion amplification
Analog-to-digital converter (ADC) buffering in high-frequency applications
Active filter implementations in communication systems
General-purpose high-speed analog signal amplification

Product Overview

Analog Devices’ ADA4860-1YRJZ-RL7 is engineered for high-speed, low-power applications requiring precise signal amplification. Its current feedback architecture provides an 800 MHz bandwidth and a 790 V/μs slew rate, ensuring rapid and accurate signal processing. The amplifier’s low differential gain and phase errors make it particularly suitable for video applications where signal integrity is critical. Operating over a wide supply voltage range and featuring a power-down mode, it offers flexibility and energy efficiency. The compact SOT-23 package allows for easy integration into various circuit designs, especially where space is limited. Overall, the ADA4860-1YRJZ-RL7 combines high performance with cost-effectiveness, making it a valuable component in numerous high-speed analog applications.
