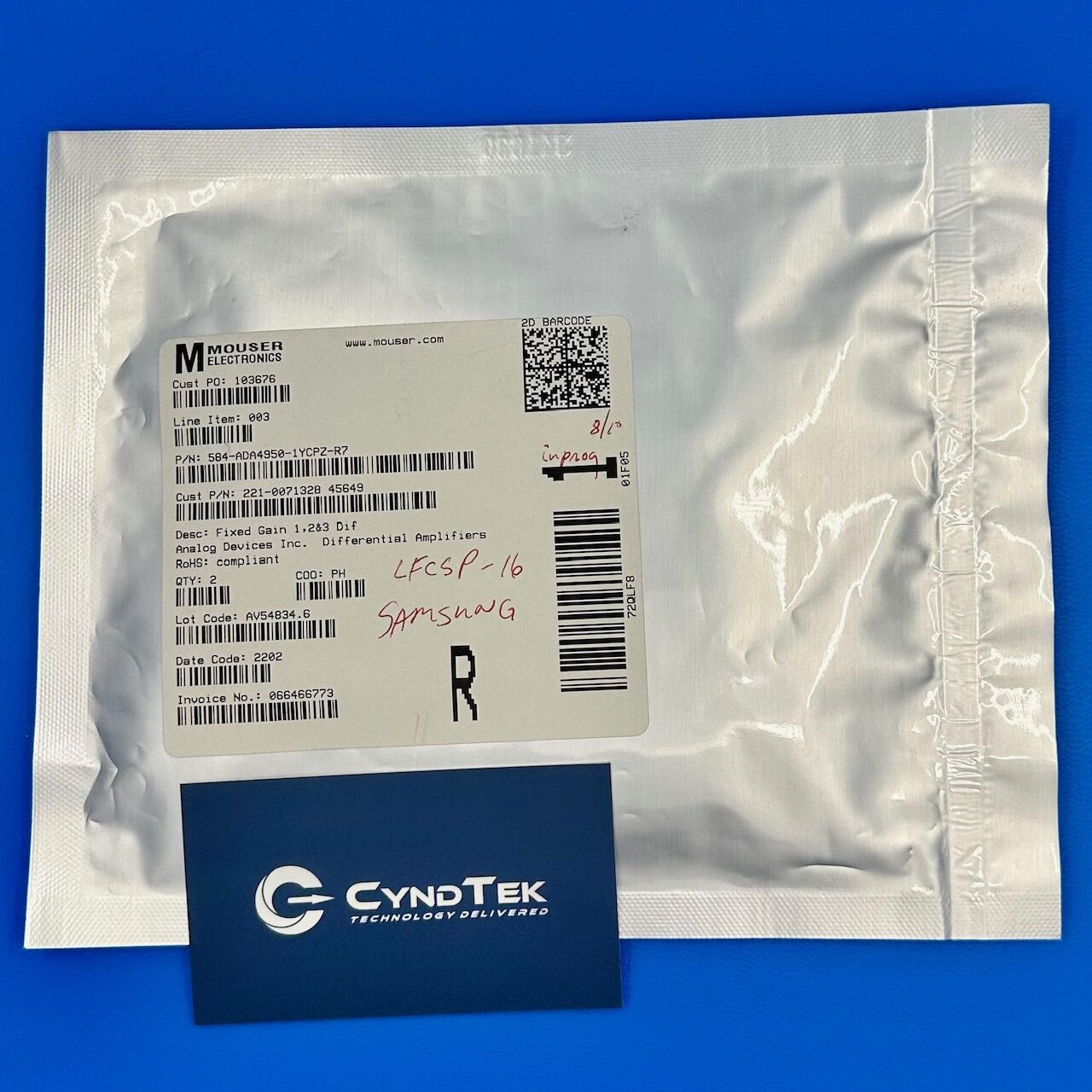

ADA4950-1YCPZ-R7 Specifications
Manufacturer: Analog Devices Inc.
Type: Selectable-gain differential ADC driver amplifier
Number of Channels: 1
Gain Options: 1, 2, or 3 (selectable)
-3 dB Bandwidth: 750 MHz (typical)
Slew Rate: 2900 V/µs (typical)
Settling Time: 9 ns to 0.1% (typical)
Supply Voltage Range: 3 V to 11 V (single supply span)
Supply Current: 9.5 mA (typical)
Input Offset Voltage: 0.2 mV (typical)
Output Current: 114 mA (typical)
Package: 16-lead LFCSP-VQ, 3 mm x 3 mm, exposed pad
Mounting Type: Surface mount
Operating Temperature: -40 C to +105 C
Key Features:
ADA4950-1YCPZ-R7 is built for clean, fast differential signal paths. It offers selectable gains, strong dynamic performance, and quick settling. As a result, it pairs well with high-speed ADC inputs. It also supports compact layouts thanks to its small LFCSP package.
Applications:
High-speed ADC input driver stages
IF sampling and baseband signal chains
Differential buffering for data acquisition modules
Wideband instrumentation front ends
High-speed communications receiver paths
Product Overview:
ADA4950-1YCPZ-R7 is a low-power differential driver that simplifies ADC interfacing. It can convert and condition signals while keeping distortion low. Also, the selectable gain options help you tune amplitude without changing the signal chain. Meanwhile, the wide bandwidth supports fast sampling systems. In addition, the quick settling time improves step response in pulsed measurements. Therefore, it fits mixed-signal boards that need speed and accuracy in a small footprint.
Contact Us:
For pricing, lead time, and availability for ADA4950-1YCPZ-R7, contact Cyndtek. Email Sales@Cyndtek.com to request a quote and confirm your build requirements.
For additional available stock, browse our full inventory.
