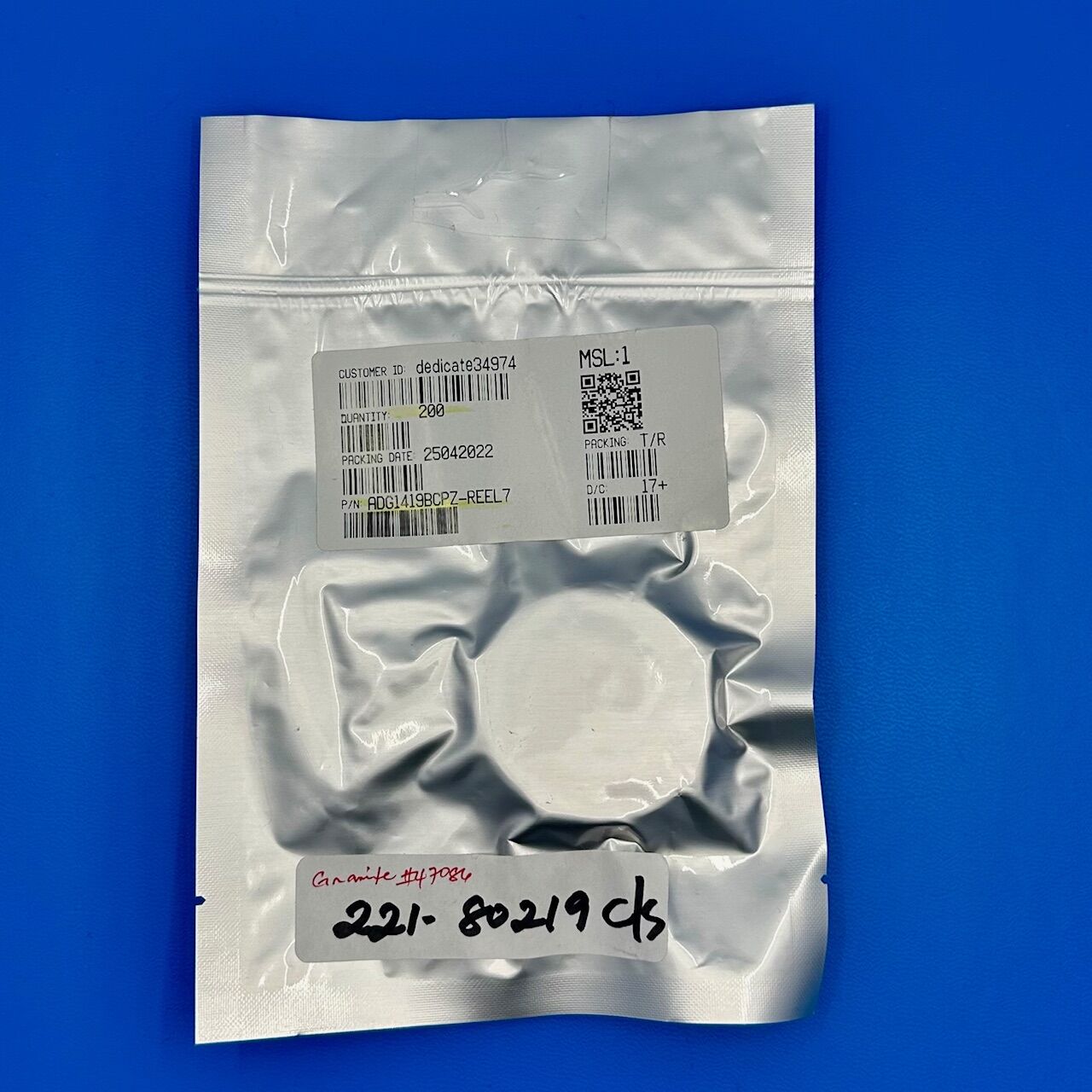

ADG1419BCPZ-REEL7 Specifications
Manufacturer: Analog Devices
Part Type: CMOS Analog Switch
Configuration: Single-Pole, Single-Throw (SPST-NC)
Switch Type: Normally Closed
On-State Resistance (RON): 1.6 Ω (typical)
Supply Voltage Range: 3 V to 16 V (±5 V to ±8 V bipolar)
Input Voltage Range: 0 V to VDD
Bandwidth: 160 MHz (typical)
Charge Injection: 2 pC (typical)
Operating Temperature Range: -40°C to +125°C
Package Type: LFCSP-10 (3 mm × 3 mm)
Mounting Type: Surface Mount
Break-Before-Make: Yes
Leakage Current: <1 nA (typical)
RoHS Compliant: Yes
Key Features
The ADG1419BCPZ-REEL7 is a high-performance SPST analog switch that features a low on-resistance and wide signal bandwidth. This normally closed switch supports both single-supply and dual-supply operation, offering flexible integration into a variety of analog and mixed-signal designs. Its low charge injection and ultra-low leakage current help maintain signal integrity, while the break-before-make switching enhances reliability. With support for up to 16 V single-supply or ±8 V bipolar systems, the device suits precision and high-voltage applications.
Applications
Data acquisition systems
Test and measurement instruments
Audio and video signal routing
Industrial process control
Medical imaging systems
Analog signal multiplexing
Sensor calibration switching
Instrumentation amplifiers
Power line monitoring circuits
Battery management systems
Product Overview
The ADG1419BCPZ-REEL7 is designed to handle high-speed, low-distortion analog signals with minimal power loss and excellent switching performance. Its normally closed configuration makes it ideal for fail-safe or default-on designs. With a 160 MHz signal bandwidth and low RON, it minimizes signal attenuation and distortion. This switch also offers low charge injection and near-zero leakage, making it highly reliable for precision circuits. The compact LFCSP-10 package provides a space-efficient footprint without compromising performance, making it suitable for space-constrained and high-density designs.
