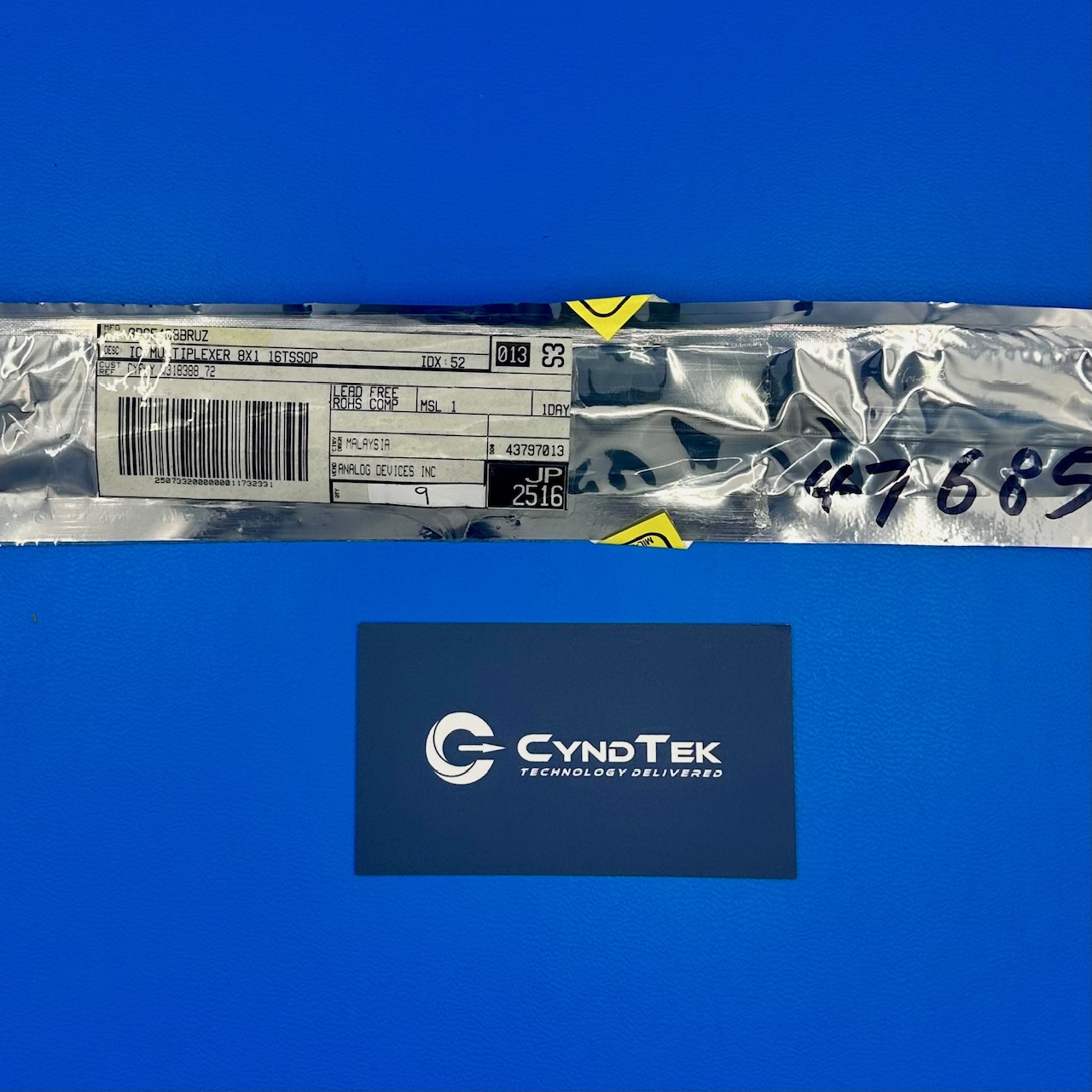

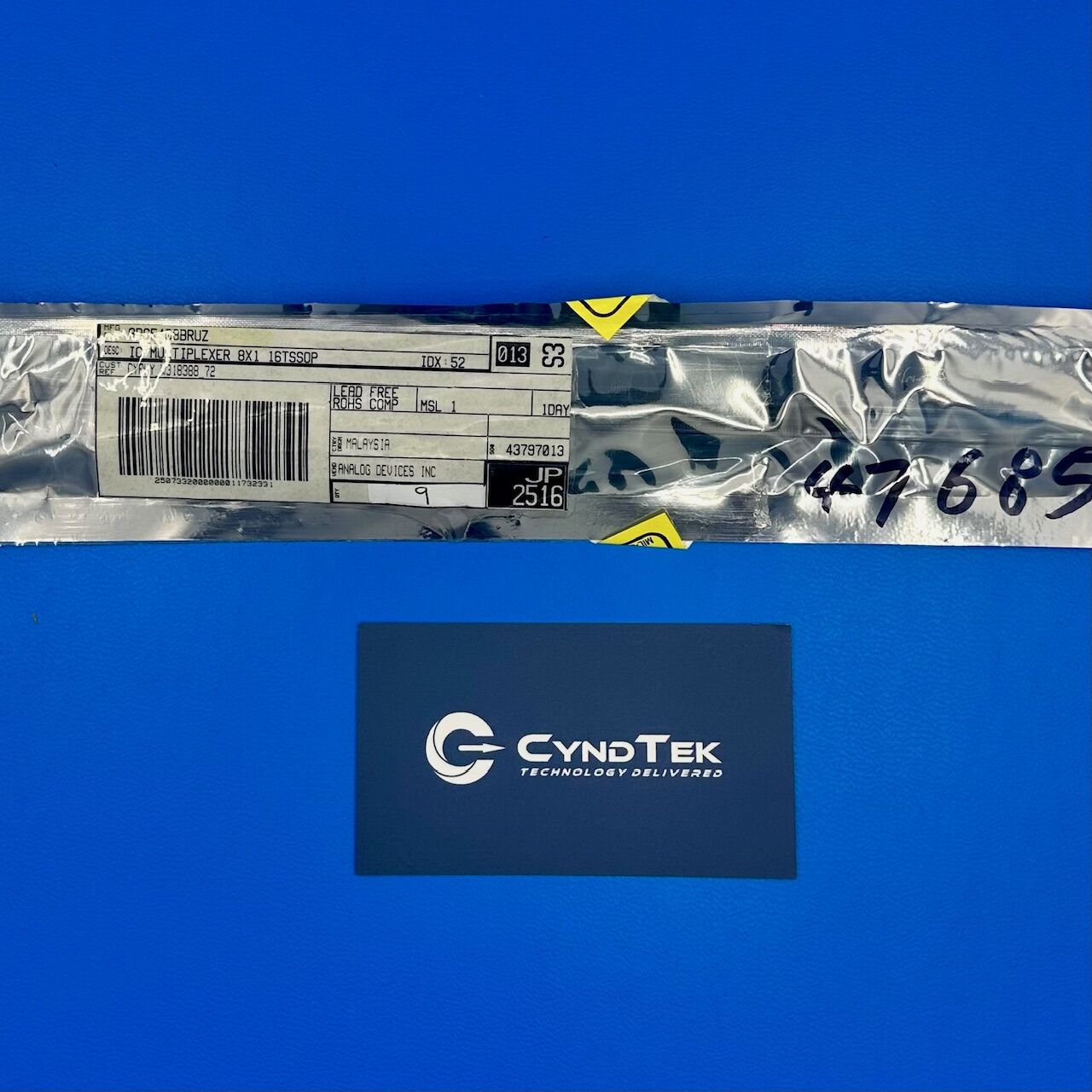

ADG5408BRUZ Specifications
Manufacturer: Analog Devices
Product Category: Semiconductor
Switch Type: 8-Channel CMOS Analog Switch Array
Control Logic: CMOS logic-level digital control
On-Resistance (Typical): 4 Ω
Supply Voltage: Single 5 V or dual ±5 V operation
Switch Configuration: 8 independent SPST switches
Control Inputs: Logic-level enable/disable
Package / Case: TSSOP / SSOP surface mount
Operating Temperature Range: –40 °C to +85 °C
Mounting Type: Surface Mount (SMT)
Category: Semiconductor
Key Features:
Moreover, the ADG5408BRUZ offers eight independent low-on-resistance CMOS switches that support flexible signal routing. Additionally, its low on-resistance helps maintain signal fidelity across analog and digital paths. Also, the logic-level control inputs reduce design complexity and support easier interfacing with controllers. Furthermore, operation from single or dual supplies lets designers match power rails to system requirements. Finally, the compact surface-mount package suits dense board layouts.
Applications:
Signal routing in mixed-signal systems
Analog and digital multiplexing paths
Sensor array switching
Communication and test equipment switching
Portable and handheld instrumentation
Product Overview:
The ADG5408BRUZ from Analog Devices is an 8-channel CMOS analog switch array designed to simplify signal routing in modern electronics. Consequently, it integrates eight independent SPST switches that deliver low on-resistance and minimal signal distortion. Moreover, the device accepts logic-level digital control signals, which reduces the need for complex driver circuitry. Also, designers can choose between single 5 V or dual ±5 V supply operation to match their system power architecture. Furthermore, the compact surface-mount package supports efficient use of PCB real estate in space-constrained designs. Therefore, engineers can apply this device in both analog and digital domains where dependable switching is critical. In addition, its broad temperature range supports use in commercial and industrial environments.
