ADN4600ACPZ

ADN4600ACPZ

$20.00

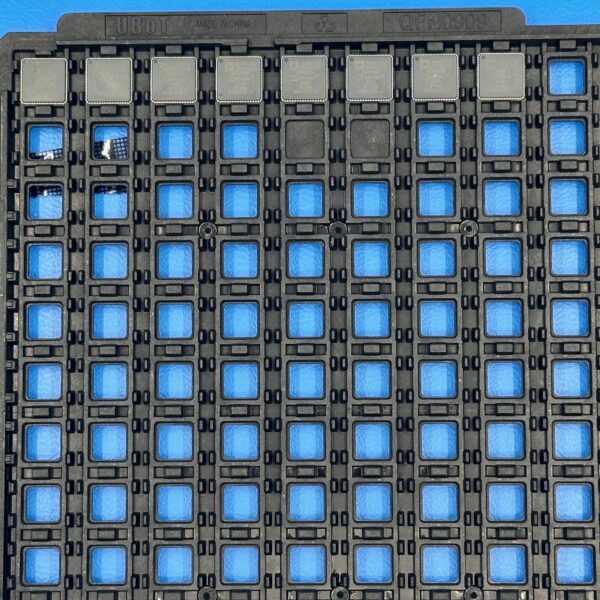

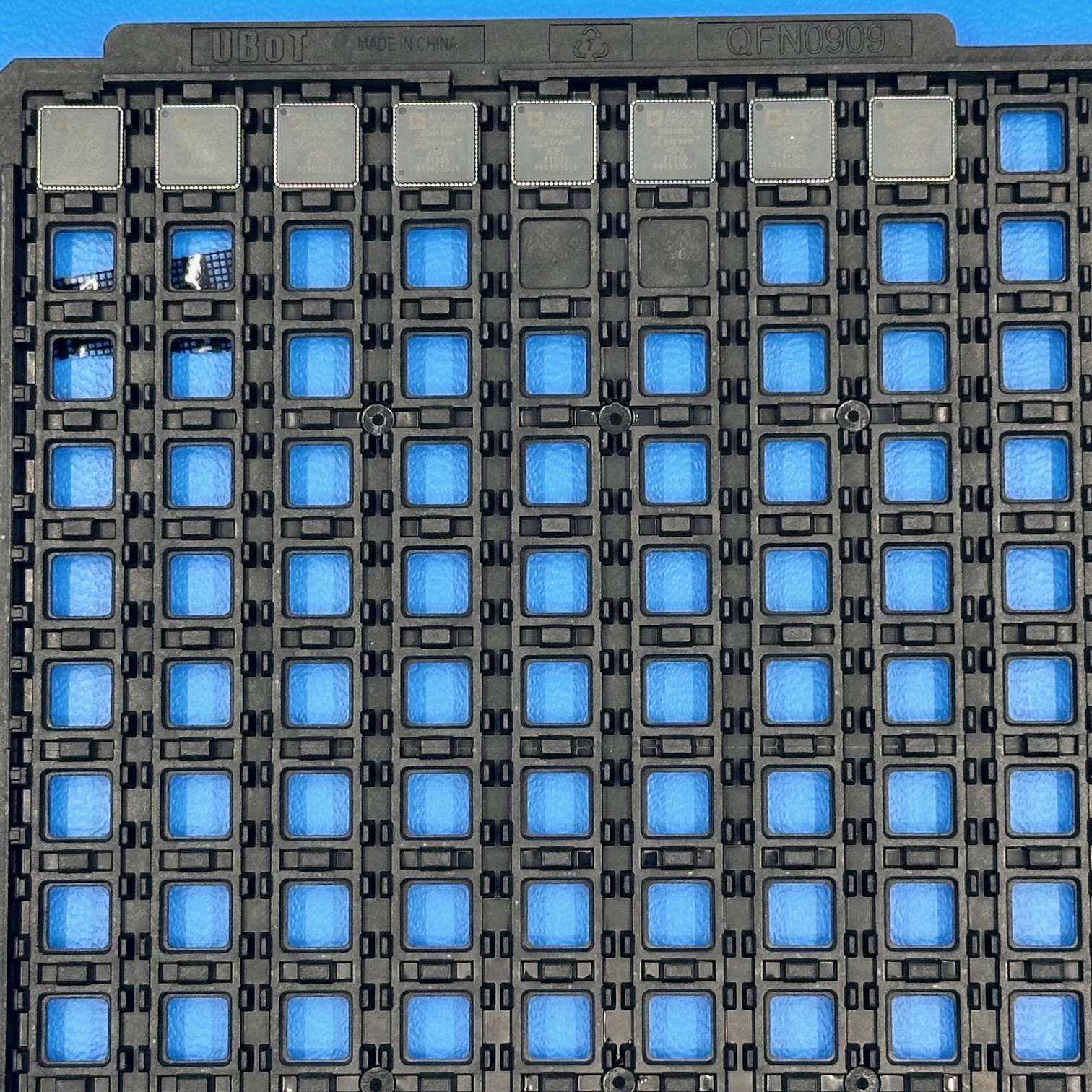

IC CROSSPOINT SW 1 X 8:8 64LFCSP
  • Manufacturer: Analog Devices Inc
  • Part Number: ADN4600ACPZ
  • Packaging: Tray
  • Quantity: Each
  • Datecode: 1905

Availability: 8 in stock

SKU TSX055B Category Brand:

ADN4600ACPZ Specifications

Manufacturer: Analog Devices
Part Number: ADN4600ACPZ
Product Type: Digital Crosspoint Switch
Configuration: 8 × 8 Nonblocking Matrix
Data Rate: Up to 4.25 Gbps per channel
Input Compatibility: Differential PECL-/CML-compatible with equalization
Output Type: Differential CML with programmable levels and de-emphasis
Control Interface: I²C
Supply Voltage: 1.7 V to 3.6 V
Power Consumption: Approx. 125 mW per channel at 4.25 Gbps
Package / Case: 64-lead LFCSP, 9 mm × 9 mm
Operating Temperature Range: −40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The ADN4600ACPZ is an 8 × 8 high-speed digital crosspoint switch developed for low-latency, high-bandwidth signal routing. It supports serial data rates up to 4.25 Gbps per lane, making it ideal for fast communication links. Its integrated equalization compensates for signal loss in long PCB traces, maintaining signal integrity even over 30 inches of FR4 material. Output channels include programmable pre-emphasis and de-emphasis to match transmission characteristics. Moreover, the device is controlled via an I²C interface, enabling precise configuration of signal paths. Because it is built in a compact 64-lead LFCSP and operates over industrial temperature ranges, it meets strict performance and durability requirements in communication-intensive designs.

Applications

Signal switching in data center networking backplanes
High-speed signal routing in telecom switching equipment
HD video matrix control in broadcast infrastructure
Flexible channel control in test and measurement systems
Data aggregation in storage area network (SAN) arrays

Product Overview

The ADN4600ACPZ from Analog Devices offers a highly configurable solution for fast, nonblocking digital crosspoint switching. It delivers full 8 × 8 matrix functionality, allowing any input to route to any output without conflict. Its low power per channel and small footprint make it ideal for dense, high-speed systems. Additionally, advanced signal conditioning features like input equalization and output de-emphasis reduce signal degradation across long traces and connectors. Engineers implementing large-scale data systems rely on this device to support stable, high-throughput digital communication with minimal latency.
