ADS823E

ADS823E Specifications:

• Part Number: ADS823E
• Description: 10-Bit, 60-MSPS Analog-to-Digital Converter (ADC)
• RoHS: YES
• Lifecycle Status: EOL
• Part Type: ADC
• Product Family: Analog & Mixed Signal
• Base Part Number: ADS823
• EOL Date: 01/01/0001 00:00:00
• Mfr. Cage Code: TIS
• Rad Hard: Industrial
• Harmonized Code: 8542.39.0001
• Product Group: Data Converters
• Product Category: ADC

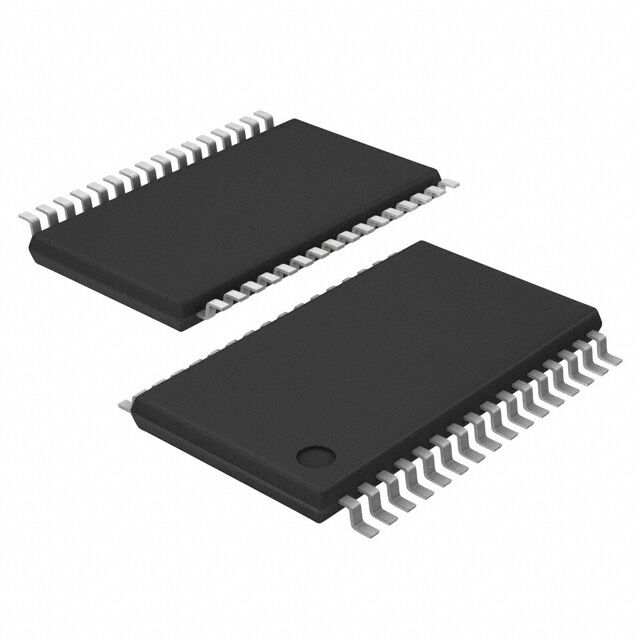

• Package: SSOP28
• Pin Count: 28

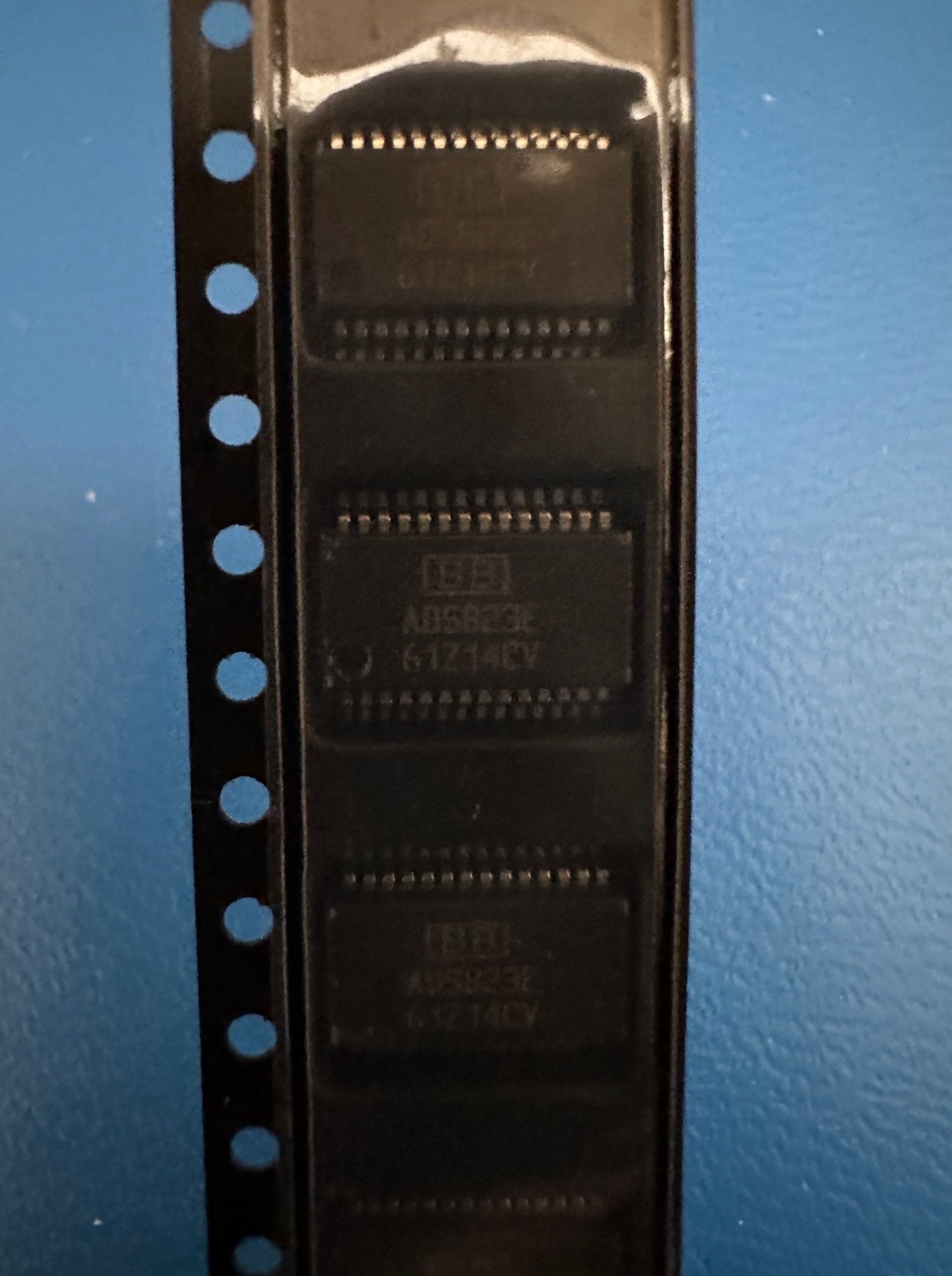

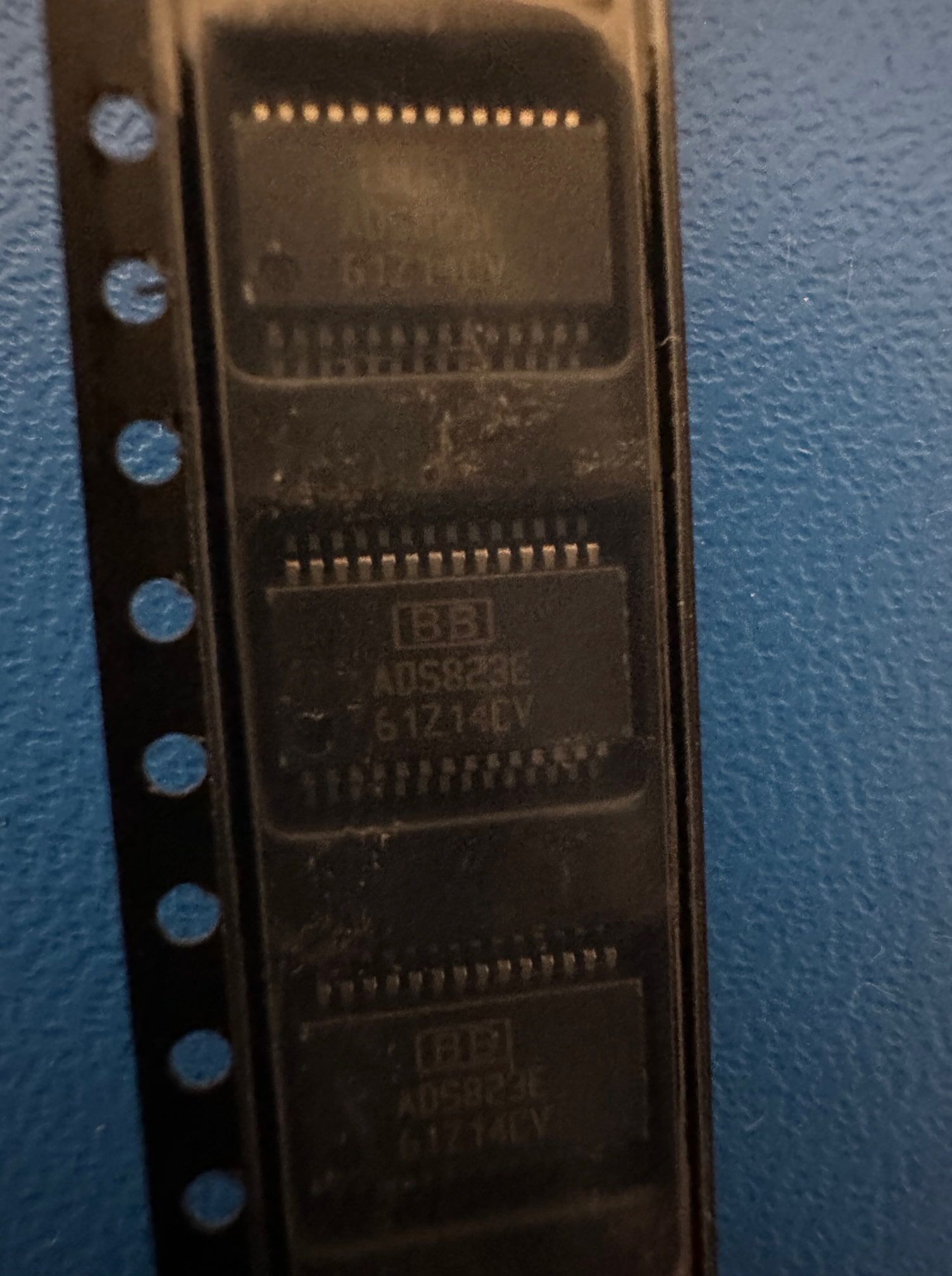

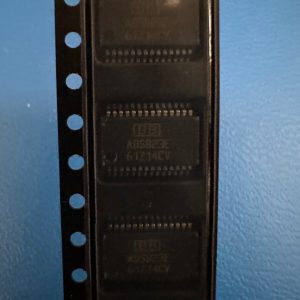

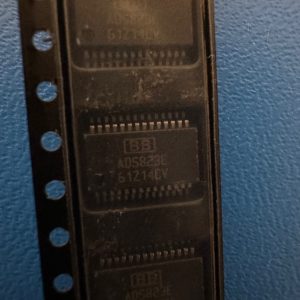

• Packaging Type: Cut Tape
• Lead Free: YES
• EU RoHS: YES
• China RoHS: N/A
• Manufacturer: Burr Brown/ Texas Instruments

Additional information:

The ADS823E is a cutting-edge pipeline CMOS Analog-to-Digital Converters (ADCs) engineered to function flawlessly on a single +5V power supply. These converters offer exceptional performance, especially with single-ended input, and can be seamlessly transitioned to operate with a differential input for enhanced spurious performance. Featuring a 10-bit quantizer, a high-bandwidth track-and-hold, and a highly accurate internal reference, these converters deliver superior accuracy and efficiency.

One of their standout features is the ability to disable the internal reference and use external references. This external reference option is particularly advantageous in multi-channel applications or scenarios where precise gain and offset matching are paramount. When deployed in applications requiring full-scale range adjustment, ADS823E offer unparalleled flexibility and reliability.

Key Features:

• Single +5V Power Supply: Operates efficiently with a single +5V power supply, ensuring energy efficiency and simplified power management.
• Versatile Input Options: Supports both single-ended and differential inputs, allowing users to optimize performance based on specific application requirements.
• High Precision: Equipped with a 10-bit quantizer and a high-bandwidth track-and-hold, ensuring accurate and reliable analog-to-digital conversion.
• Internal and External Reference: Allows users to choose between the internal reference for standard operations and external references for applications requiring gain and offset matching or full-scale range adjustments.
• Multi-Channel Compatibility: Ideal for multi-channel applications, enabling seamless integration into complex systems where precision across multiple channels is crucial.
• Robust Design: Built with robust CMOS technology, ensuring durability, stability, and high-performance capabilities even in demanding operating conditions.
