ADS825E/1K

ADS825E/1K

$7.50

IC ADC 10BIT PIPELINED 28SSOP T/R
  • Manufacturer: Texas Instruments
  • Part Number: ADS825E/1K

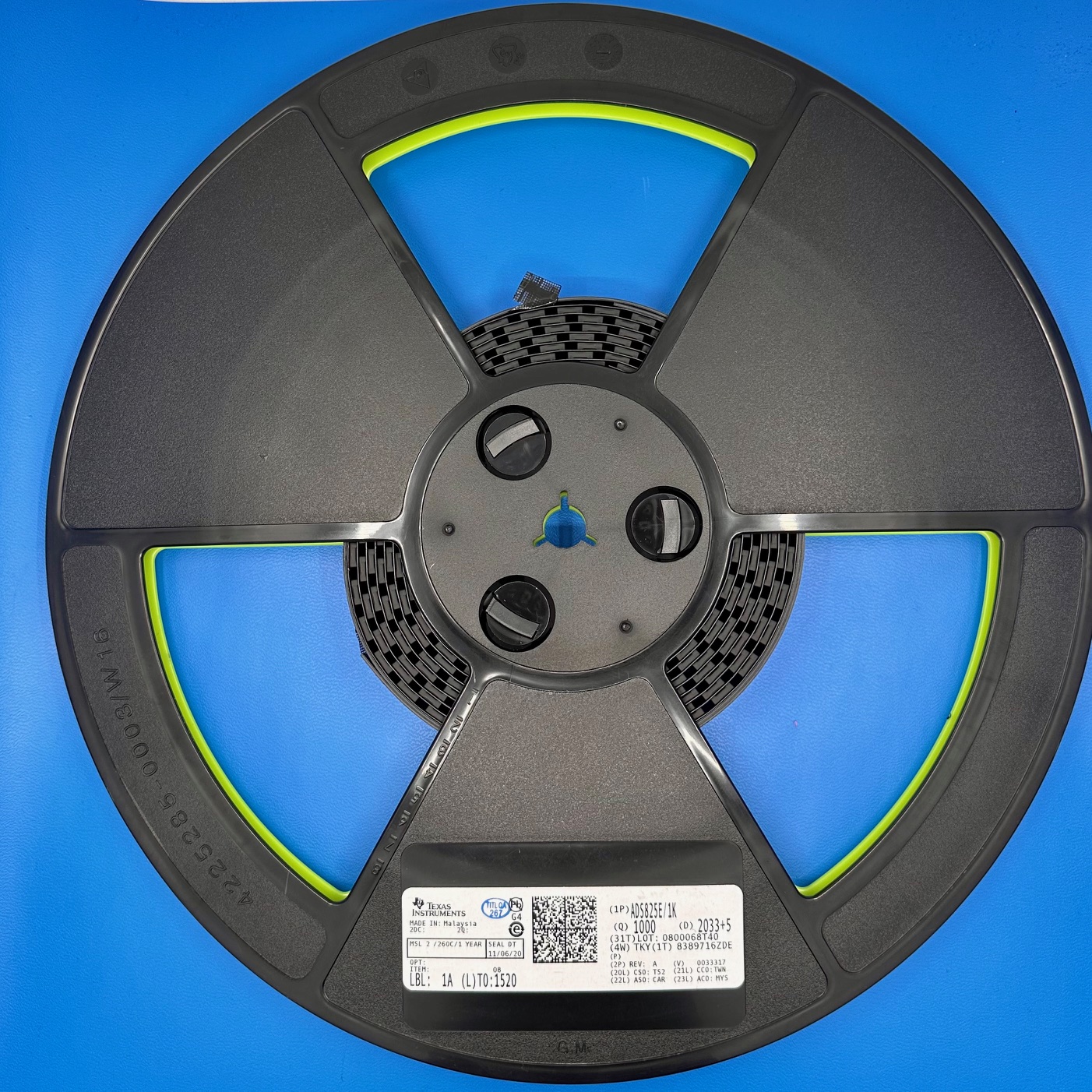

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2033

Availability: 207 in stock

SKU TSX032B Category Brand:

ADS825E/1K Specifications

Manufacturer: Texas Instruments
Part Number: ADS825E/1K
Product Type: 10-Bit, 40-MSPS Analog-to-Digital Converter (ADC)
Resolution: 10 bits
Sampling Rate (Max): 40 MSPS
Input Type: Single-Ended or Differential
Reference: Internal or External
Power Supply: +5 V
Power Consumption: 265 mW (typical)
Data Interface: Parallel
Package / Case: 28-SSOP
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The ADS825E/1K is a high-speed CMOS ADC designed for precision conversion of analog signals to digital data. Operating at sampling rates up to 40 MSPS, it offers a 10-bit resolution suitable for applications requiring accurate and rapid data acquisition. The device supports both single-ended and differential inputs, providing flexibility in interfacing with various signal sources. An internal reference simplifies design, while the option for an external reference allows for customized calibration. Consuming typically 265 mW of power, the ADS825E/1K balances performance with energy efficiency. Its parallel data interface ensures quick data transfer, and the 28-SSOP package facilitates compact and reliable surface-mount assembly. The ADC operates reliably over a temperature range of -40°C to +85°C and complies with RoHS standards, ensuring environmental responsibility.

Applications

Medical imaging equipment
Communication systems
Video processing
Test and measurement instruments
Radar and sonar systems

Product Overview

The ADS825E/1K from Texas Instruments delivers high-speed, accurate analog-to-digital conversion for demanding applications. Its 10-bit resolution and 40 MSPS sampling rate make it ideal for systems requiring precise and rapid signal processing. The flexibility of input configurations, along with internal and external reference options, allows for seamless integration into diverse designs. With a typical power consumption of 265 mW, it supports energy-efficient operation without compromising performance. The parallel data interface enables swift data handling, essential for high-throughput systems. Packaged in a 28-SSOP, the ADS825E/1K supports space-constrained applications and ensures robust surface-mount installation. Compliance with RoHS standards underscores its suitability for environmentally conscious projects. Overall, the ADS825E/1K is a reliable choice for engineers seeking a high-performance ADC for critical applications.
