ADT7476ARQZ-REEL

ADT7476ARQZ-REEL

$1.00

IC REMOTE THERMAL CTRR 24QSOP T/R
  • Manufacturer: ONSEMI
  • Part Number: ADT7476ARQZ-REEL

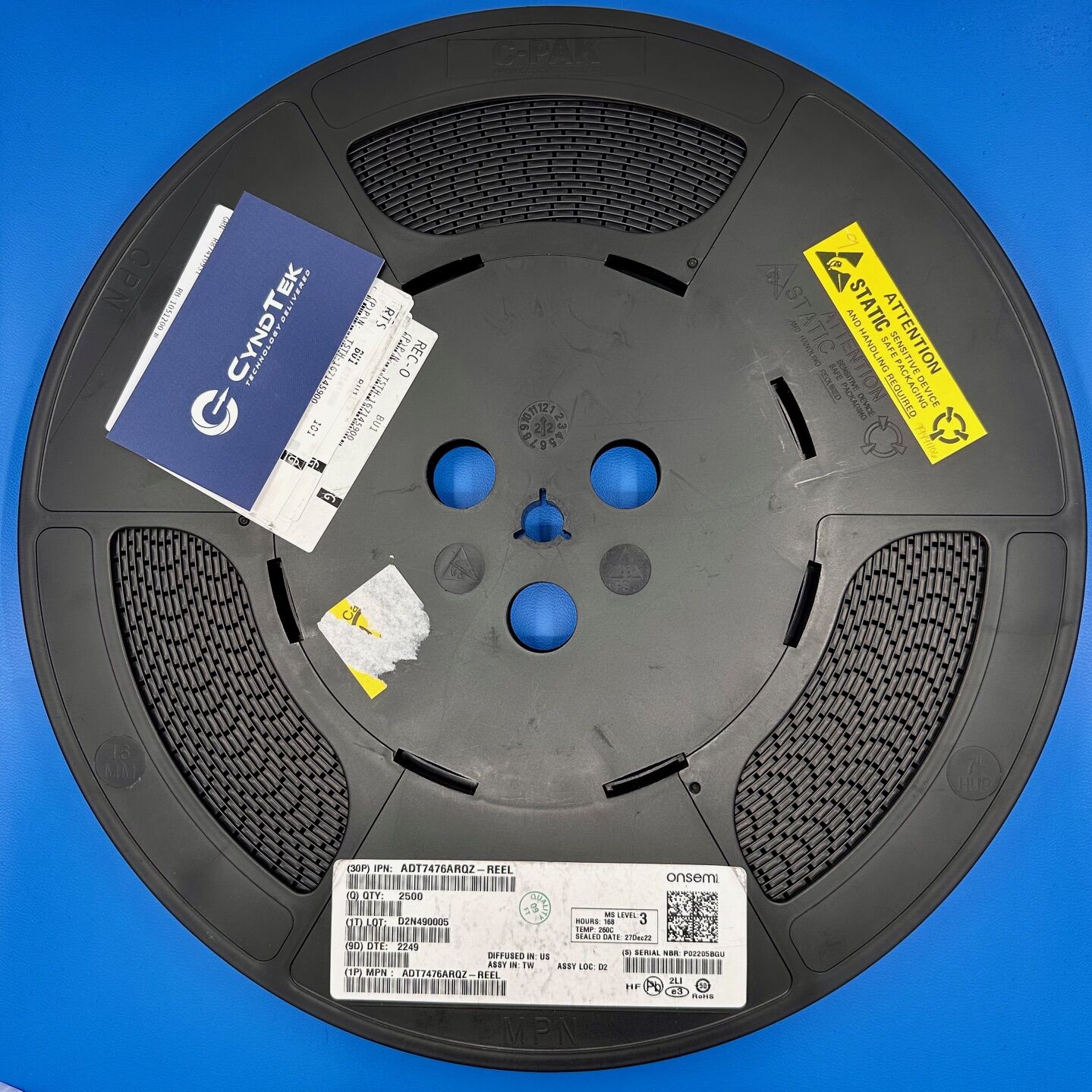

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2249

Availability: 2001 in stock

SKU TSX027A Category Brand:

ADT7476ARQZ-REEL Specifications

Manufacturer: onsemi
Part Number: ADT7476ARQZ-REEL
Product Type: Remote Thermal Controller and Voltage Monitor
Temperature Sensors: One on-chip and two remote
Voltage Monitoring: Monitors up to 5 voltages
Fan Control: Controls and monitors up to 4 fans
Fan Drive Signal: Supports high and low frequency
Temperature Measurement Range: Up to 191°C
Fan Speed Measurement: Supports 3-wire and 4-wire fans
Interface: SMBus 2.0 compliant
 Voltage Range: 3.0V to 3.6V
Operating Current: 3 mA
Operating Temperature Range: -40°C to +125°C
Package / Case: 24-pin QSOP
Mounting Type: Surface Mount
RoHS Status: RoHS Compliant

Key Features

The ADT7476ARQZ-REEL is a thermal monitor and PWM fan controller designed for noise-sensitive or power-sensitive applications requiring active system cooling. It can drive fans using either low or high frequency signals and monitor temperatures from up to two remote sensor diodes in addition to its internal temperature sensor. The device measures and controls the speed of up to four fans, ensuring they operate at the lowest possible speed to minimize acoustic noise. Its automatic fan speed control mode adjusts system cooling based on measured temperatures, while the enhanced acoustic mode reduces user perception of changing fan speeds. The ADT7476 also features thermal protection via the THERM output and meets SMBus 2.0 electrical specifications.

Applications

Notebook and desktop computers
Servers
Game consoles
RFID readers

Product Overview

The ADT7476ARQZ-REEL offers a comprehensive solution for thermal management in electronic systems. By monitoring multiple temperature points and controlling fan speeds accordingly, it ensures optimal cooling while minimizing noise. The device’s ability to monitor up to five voltage levels and control four fans makes it versatile for various applications. Its compliance with SMBus 2.0 standards ensures seamless integration into existing systems. The compact 24-pin QSOP package and surface mount design facilitate easy integration into space-constrained designs. With an extended temperature measurement range and robust protection features, the ADT7476ARQZ-REEL is well-suited for maintaining system reliability in diverse environments.
