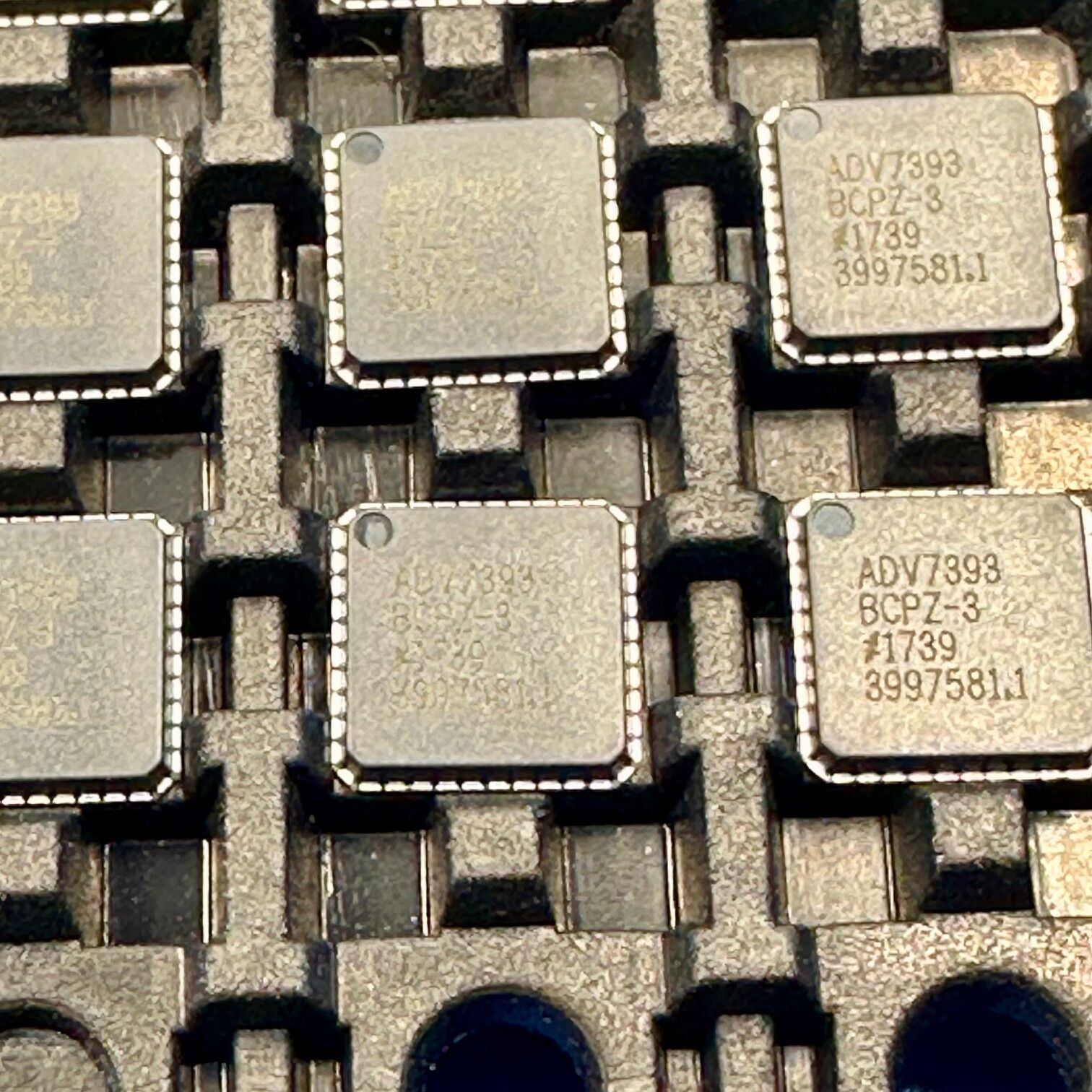

ADV7393BCPZ

ADV7393BCPZ

$5.00

IC CONV CMOS DAC DIGITAL VIDEO ENCODER

  • Manufacturer: Analog Devices Inc
  • Part Number: ADV7393BCPZ

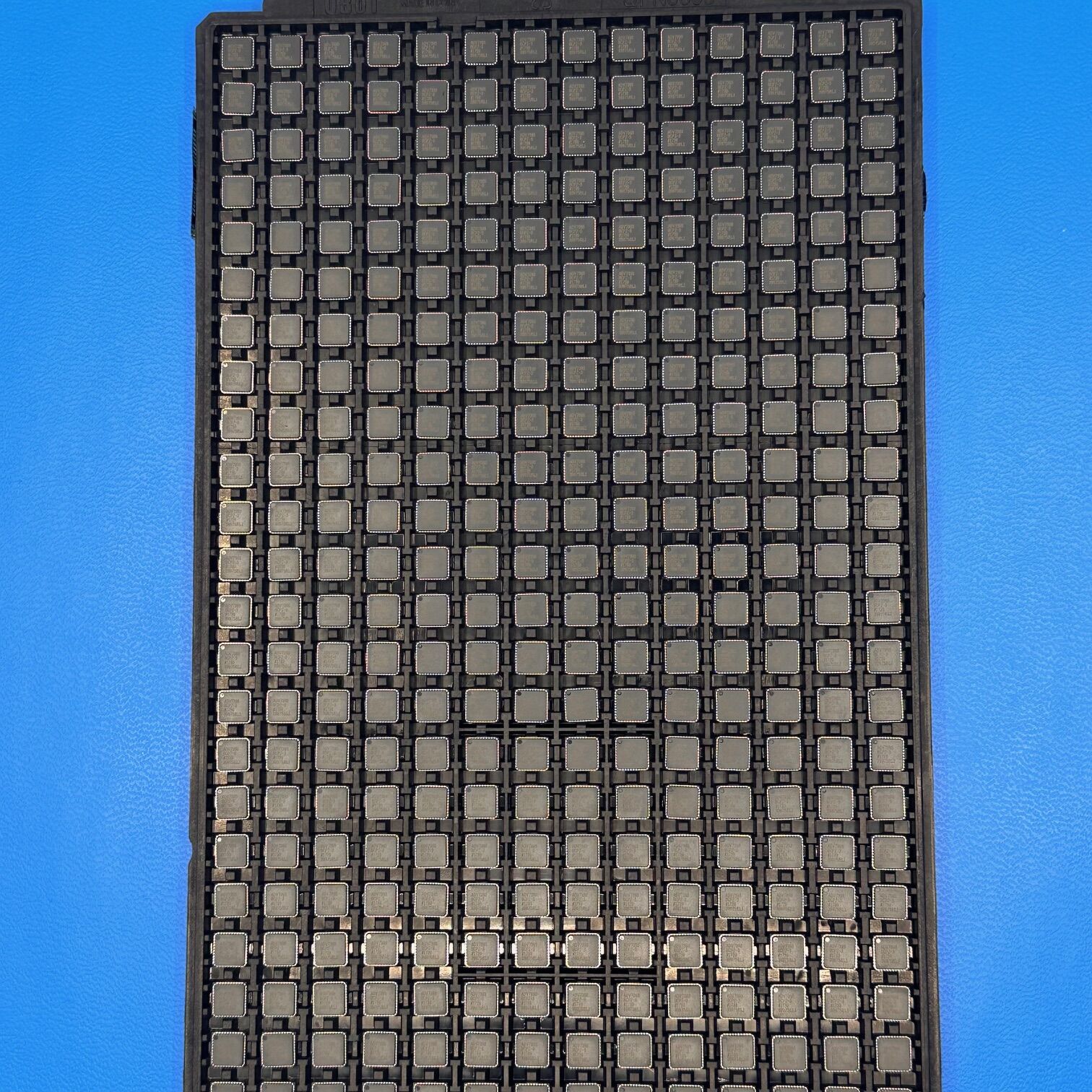

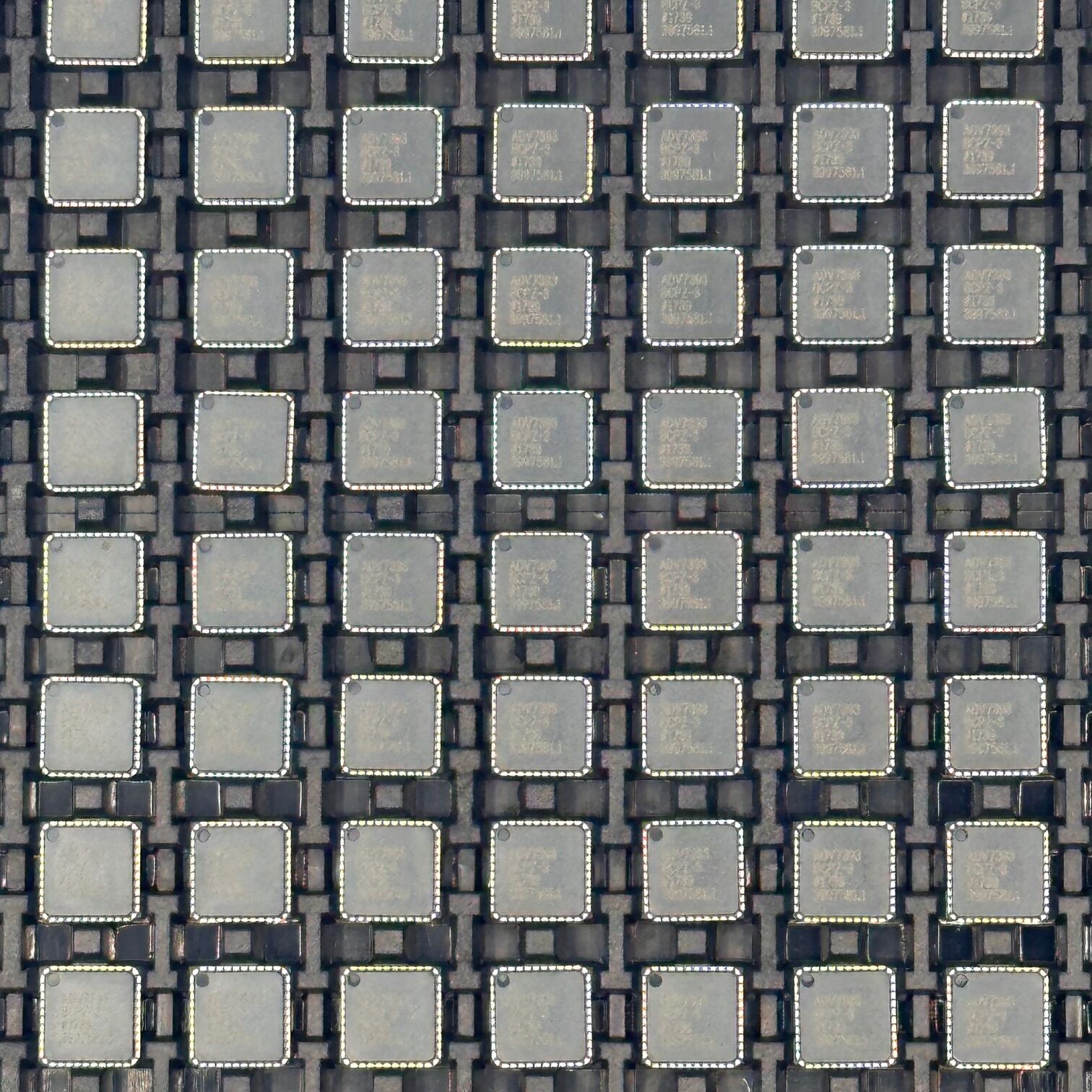

  • Packaging: Tray
  • Quantity: Each
  • Datecode: 1739

Availability: 325 in stock

SKU TSX003 Category Brand:

ADV7393BCPZ Specifications

Manufacturer: Analog Devices
Part Number: ADV7393BCPZ
Product Type: Video DAC
Channels: 3
Output Type: Digital RGB
Voltage Supply: 3.3V
Data Rate: 165 MHz
Package / Case: 48-LQFP
Operating Temperature Range: -40°C to +85°C
Power Dissipation: 130 mW
Package Type: LQFP
Lead Free: Yes
RoHS Compliant: Yes
Mounting Type: Surface Mount
Voltage Supply Range: 3.0V to 3.6V
Resolution: 10 bits per channel
D/A Converter Type: Triple DAC
Input Data Format: RGB
Input Interface: Parallel
Power Supply Pins: 1
Pin Count: 48
Dimensions: 7mm x 7mm

Key Features
  • Triple 10-bit video DAC providing high-quality video output.
  • Supports RGB output format for use in a variety of display systems.
  • High-speed digital output with 165 MHz data rate.
  • Low power consumption with only 130 mW power dissipation.
  • Operating voltage range of 3.0V to 3.6V for flexible design options.
  • Package type is 48-pin LQFP, ideal for space-constrained applications.
Applications
  • Digital video processing in consumer electronics.
  • Display devices such as flat-screen TVs, monitors, and projectors.
  • Video signal processing and conversion for industrial video systems.
  • Automotive display systems for high-resolution graphics.
  • High-quality video output in surveillance and security cameras.
Product Overview

The ADV7393BCPZ from Analog Devices is a high-performance video DAC designed for delivering high-quality RGB video output. With triple 10-bit DACs, it ensures excellent video signal fidelity, making it ideal for applications in consumer electronics, video processing systems, and display devices. This DAC supports a data rate of 165 MHz, allowing it to handle high-definition video signals with ease. The device operates on a supply voltage of 3.0V to 3.6V, providing versatility in power-sensitive designs.
