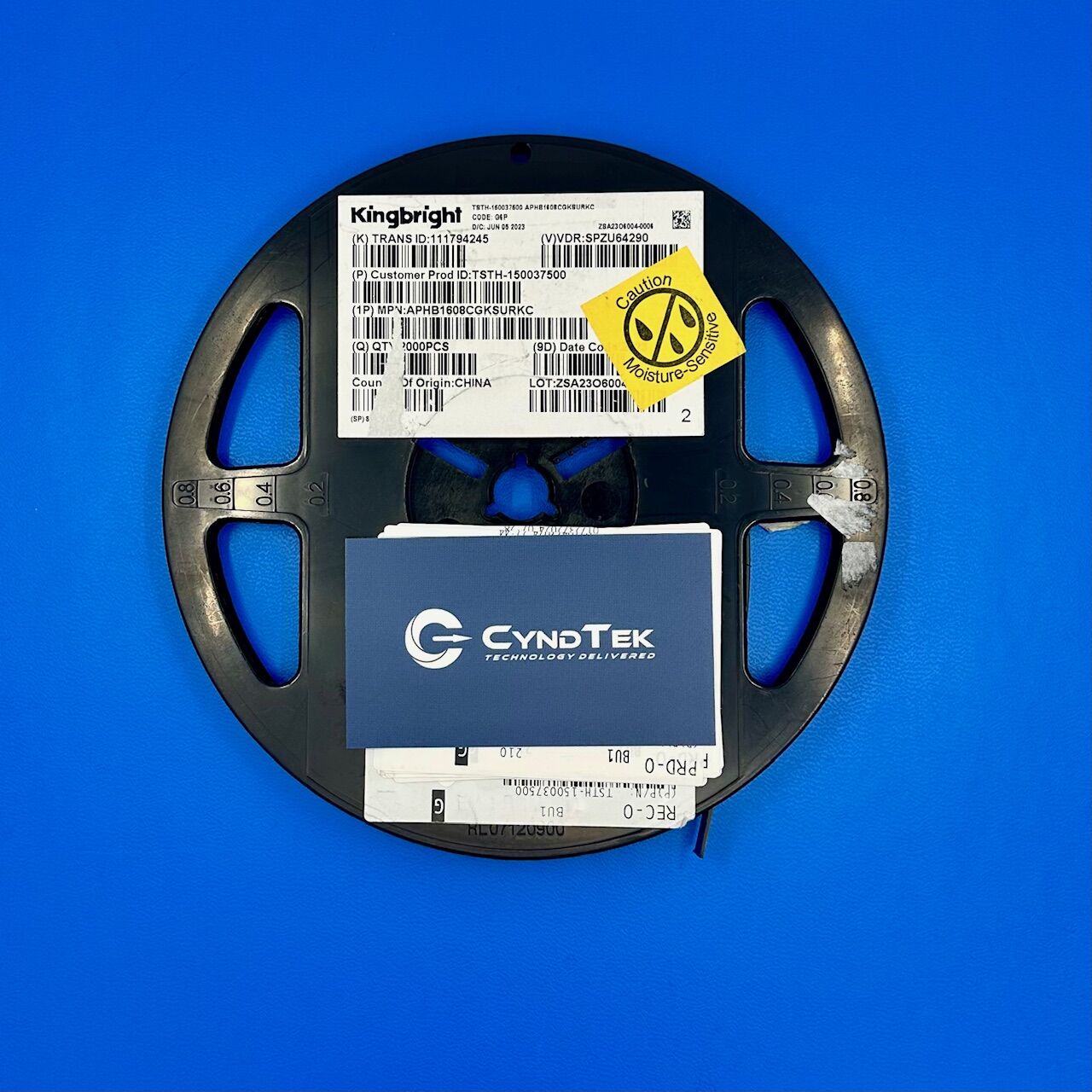

APHB1608CGKSURKC

APHB1608CGKSURKC Specifications

Manufacturer: Kingbright
Part Number: APHB1608CGKSURKC
Product Type: Bi-Color Surface Mount LED
Package Size: 1.6 mm × 0.8 mm × 0.5 mm (0603)
Emitting Colors: Green and Hyper Red
Lens Type: Clear, Water Clear
Luminous Intensity (Green): 20 mcd (min), 50 mcd (typ) at 20 mA
Luminous Intensity (Hyper Red): 40 mcd (min), 90 mcd (typ) at 20 mA
Peak Wavelength (Green): 574 nm
Peak Wavelength (Hyper Red): 645 nm
Dominant Wavelength (Green): 570 nm
Dominant Wavelength (Hyper Red): 630 nm
Forward Voltage (Green): 2.1 V (typ), 2.5 V (max) at 20 mA
Forward Voltage (Hyper Red): 1.95 V (typ), 2.5 V (max) at 20 mA
Viewing Angle: 130°
Operating Temperature Range: -40°C to +85°C
Storage Temperature Range: -40°C to +85°C
Power Dissipation: 75 mW per color
Mounting Method: Surface Mount Technology (SMT)
RoHS Status: RoHS Compliant

Key Features

The APHB1608CGKSURKC is a compact bi-color surface mount LED from Kingbright, designed for applications requiring dual-color indicators in limited spaces. Measuring just 1.6 mm × 0.8 mm × 0.5 mm, this LED offers both green and hyper red emissions through a clear lens, providing distinct and bright visual signals. With a wide viewing angle of 130°, it ensures visibility from various perspectives. The device operates efficiently with a forward voltage of 2.1 V for green and 1.95 V for hyper red at 20 mA, making it suitable for low-power applications. Its robust design supports an operating temperature range from -40°C to +85°C, accommodating various environmental conditions. The APHB1608CGKSURKC is compatible with reflow soldering processes, facilitating easy integration into modern PCB assemblies.

Applications

• Status indicators in consumer electronics

• Backlighting for keypads and displays

• Signal indicators in industrial control panels

• Wearable devices requiring compact visual alerts

• Medical equipment with color-coded status displays

Product Overview

Kingbright’s APHB1608CGKSURKC bi-color surface mount LED combines green and hyper red emissions in a single, compact package, offering designers flexibility in creating intuitive visual indicators. Its clear lens ensures bright and distinct color output, while the 130° viewing angle provides excellent visibility across different orientations. The LED’s low forward voltage and power dissipation make it energy-efficient, aligning with the needs of portable and battery-operated devices. Additionally, its wide operating temperature range and RoHS compliance underscore its reliability and adherence to environmental standards. This LED is an ideal choice for applications where space is limited, and dual-color indication is essential.
