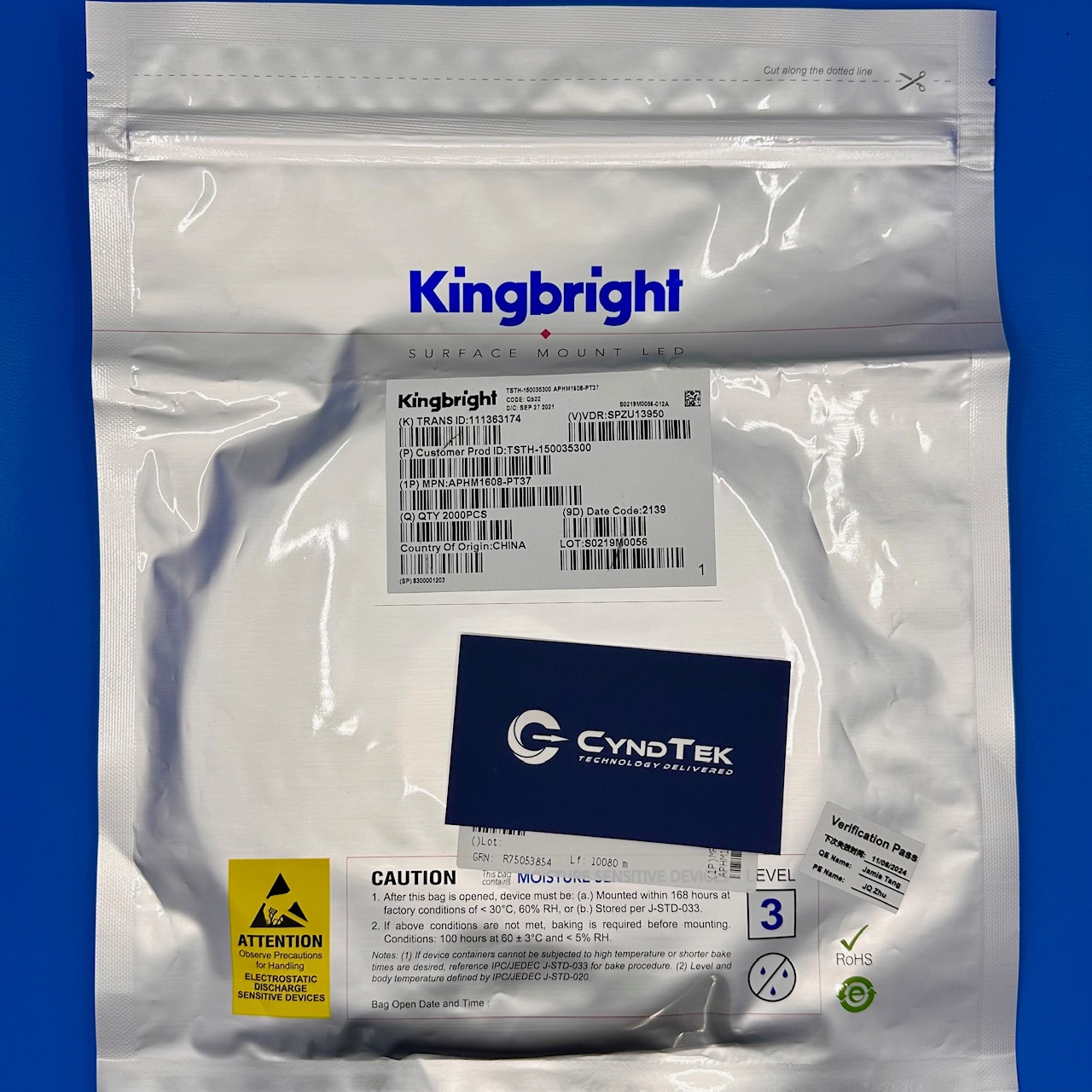

APHM1608-PT37

APHM1608-PT37

$0.15

OPTO DIODE WHITE LED SMD 1.6X0.8MM
  • Manufacturer: Kingbright
  • Part Number: APHM1608-PT37
  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2139

Availability: 15936 in stock

SKU TSX017A Category Brand:

APHM1608-PT37 Specifications

Manufacturer: Kingbright
Part Number: APHM1608-PT37
Product Type: SMD LED
Emitting Color: High Efficiency Red
Wavelength at Peak Emission: 627 nm
Dominant Wavelength: 617 nm
Luminous Intensity: 8 mcd (min), 15 mcd (typ) at 20 mA
Forward Voltage: 2.0V (typ), 2.5V (max) at 20 mA
Reverse Voltage: 5V
Viewing Angle: 150°
Package Dimensions: 1.6 mm x 0.8 mm x 0.75 mm
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
Storage Temperature Range: -40°C to +85°C
Power Dissipation: 75 mW
DC Forward Current: 30 mA
Peak Forward Current: 160 mA (1/10 duty cycle, 0.1 ms pulse width)
RoHS Status: RoHS Compliant

Key Features

The APHM1608-PT37 is a high-efficiency red surface-mount LED designed for applications requiring low power consumption and a wide viewing angle. Its compact 1.6 mm x 0.8 mm x 0.75 mm package makes it ideal for space-constrained designs. With a peak emission wavelength of 627 nm and a dominant wavelength of 617 nm, it delivers consistent red illumination. The LED operates efficiently at a forward voltage of 2.0V and maintains performance across a broad operating temperature range from -40°C to +85°C. Its wide 150° viewing angle ensures visibility from various perspectives, enhancing its versatility in diverse applications.

Applications

Backlighting
Status indicators
Home and smart appliances
Wearable and portable devices
Healthcare applications

Product Overview

The APHM1608-PT37 LED offers designers a reliable and efficient lighting solution, particularly suited for compact electronic devices. Its low power consumption and high luminous intensity make it ideal for battery-operated gadgets. The wide viewing angle ensures that the LED’s light is visible from multiple directions, which is beneficial in applications like status indicators and backlighting. Additionally, its robust operating temperature range and RoHS compliance make it suitable for use in various environmental conditions, aligning with modern environmental and safety standards.
