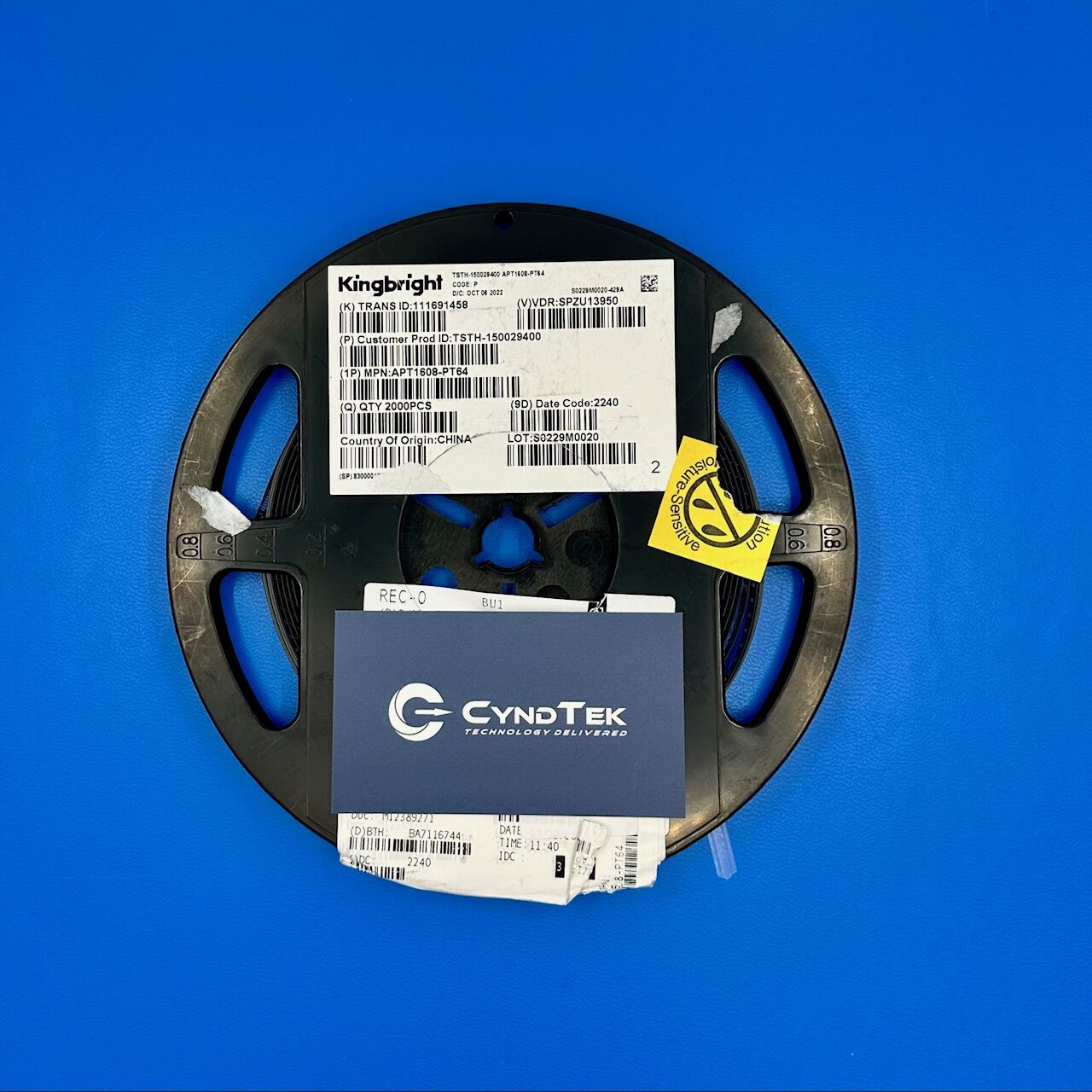

APT1608-PT64

APT1608-PT64 Specifications

Manufacturer: Kingbright
Part Number: APT1608-PT64
Product Type: Surface Mount LED
Package Size: 1.6 mm × 0.8 mm × 0.75 mm (0603)
Emitting Color: Blue
Lens Type: Water Clear
Luminous Intensity: 45 mcd (typical) at 20 mA
Peak Wavelength: 468 nm
Dominant Wavelength: 465 nm
Forward Voltage: 3.0 V (typical) at 20 mA
Viewing Angle: 130°
Power Dissipation: 75 mW
Operating Temperature Range: -40°C to +85°C
Storage Temperature Range: -40°C to +85°C
Mounting Method: Surface Mount Technology (SMT)
RoHS Status: RoHS Compliant

Key Features

The APT1608-PT64 is a compact blue surface mount LED from Kingbright, designed for applications requiring high-intensity illumination in limited spaces. Measuring just 1.6 mm × 0.8 mm × 0.75 mm, this LED offers a typical luminous intensity of 45 mcd at 20 mA, providing bright and clear blue light. With a wide viewing angle of 130°, it ensures visibility from various perspectives. The device operates efficiently with a typical forward voltage of 3.0 V at 20 mA, making it suitable for low-power applications. Its robust design supports an operating temperature range from -40°C to +85°C, accommodating various environmental conditions. The APT1608-PT64 is compatible with reflow soldering processes, facilitating easy integration into modern PCB assemblies.

Applications

• Status indicators in consumer electronics

• Backlighting for keypads and displays

• Signal indicators in industrial control panels

• Wearable devices requiring compact visual alerts

• Medical equipment with color-coded status displays

Product Overview

Kingbright’s APT1608-PT64 surface mount LED combines compact size with high-intensity blue emission, offering designers flexibility in creating intuitive visual indicators. Its water clear lens ensures bright and distinct color output, while the 130° viewing angle provides excellent visibility across different orientations. The LED’s low forward voltage and power dissipation make it energy-efficient, aligning with the needs of portable and battery-operated devices. Additionally, its wide operating temperature range and RoHS compliance underscore its reliability and adherence to environmental standards. This LED is an ideal choice for applications where space is limited, and high-intensity blue indication is essential.
