APT1608SECK Specifications
Manufacturer: Kingbright
Part Number: APT1608SECK
Date Code: 1363
Quantity Available: 2,214 pieces
Product Type: SMD Chip LED
Emitting Color: Super Bright Orange
Lens Type: Water Clear
LED Size: 1.6 × 0.8 mm
Imperial Case Size: 0603
Package Thickness: 0.75 mm
LED Material: AlGaInP
Typical Wavelength: 605 nm
Luminous Intensity: 120 mcd minimum, 250 mcd typical at 20 mA
Viewing Angle: 120°
Moisture Sensitivity Level: MSL 3
Mounting Style: Surface Mount

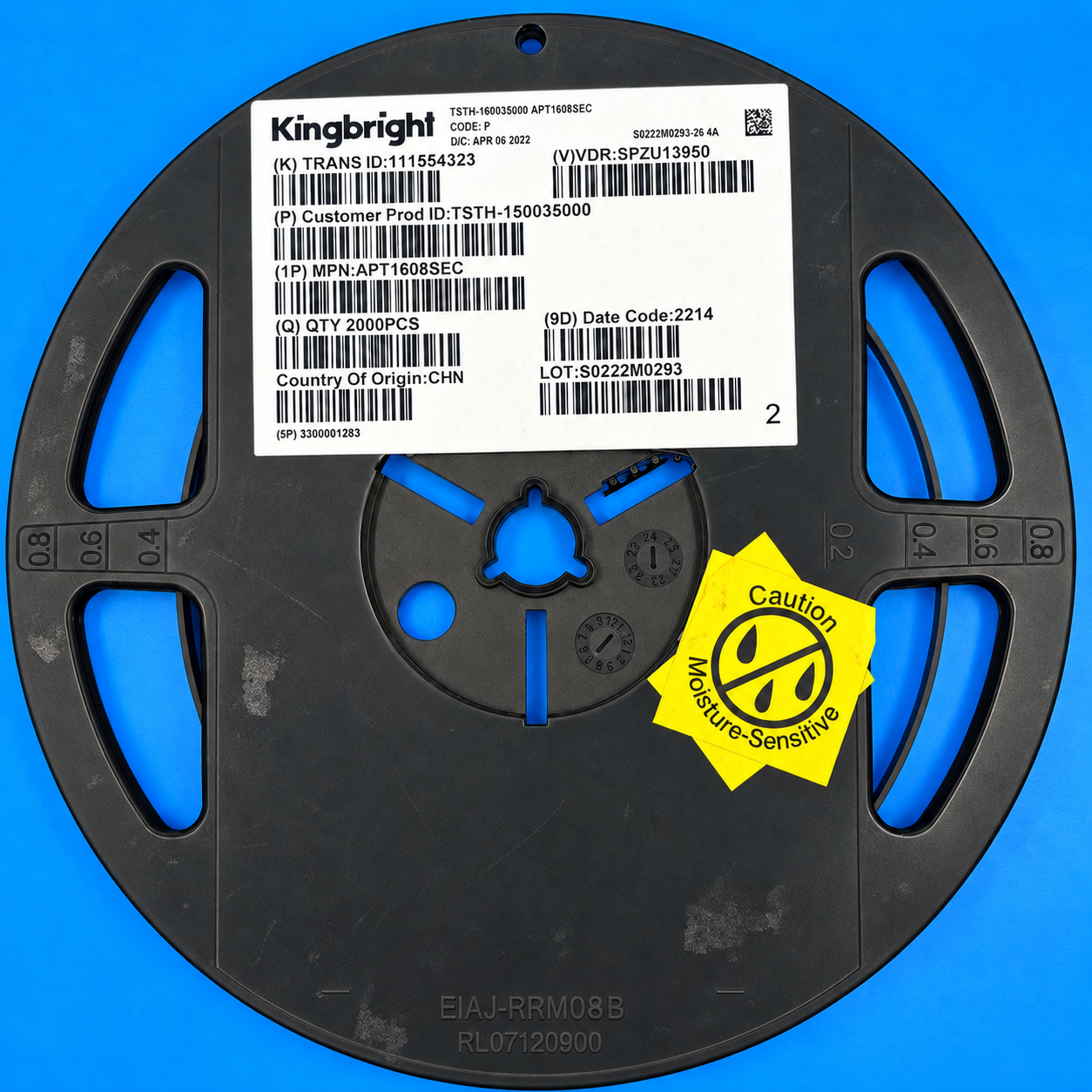

Packaging: Tape and Reel
Compliance: RoHS Compliant, Halogen-Free
Application: Indicator, backlight, portable device, and equipment display applications
Key Features
The Kingbright APT1608SECK is a super bright orange SMD chip LED. It is designed for compact electronic assemblies. In addition, the 1.6 × 0.8 mm package matches the common 0603 LED footprint.
This LED uses an AlGaInP die with a water clear lens. It provides orange light output with a typical wavelength of 605 nm. Also, the 120° viewing angle helps support wide visual indication across many product designs.
The APT1608SECK supports surface-mount assembly and tape-and-reel handling. As a result, it works well for production builds, repairs, and prototype boards. Its low power design also makes it useful for portable and compact equipment.
Applications
Status indicator lights
Backlighting applications
Portable electronic devices
Wearable electronic products
Home and smart appliances
Healthcare equipment indicators
Industrial control panels
Communication equipment
PCB repair and replacement
Prototype electronic assemblies
Product Overview
The Kingbright APT1608SECK is a super bright orange SMD chip LED for compact electronic designs. It uses a 1.6 × 0.8 mm package, which matches the common 0603 chip LED size. Therefore, it is useful in boards where space is limited.
This LED uses AlGaInP material and a water clear lens. It provides a typical orange wavelength of 605 nm. In addition, it offers a wide 120° viewing angle. These features help support visible status indication, backlighting, and user-interface lighting.
The APT1608SECK is suitable for surface-mount assembly. It also supports tape-and-reel production handling. As a result, buyers can use it for new builds, repair work, and engineering stock. The compact package can support portable devices, smart appliances, medical equipment, industrial controls, and communication hardware.
This device is RoHS compliant and halogen-free. It also carries an MSL 3 moisture sensitivity rating. Because LEDs can be sensitive to electrostatic discharge and process conditions, buyers should confirm handling, storage, soldering, and brightness requirements before use.
Cyndtek® supplies LEDs, optoelectronic components, semiconductors, and hard-to-find parts for OEM, repair, test, and production applications. To request pricing or availability for APT1608SECK, visit our Cyndtek shop or contact sales@cyndtek.com with your quantity, target price, and required delivery schedule.
