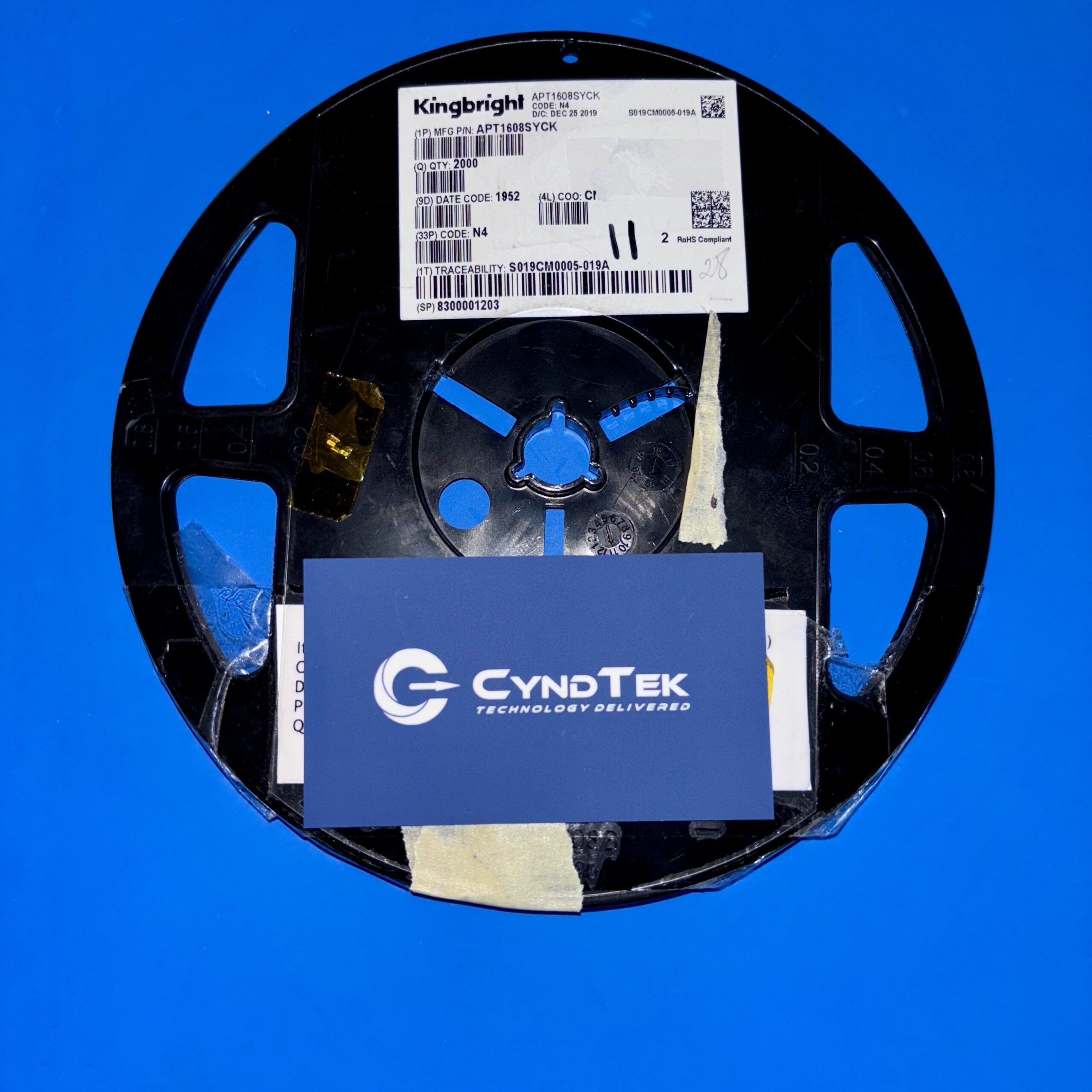

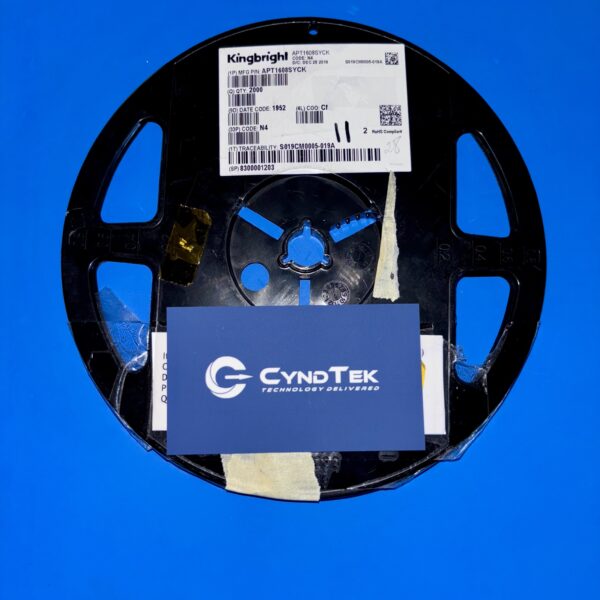

APT1608SYCK Specifications
Manufacturer: Kingbright
Part Number: APT1608SYCK
Product Type: Surface-Mount LED
Emitting Color: Super Bright Yellow
Lens Type: Water Clear
Forward Voltage: 2.0 V (typical)
Luminous Intensity: 150 mcd (typical)
Wavelength – Dominant: 590 nm
Viewing Angle: 120°
Package Dimensions: 1.6 mm (L) x 0.8 mm (W) x 0.75 mm (H)
Operating Temperature Range: -40°C to +85°C
Mounting Type: Surface Mount
Package / Case: 0603 (1608 Metric)
Compliance: RoHS Compliant
Key Features
The APT1608SYCK is a super bright yellow surface-mount LED designed for high-contrast and high-visibility applications. Its compact 1.6 mm x 0.8 mm footprint allows for efficient use of PCB space in densely populated designs. The water clear lens ensures maximum luminous intensity, delivering a typical brightness of 150 mcd at a dominant wavelength of 590 nm. With a wide viewing angle of 120°, it provides uniform illumination across a broad area. Additionally, the LED’s low power consumption and compatibility with automated placement equipment make it suitable for high-volume manufacturing processes.
Applications
Backlighting for LCDs in portable devices
Status indicators in networking equipment
Keypad illumination in consumer electronics
Signal and symbol illumination in automotive dashboards
General-purpose indicators in industrial control panels
Product Overview
The Kingbright APT1608SYCK is engineered to provide high-intensity yellow illumination in a compact surface-mount package. Its 2.0 V typical forward voltage and low power consumption make it ideal for battery-operated devices. The LED’s robust design supports an operating temperature range from -40°C to +85°C, ensuring reliability in various environmental conditions. Its compatibility with automated placement equipment streamlines assembly processes, making it a cost-effective solution for large-scale production. Whether used for backlighting, status indication, or decorative purposes, the APT1608SYCK delivers consistent performance and longevity.
