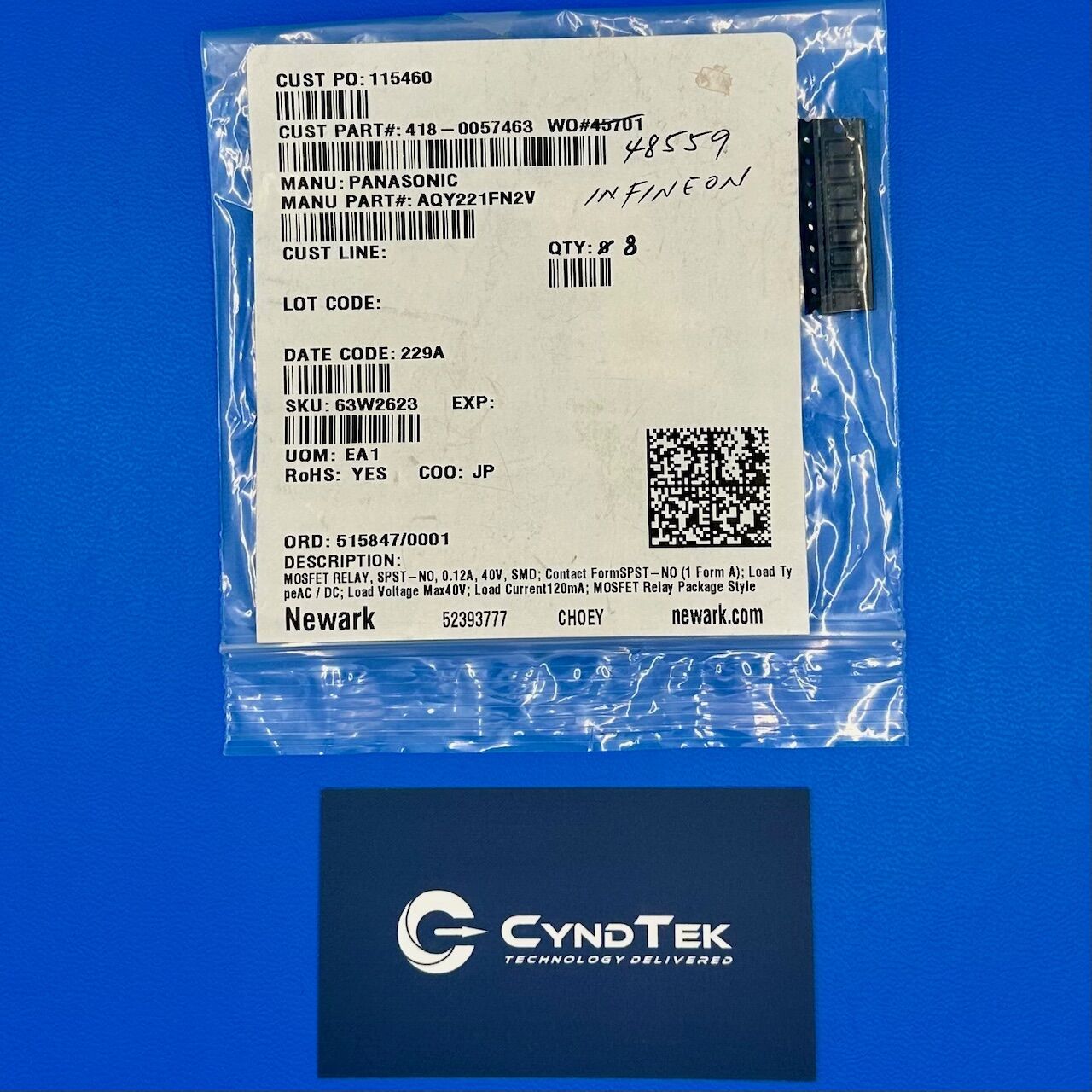

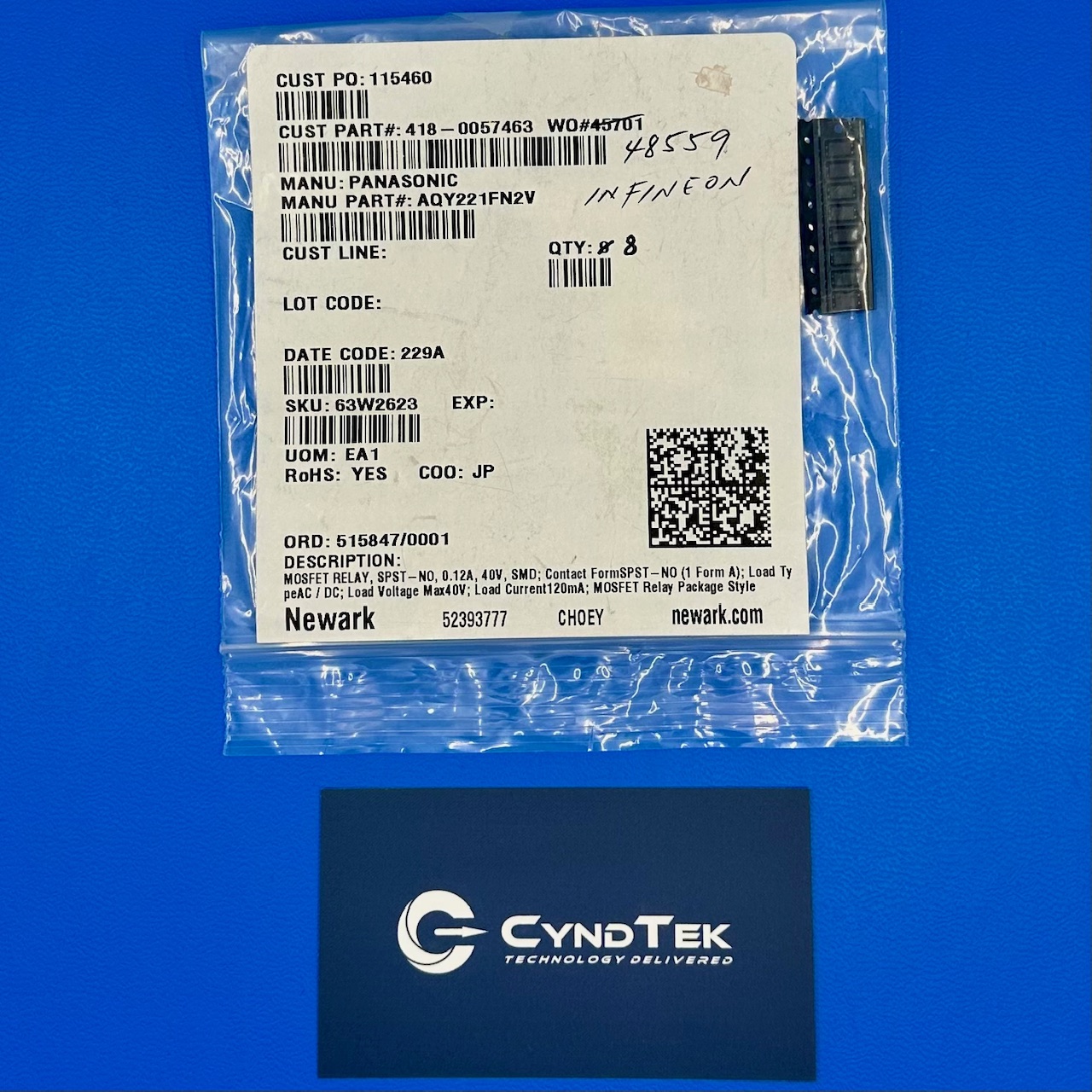

AQY221FN2V Specifications
Manufacturer: Panasonic
Part Number: AQY221FN2V
Device Type: Solid state relay
Relay Type: PhotoMOS relay
Output Configuration: 1 Form A normally open
Load Voltage Rating: 60 V
Load Current Rating: 0.5 A
On Resistance: Low on resistance design
Input Control Type: LED drive input
Isolation Voltage: High input to output isolation
Package Type: SOP surface mount package
Mounting Style: Surface mount
Operating Temperature Range: -40 °C to +85 °C
Switching Speed: Fast switching response
Packaging Type: Tape and reel
Key Features
This PhotoMOS relay provides silent and reliable switching without mechanical wear. It supports fast response times, which improves signal control accuracy. Additionally, the optical isolation enhances system safety and noise immunity. The low on resistance helps reduce power loss during operation. As a result, it performs well in precision switching applications. Moreover, the compact SOP package supports high-density PCB layouts. Therefore, it integrates easily into modern electronic designs.
Applications
Automated test equipment switching
Telecommunications signal routing
Industrial control input output isolation
Medical instrumentation signal control
Measurement and data acquisition systems
Battery-powered switching circuits
Consumer electronics control interfaces
Instrumentation multiplexing
Low-noise signal switching
Product Overview
The AQY221FN2V from Panasonic is designed to deliver dependable solid state switching in compact electronic systems. First, its PhotoMOS architecture eliminates contact bounce and mechanical degradation. Additionally, the high isolation voltage protects sensitive control circuitry. As systems require quieter and more reliable switching, this relay provides consistent electrical performance. Furthermore, the fast switching speed supports precise timing control. Consequently, it is well suited for test, measurement, and control applications. While compact in size, it maintains stable operation across temperature variations. Therefore, it supports long-term reliability in commercial and industrial environments. Overall, this solid state relay offers clean switching, durability, and design flexibility.
