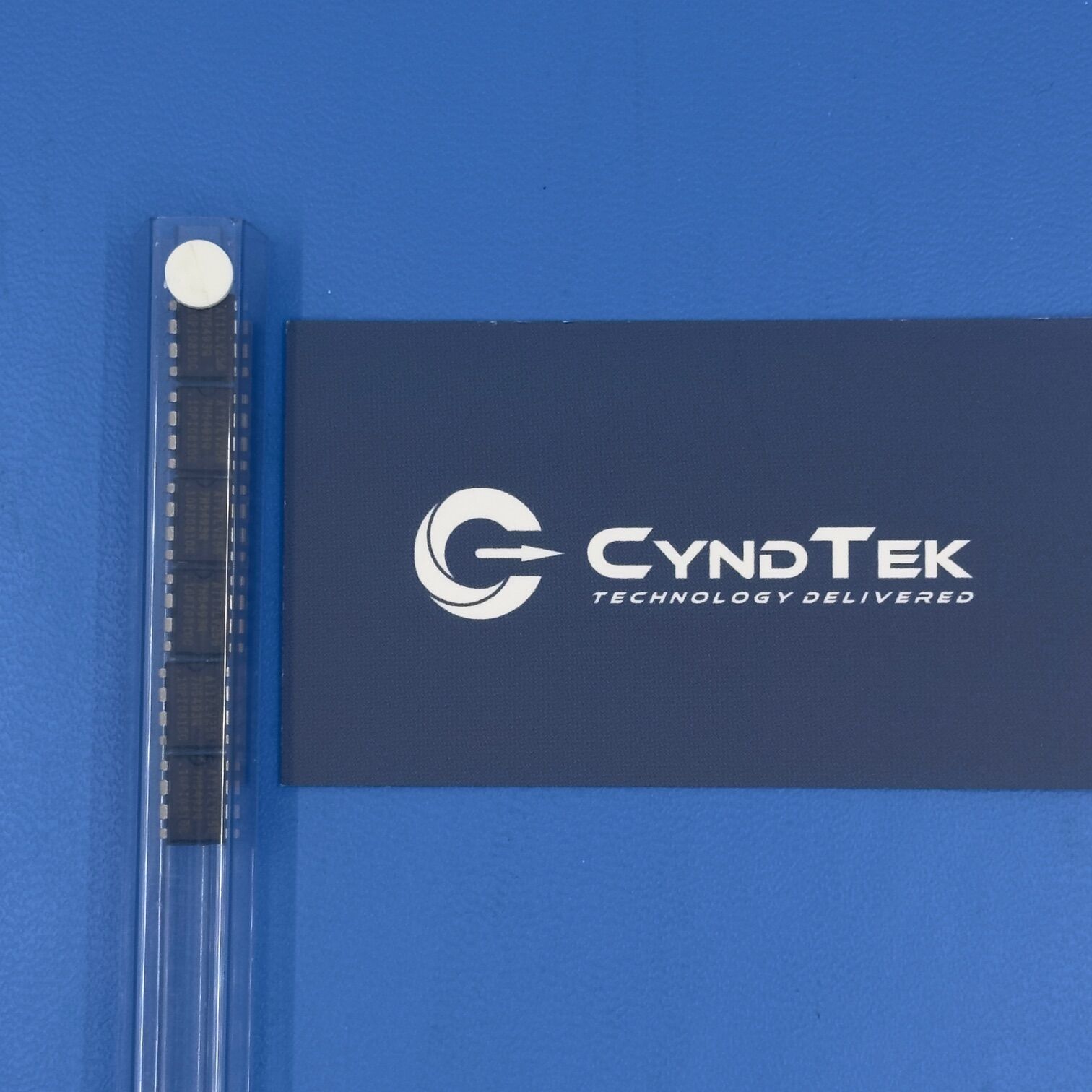

AT17LV256-10PI Specifications
Manufacturer: Atmel
Part Number: AT17LV256-10PI
Product Type: Serial Configuration EEPROM
Memory Size: 256 Kbit
Memory Organization: 256K x 1
Access Time: 100 ns
Interface Type: Serial Configuration Interface
Supply Voltage: 2.7 V to 3.6 V
Package Type: DIP-8
Mounting Type: Through Hole
Memory Type: Nonvolatile EEPROM
Operating Temperature Range: -40°C to +85°C
Applications Class: FPGA Configuration Memory
Packaging: Factory
Key Features
The AT17LV256-10PI is a serial configuration EEPROM designed to store configuration data for programmable logic devices. It provides 256 kilobits of nonvolatile memory organized as 256K by 1 bit. Additionally, the device supports serial data transfer which simplifies connection to compatible FPGA configuration interfaces. Because configuration EEPROM devices retain data without power, engineers frequently use them to automatically load firmware or configuration bitstreams during system startup. As a result, this device is commonly used alongside programmable logic devices.
Applications
FPGA configuration memory
Embedded system firmware storage
Industrial control electronics
Communication hardware configuration storage
Programmable logic device configuration circuits
Embedded computing platforms
Instrumentation electronics
Digital control systems
Product Overview
The AT17LV256-10PI from Atmel provides a reliable nonvolatile memory solution for programmable logic device configuration. First, the serial EEPROM architecture allows compact configuration storage for FPGA systems.
Additionally, the device automatically transfers stored configuration data during system power-up. Because many FPGA-based systems rely on external configuration memory, dedicated configuration EEPROM devices help simplify system design.
Moreover, the DIP-8 through-hole package allows easy integration into development boards, legacy hardware, and industrial electronics. Engineers frequently use devices such as the AT17LV256 for storing FPGA bitstreams and configuration data.
Therefore, the AT17LV256-10PI remains a dependable memory component for embedded systems and programmable logic device configuration circuits.
