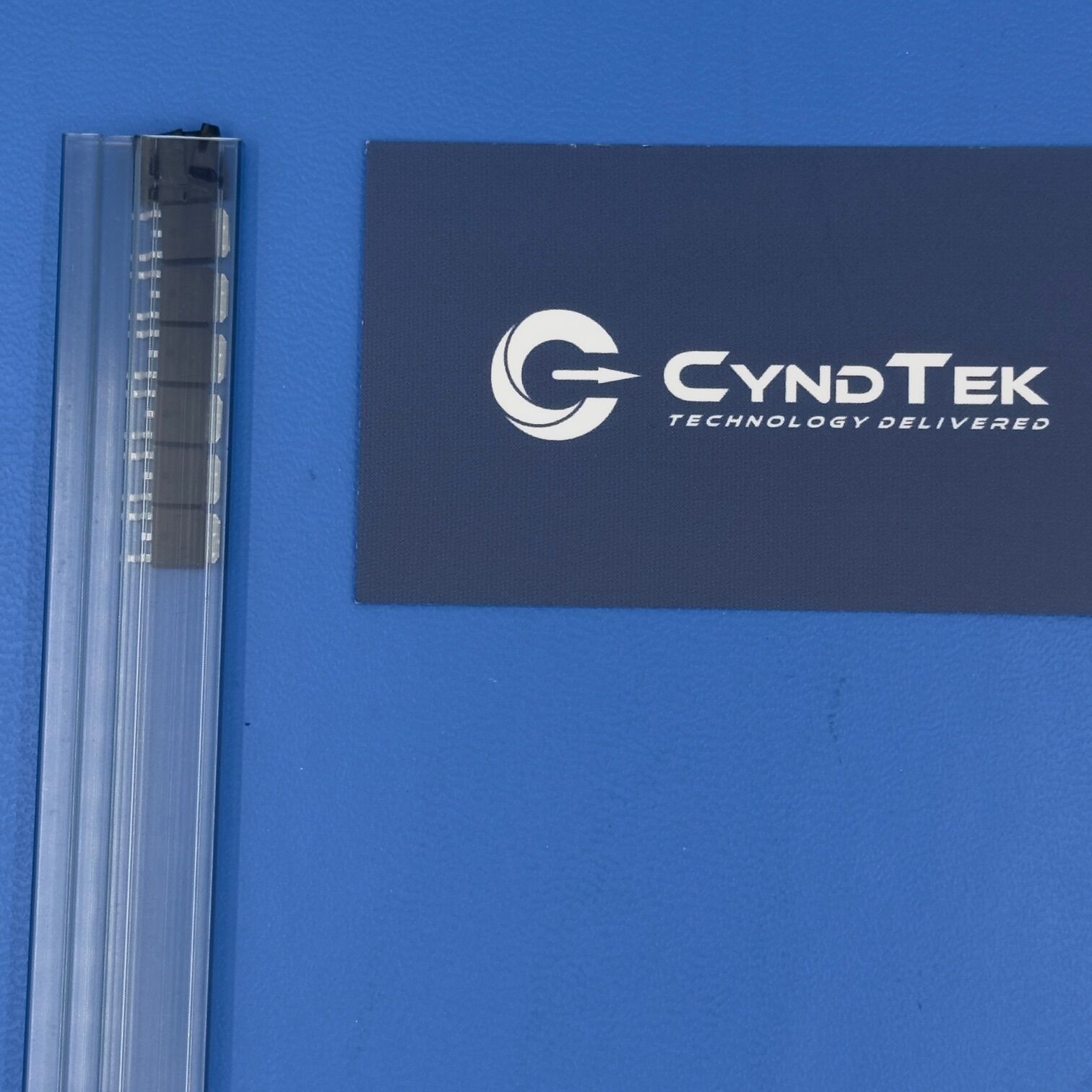

AUFR9024N Specifications
Manufacturer: IRC
Part Number: AUFR9024N
Product Type: Resistor Network Divider
Network Type: Precision Voltage Divider
Number of Resistors: 2
Configuration: Matched Divider Network
Package Type: 3-Lead SIP
Mounting Type: Through Hole
Resistor Technology: Thin Film Network
Tolerance Matching: Precision Matched Resistors
Temperature Coefficient: Low Tracking TCR
Operating Temperature Range: -55°C to +125°C
Applications Class: Precision Analog Circuits
Packaging: Factory
Key Features
The AUFR9024N is a precision resistor network designed to provide accurate voltage divider functionality in analog circuits. It integrates matched resistors within a single package to maintain stable ratio accuracy. Additionally, the network uses thin film resistor technology which supports tight tolerance matching and predictable temperature tracking. Because matched resistor dividers maintain stable ratios over temperature changes, engineers frequently use them in precision measurement systems. As a result, the AUFR9024N supports reliable voltage scaling in high accuracy electronic designs.
Applications
Precision voltage divider circuits
Instrumentation measurement systems
Analog signal conditioning circuits
Calibration and reference networks
Data acquisition systems
Industrial control electronics
Sensor interface circuits
Laboratory test equipment
Product Overview
The AUFR9024N resistor network from IRC provides a compact solution for precision voltage divider circuits. First, the integrated resistor network ensures accurate ratio matching between resistors. This design improves stability compared to using discrete resistors.
Additionally, the thin film resistor construction supports low temperature drift and consistent electrical performance. Because precision measurement systems require stable reference ratios, matched resistor networks are widely used in instrumentation circuits.
Moreover, the 3-lead SIP package allows easy integration into through-hole circuit boards. This format supports compact layouts while maintaining reliable electrical connections.
Therefore, engineers frequently select the AUFR9024N for precision analog circuits where accurate voltage division and long-term stability are critical design requirements.
