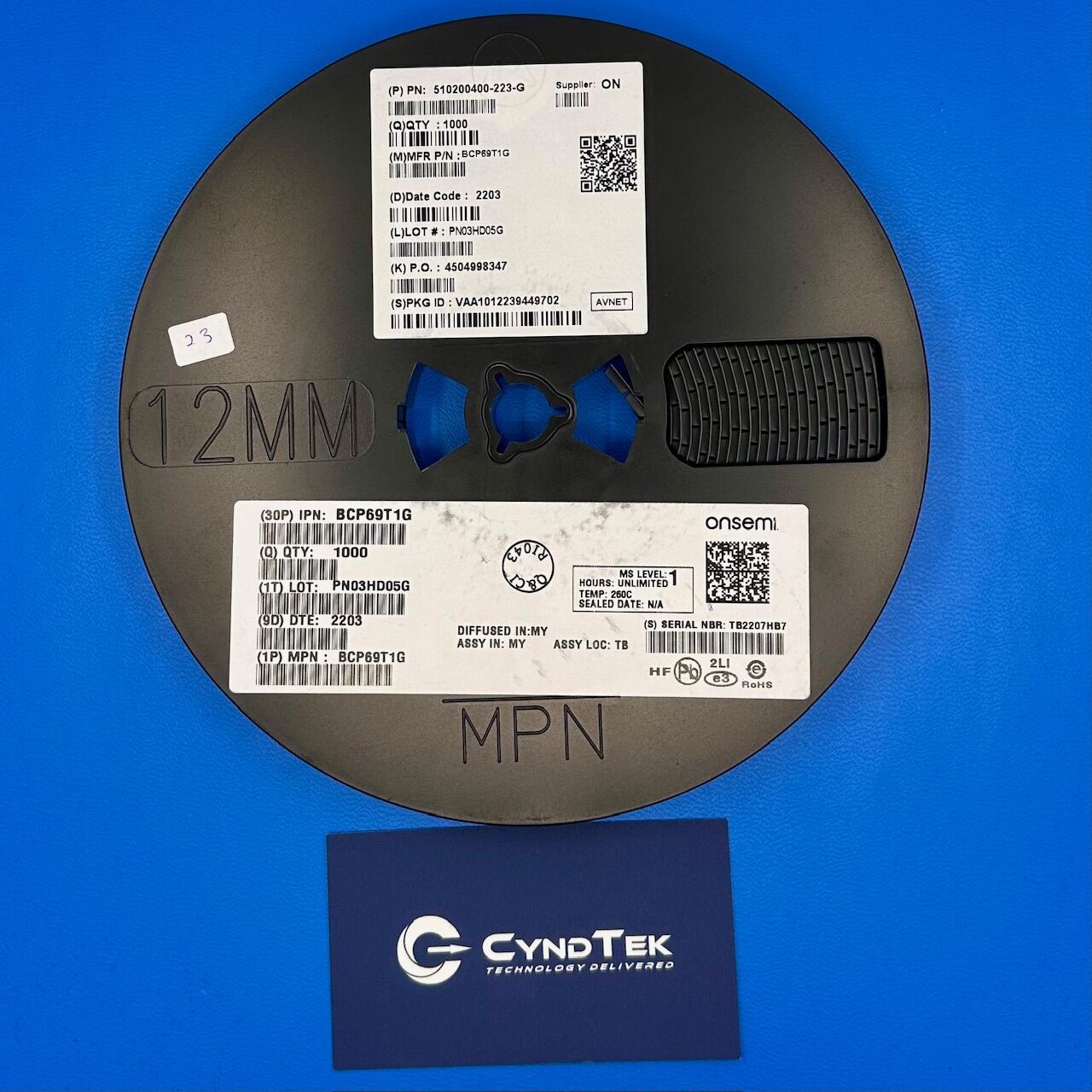

BCP69T1G

BCP69T1G Specifications:

• Collector-Emitter Voltage (VCEO): −20 V
• Collector-Base Voltage (VCBO): −25 V
• Emitter-Base Voltage (VEBO): −5 V
• Collector Current (IC): −1 A
• Power Dissipation (PD): 1.5 W
• DC Current Gain (hFE): 85 (minimum) at IC = −500 mA, VCE = −1 V
• Collector-Emitter Saturation Voltage (VCE(sat)): −0.5 V (maximum) at IC = −1 A, IB = −100 mA
• Transition Frequency (fT): 60 MHz
• Package: SOT-223 (TO-261)

The BCP69T1G, a PNP Silicon Epitaxial Transistor from onsemi, is an ideal choice for low-voltage, high-current applications. Not only does it offer a collector-emitter voltage rating of -20V, but it also supports a collector current of up to -1A, making it well-suited for medium-power surface-mount designs. Furthermore, its SOT-223 package enhances thermal performance, while also ensuring reliable soldering using either wave or reflow methods. In addition to these features, the high DC current gain (hFE) of at least 85 ensures efficient operation, while the collector-emitter saturation voltage of -0.5V (max) further improves its switching characteristics. On top of all that, its formed leads help absorb thermal stress, thereby increasing the overall durability of the component. Given all these attributes, the BCP69T1G is not only versatile but also reliable, making it an excellent choice for a wide range of electronic applications.

The BCP69T1G transistor is highly versatile, making it suitable for a wide range of applications, particularly in power management, signal amplification, and switching circuits. For instance, it is often used in low-voltage power regulation, where its high current capacity and low saturation voltage ensure efficient energy transfer while minimizing power loss. Additionally, because of its high DC current gain, it is commonly found in audio amplification circuits, helping to deliver clean and stable signals.
