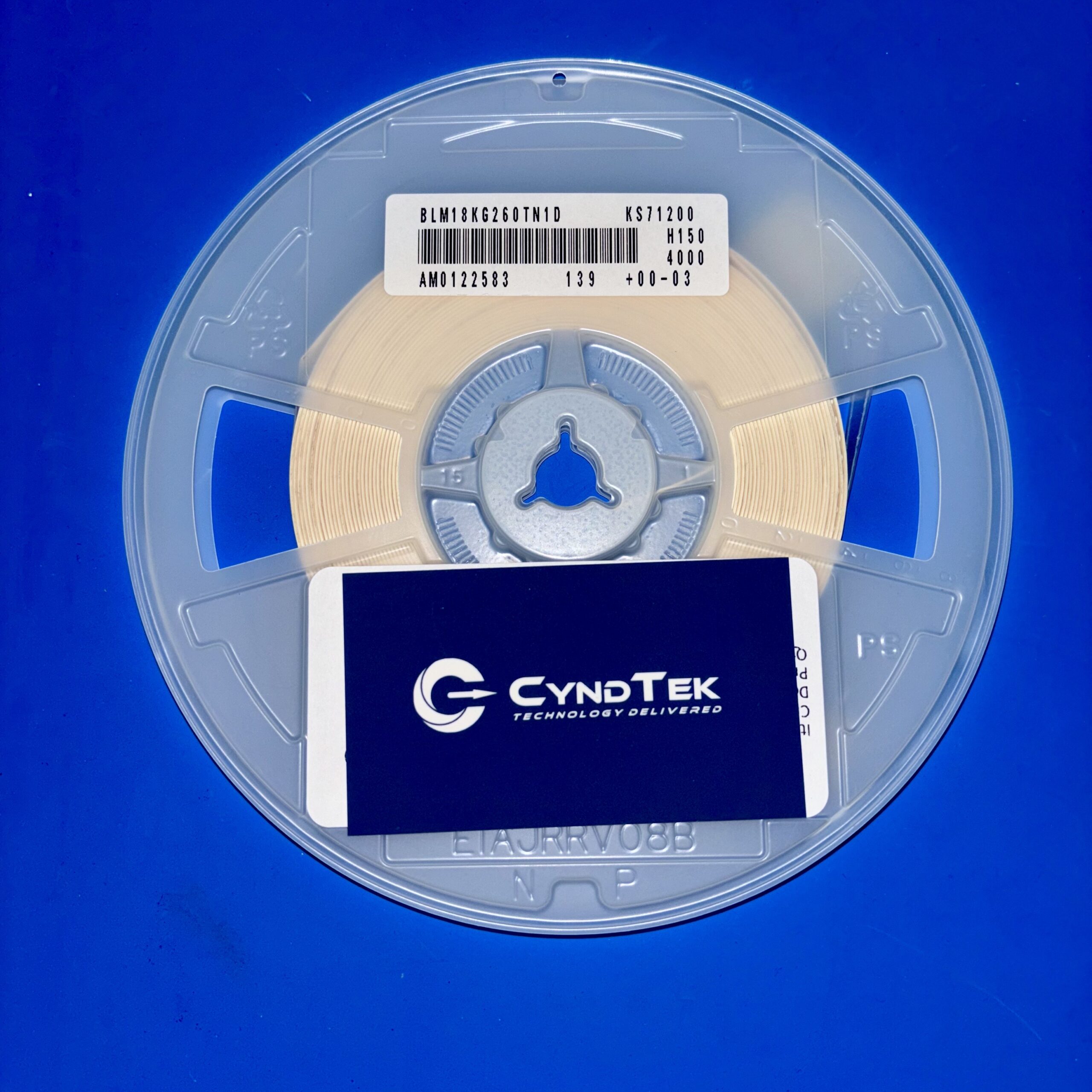

BLM18KG260TN1D

BLM18KG260TN1D Specifications

Manufacturer: Murata Manufacturing Co., Ltd.
Part Number: BLM18KG260TN1D
Product Type: Surface-Mount Ferrite Bead
Impedance: 26 Ω ±25% at 100 MHz
Rated Current: 6 A
DC Resistance (DCR): 0.007 Ω (maximum)
Package / Case: 0603 (1608 metric)
Dimensions: 1.6 mm (L) x 0.8 mm (W) x 0.8 mm (H)
Operating Temperature Range: -55°C to +125°C
Number of Lines: 1
Mounting Type: Surface Mount
Termination Style: SMD/SMT
RoHS Status: RoHS Compliant

Key Features

The BLM18KG260TN1D from Murata is a compact surface-mount ferrite bead designed for effective noise suppression in electronic circuits. With an impedance of 26 Ω at 100 MHz and a high rated current of 6 A, it efficiently attenuates high-frequency noise while accommodating substantial current flow. The component’s low DC resistance of 0.007 Ω minimizes power loss, enhancing overall circuit efficiency. Its 0603 package size allows for seamless integration into high-density PCB layouts. The BLM series is engineered to function nearly as a resistor at noise frequencies, reducing the possibility of resonance and preserving signal waveforms. The nickel barrier structure of the external electrodes provides excellent solder heat resistance, ensuring durability during assembly processes.

Applications

Noise suppression in power supply lines of consumer electronics to ensure signal integrity.
EMI filtering in automotive electronic systems to enhance performance and reliability.
Reduction of high-frequency interference in industrial equipment to improve operational stability.
Attenuation of electromagnetic noise in communication devices to maintain clear signal transmission.
Enhancement of signal integrity in computing devices by suppressing unwanted noise.

Product Overview

Murata’s BLM18KG260TN1D ferrite bead is specifically designed to provide effective noise suppression in electronic circuits without the need for a connection to ground, making it suitable for applications lacking stable ground lines. Its compact 0603 size and surface-mount design facilitate easy integration into space-constrained PCB layouts. The component operates reliably over a wide temperature range from -55°C to +125°C, ensuring consistent performance in various environmental conditions. The BLM series’ design effectively reduces the possibility of resonance, preserving the integrity of signal waveforms. Additionally, the nickel barrier structure of the external electrodes offers excellent solder heat resistance, contributing to the component’s durability during assembly processes. This ferrite bead is an ideal choice for designers seeking efficient and reliable noise suppression solutions in consumer electronics, automotive systems, and industrial equipment.
