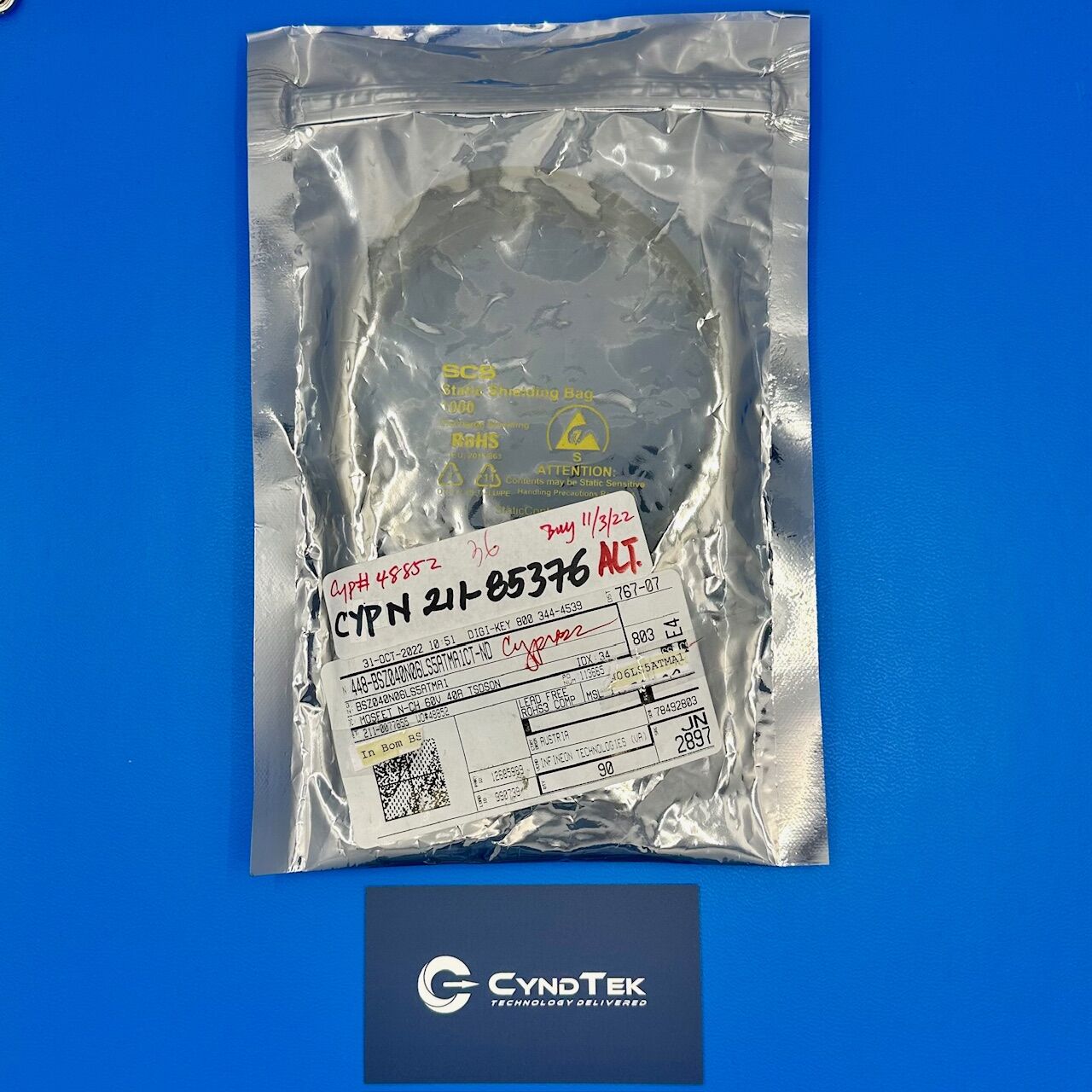

BSZ040N06LS5ATMA1 Specifications
Manufacturer: Infineon Technologies
Part Number: BSZ040N06LS5ATMA1
Device Type: N-channel MOSFET
Technology: OptiMOS 5 power MOSFET
Drain Source Voltage: 60 V
Continuous Drain Current: 100 A
On Resistance: 4.0 mΩ typical
Gate Source Voltage Rating: ±20 V
Power Dissipation: 187 W
Package Type: TDSON-8 (5 x 6 mm)
Mounting Style: Surface mount
Operating Temperature Range: -55 °C to +175 °C
Gate Charge: Low gate charge design
Switching Speed: Fast switching performance
Packaging Type: Tape and reel
Key Features
This OptiMOS 5 N-channel MOSFET is optimized for high-efficiency power switching applications. It delivers very low on resistance, which helps reduce conduction losses. Additionally, the low gate charge supports fast switching with reduced driver losses. The TDSON-8 package improves thermal performance while minimizing PCB footprint. As a result, this device supports higher power density designs. Moreover, the robust silicon structure enhances reliability under demanding electrical conditions. Therefore, it is well suited for modern power management designs.
Applications
DC to DC converters
Synchronous rectification circuits
Server and telecom power supplies
Motor drive control stages
Battery management systems
High-current load switches
Industrial power modules
Automotive power distribution units
Consumer power adapters
Product Overview
The BSZ040N06LS5ATMA1 from Infineon Technologies is designed for high-current, low-loss power switching applications. First, its 60 V rating allows use across a wide range of power architectures. Additionally, the low on resistance improves system efficiency and reduces heat generation. As power designs continue to shrink, this MOSFET supports compact layouts without sacrificing performance. Furthermore, the fast switching capability enables higher switching frequencies. Consequently, designers can reduce passive component size. While the package remains compact, it provides strong thermal dissipation through the PCB. Therefore, it supports reliable operation under continuous load. Overall, this MOSFET offers an excellent balance of efficiency, power handling, and thermal performance.
