Specifications
Manufacturer: KEMET
Part Number: C066T684K5X5CP
Military Part Number: M39014/02-1409V
Date Code: 1346
Quantity Available: 100 pieces
Product Type: Multilayer Ceramic Capacitor
Capacitance: 0.68 µF
Capacitance Tolerance: ±10%
Rated Voltage: 50 VDC
Dielectric: X7R / BX characteristic
Capacitor Style: CKR06
Mounting Style: Through Hole
Package Type: Radial Leaded
Lead Spacing: 5.08 mm
Lead Style: Standoff
Operating Temperature: -55°C to +125°C
Failure Rate: P, 0.1% per 1,000 hours
Qualification: MIL-PRF-39014/02
RoHS Status: Not RoHS Compliant
Key Features
0.68 µF multilayer ceramic capacitor
±10% capacitance tolerance
50 VDC rated voltage
X7R ceramic dielectric
CKR06 radial-leaded construction
5.08 mm lead spacing
Standoff lead configuration
MIL-PRF-39014/02 qualification
P-level established reliability rating
Sold as one lot of 100 pieces
Applications
Military electronic assemblies
Aerospace control equipment
Defense communication systems
Power-supply filtering circuits
Signal bypass and decoupling
Industrial control assemblies
Test and measurement equipment
Avionics repair applications
Legacy equipment maintenance
High-reliability circuit production
Product Description

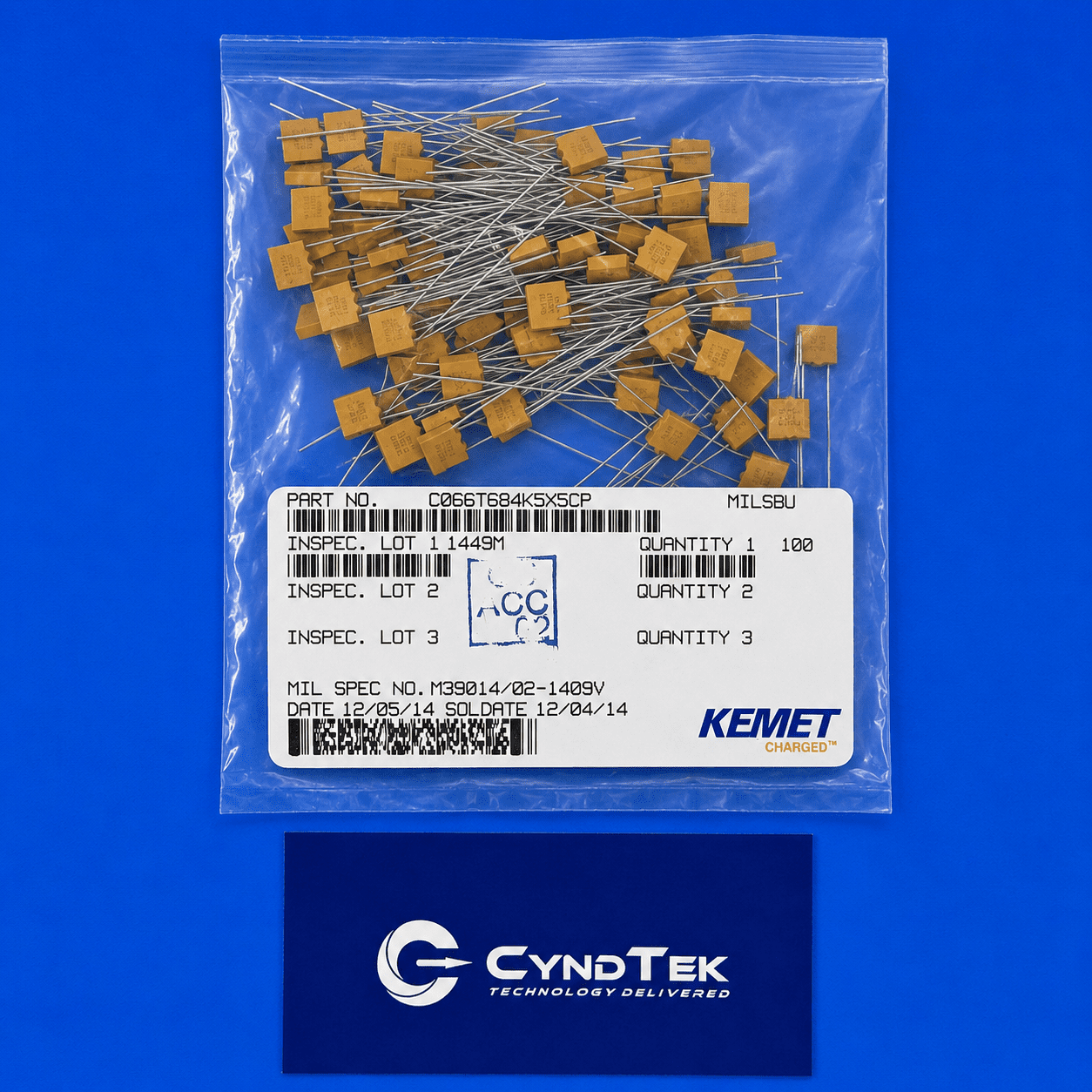

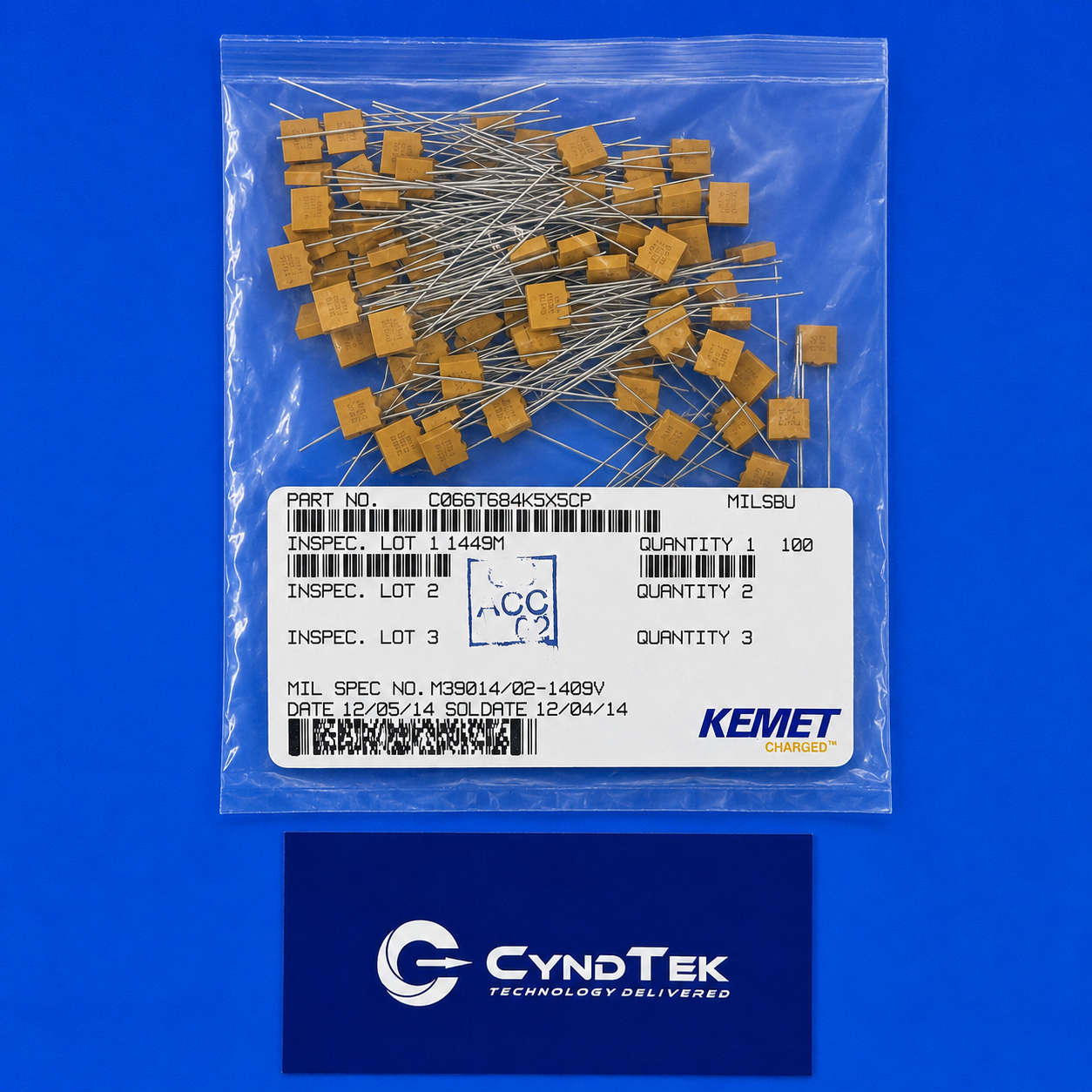

The C066T684K5X5CP from KEMET is a high-reliability multilayer ceramic capacitor designed for military, aerospace, industrial, and demanding electronic assemblies. It provides a capacitance value of 0.68 µF with a ±10% tolerance and a rated working voltage of 50 VDC. In addition, its radial-leaded construction makes it suitable for through-hole circuit board installation.
This capacitor uses an X7R ceramic dielectric and is associated with the BX military temperature characteristic. Therefore, it supports stable general-purpose capacitance performance across an operating temperature range of -55°C to +125°C. Its 5.08 mm lead spacing also supports common radial PCB layouts used in legacy and high-reliability equipment.
The C066T684K5X5CP is manufactured in the CKR06 style and cross-references to military part number M39014/02-1409V. The V suffix identifies a standoff lead configuration. Furthermore, the P failure-rate designation represents an established reliability level of 0.1% per 1,000 hours under the applicable military specification.
Because this component is qualified to MIL-PRF-39014/02, it is appropriate for applications that require documented military-grade ceramic capacitors. Typical uses include bypassing, decoupling, filtering, voltage stabilization, signal conditioning, and repair of military or aerospace electronic assemblies. However, buyers should confirm all drawing, screening, marking, and traceability requirements before approving the part for a controlled application.
Cyndtek® is offering C066T684K5X5CP as one complete lot of 100 pieces with date code 1346. The lot is suitable for production, maintenance, engineering stock, legacy-system support, and repair requirements. To request pricing or availability, visit our Cyndtek shop or contact sales@cyndtek.com with your target price and required delivery schedule.
