Specifications
Manufacturer: TDK Corporation

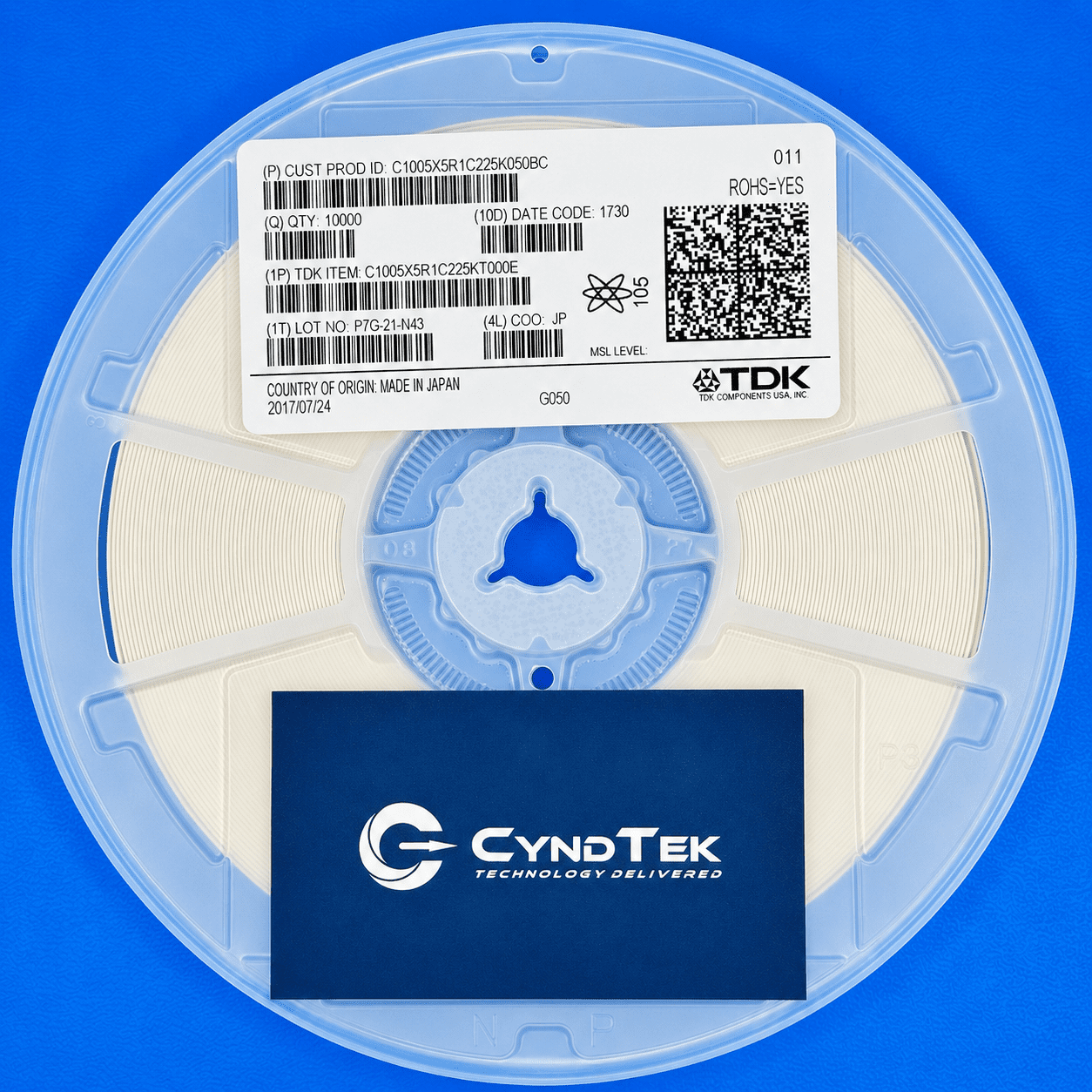

Part Number: C1005X5R1C225K050BC
Date Code: 1730
Quantity Available: 9,914 pieces
Product Type: Multilayer Ceramic Chip Capacitor
Capacitance: 2.2 µF
Capacitance Tolerance: ±10%
Rated Voltage: 16 VDC
Dielectric: X5R
Case Size: 0402 / 1005 Metric
Dimensions: 1.0 × 0.5 × 0.5 mm
Mounting Style: Surface Mount
Operating Temperature: -55°C to +85°C
Soldering Method: Reflow
Grade: Commercial Grade
AEC-Q200 Qualified: No
Packaging: Paper Tape
Key Features
0402 multilayer ceramic chip capacitor
2.2 µF capacitance value
±10% capacitance tolerance
16 VDC rated voltage
X5R temperature characteristic
Compact 1005 metric package
Surface-mount construction
Suitable for reflow soldering
Commercial-grade TDK C Series component
Sold as one lot of 9,914 pieces
Applications
Power-supply bypass circuits
Decoupling and noise suppression
Voltage stabilization circuits
Consumer electronic equipment
Telecommunications equipment
Industrial control boards
Portable electronic devices
Computer and peripheral assemblies
Prototype and production PCB builds
Maintenance and replacement inventory
Product Description
The C1005X5R1C225K050BC from TDK Corporation is a commercial-grade multilayer ceramic chip capacitor designed for compact surface-mount electronic assemblies. It provides 2.2 µF capacitance with a ±10% tolerance and a rated voltage of 16 VDC. In addition, its small 0402 package helps conserve space in densely populated printed circuit board designs.
This capacitor uses an X5R dielectric, which provides stable general-purpose performance across its specified operating temperature range. Therefore, it is well suited for bypass, decoupling, filtering, and voltage-stabilization functions where compact size and dependable electrical performance are important. The operating temperature range extends from -55°C to +85°C.
The C1005 designation identifies a 1005 metric package, which corresponds to the 0402 imperial case size. Its approximate dimensions are 1.0 × 0.5 × 0.5 mm. As a result, the component is suitable for automated pick-and-place assembly and reflow soldering processes. The paper-tape packaging also supports efficient handling in production environments.
This part is classified as a commercial-grade TDK C Series capacitor. It is not an AEC-Q200-qualified automotive component, and it should not be described as military-grade or high-reliability without additional manufacturer documentation. However, it is suitable for many general electronic applications, including consumer devices, telecommunications equipment, industrial controls, computing hardware, and power-management circuits.
Cyndtek® is offering C1005X5R1C225K050BC as one complete lot of 9,914 pieces. The full lot is useful for manufacturing, prototyping, repair operations, engineering stock, and ongoing maintenance requirements. To request pricing or availability, visit our Cyndtek shop or contact sales@cyndtek.com with your target price and required delivery schedule.
