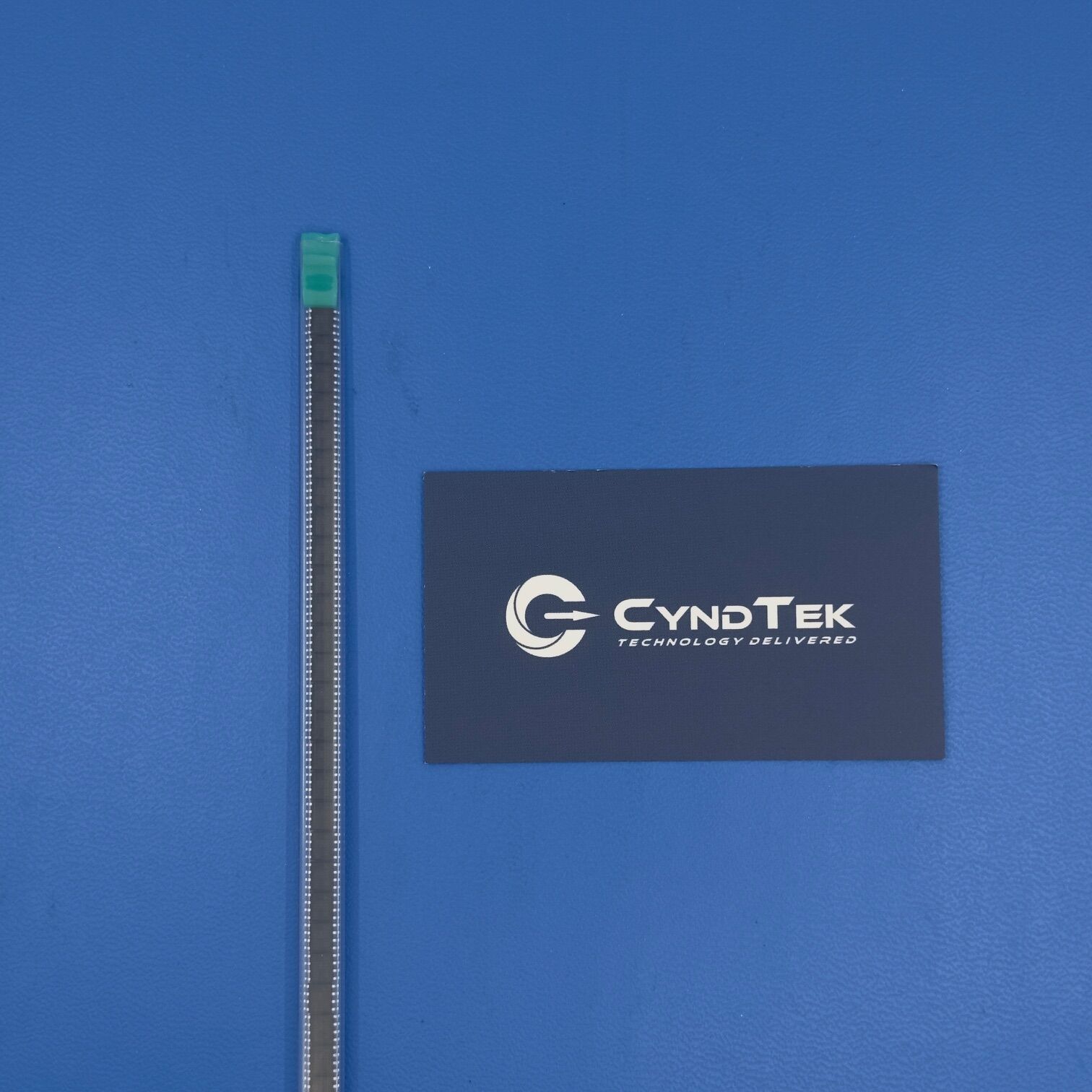

CA3130AMZ Specifications
Manufacturer: Intersil
Part Number: CA3130AMZ
Product Type: Operational Amplifier
Amplifier Type: CMOS Operational Amplifier
Number of Circuits: 1
Input Type: MOSFET Input Stage
Supply Voltage Range: 4 V to 16 V
Input Offset Voltage: Low Offset Design
Output Type: Linear Analog Output
Package Type: SOIC-8
Mounting Type: Surface Mount
Input Bias Current: Extremely Low Bias Current
Operating Temperature Range: -40°C to +85°C
Applications Class: Precision Analog Circuits
Packaging: Factory
Key Features
The CA3130AMZ is a CMOS operational amplifier designed for precision analog signal amplification. It features a MOSFET input stage which provides extremely low input bias current. Additionally, the amplifier supports a wide supply voltage range which allows flexible circuit design. Because the device combines low input current with high input impedance, engineers frequently use it in high impedance measurement circuits. As a result, the CA3130AMZ supports stable signal amplification in precision analog systems.
Applications
Instrumentation amplifier circuits
Sensor signal conditioning systems
High impedance measurement circuits
Industrial control electronics
Analog signal processing circuits
Data acquisition systems
Laboratory test equipment
Embedded analog control systems
Product Overview
The CA3130AMZ operational amplifier from Intersil provides reliable analog signal amplification for precision electronic systems. First, the MOSFET input stage supports extremely high input impedance which reduces loading effects in measurement circuits.
Additionally, the device offers low input bias current which improves accuracy when amplifying small signals from sensors or instrumentation devices. Because precision analog circuits often require stable amplification characteristics, CMOS operational amplifiers remain widely used in instrumentation electronics.
Moreover, the SOIC-8 surface mount package allows compact circuit board integration and reliable automated assembly. Engineers frequently use the CA3130AMZ in industrial electronics, data acquisition systems, and precision signal conditioning circuits.
Therefore, the CA3130AMZ remains a dependable operational amplifier for analog electronics that require high input impedance and stable signal amplification.
