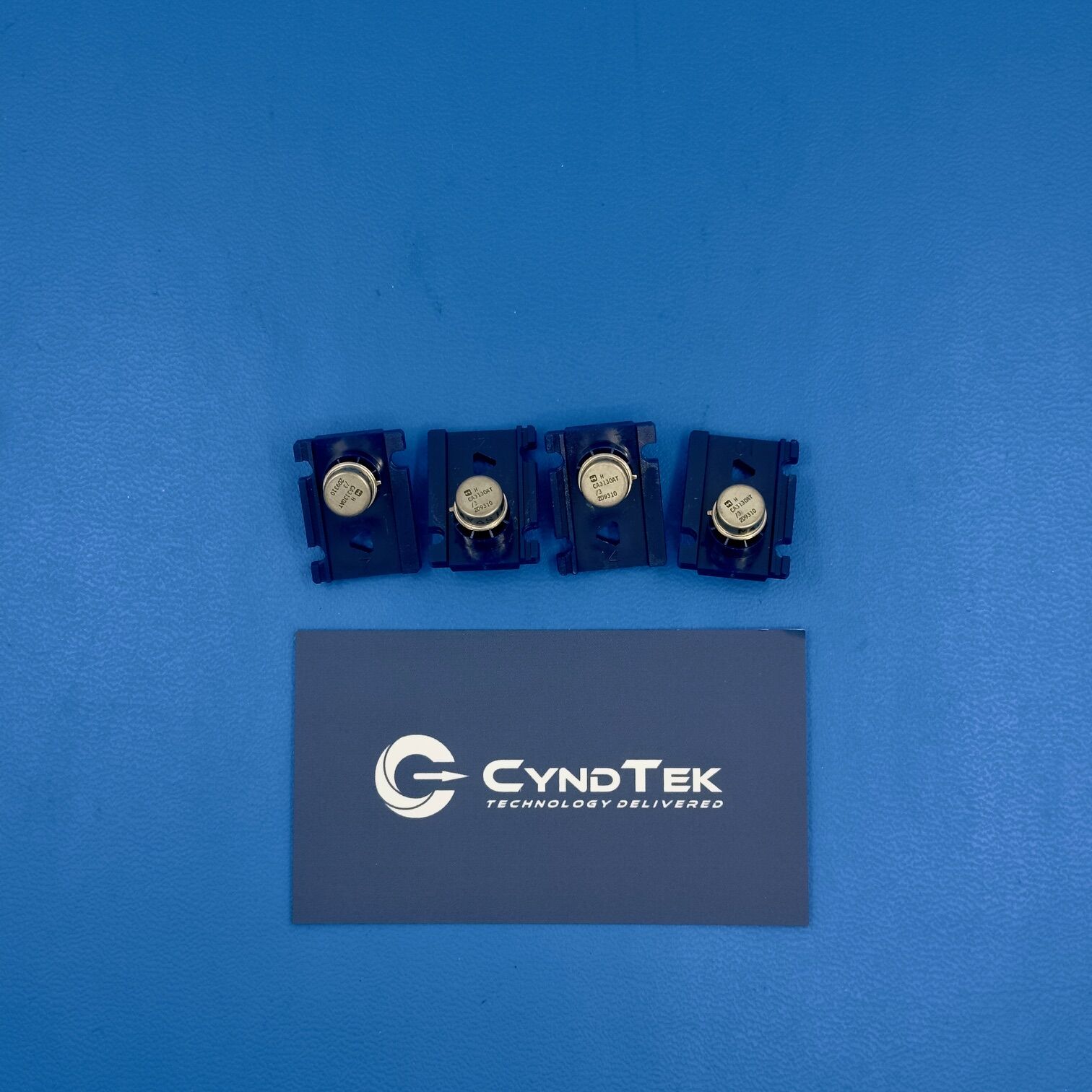

CA3130AT/3 Specifications
Manufacturer: Renesas
Part Number: CA3130AT/3
NSN: 5962-01-159-8742
Product Type: Operational Amplifier
Amplifier Type: CMOS Op Amp
Supply Voltage Range: 4 V to 16 V
Input Offset Voltage: Low Offset Design
Input Bias Current: Very Low
Gain Bandwidth Product: 15 MHz
Slew Rate: 10 V/µs
Output Type: Single-Ended
Package Type: TO-92
Operating Temperature Range: -55°C to +125°C
Compliance: MIL-Qualified Equivalent
Packaging: Factory
Key Features
The CA3130AT/3 is a high-performance CMOS operational amplifier designed for precision analog applications. It offers wide bandwidth and high slew rate for fast signal response. Additionally, the extremely low input bias current supports high-impedance sensor interfacing. The TO-92 package provides compact through-hole installation. Because it supports a broad supply voltage range, it integrates easily into mixed-signal systems. As a result, it delivers stable amplification in demanding electronic environments.
Applications
Precision signal conditioning circuits
Sensor interface modules
Aerospace instrumentation systems
Ground vehicle control electronics
Industrial measurement equipment
Audio preamplifier stages
Voltage follower and buffer circuits
High impedance data acquisition systems
Product Overview
The CA3130AT/3 from Renesas delivers dependable analog amplification for precision applications. First, its CMOS input stage supports very low input current operation. Furthermore, the high gain bandwidth product allows accurate signal amplification at higher frequencies. Because it operates across a wide supply voltage range, it fits both single-supply and dual-supply systems.
Moreover, the TO-92 package simplifies integration into legacy through-hole designs. In addition, its stable performance across extended temperature ranges supports industrial and defense applications. Therefore, it is suitable for both maintenance replacements and new circuit builds. Overall, this operational amplifier provides dependable performance, low noise characteristics, and consistent analog signal accuracy.
