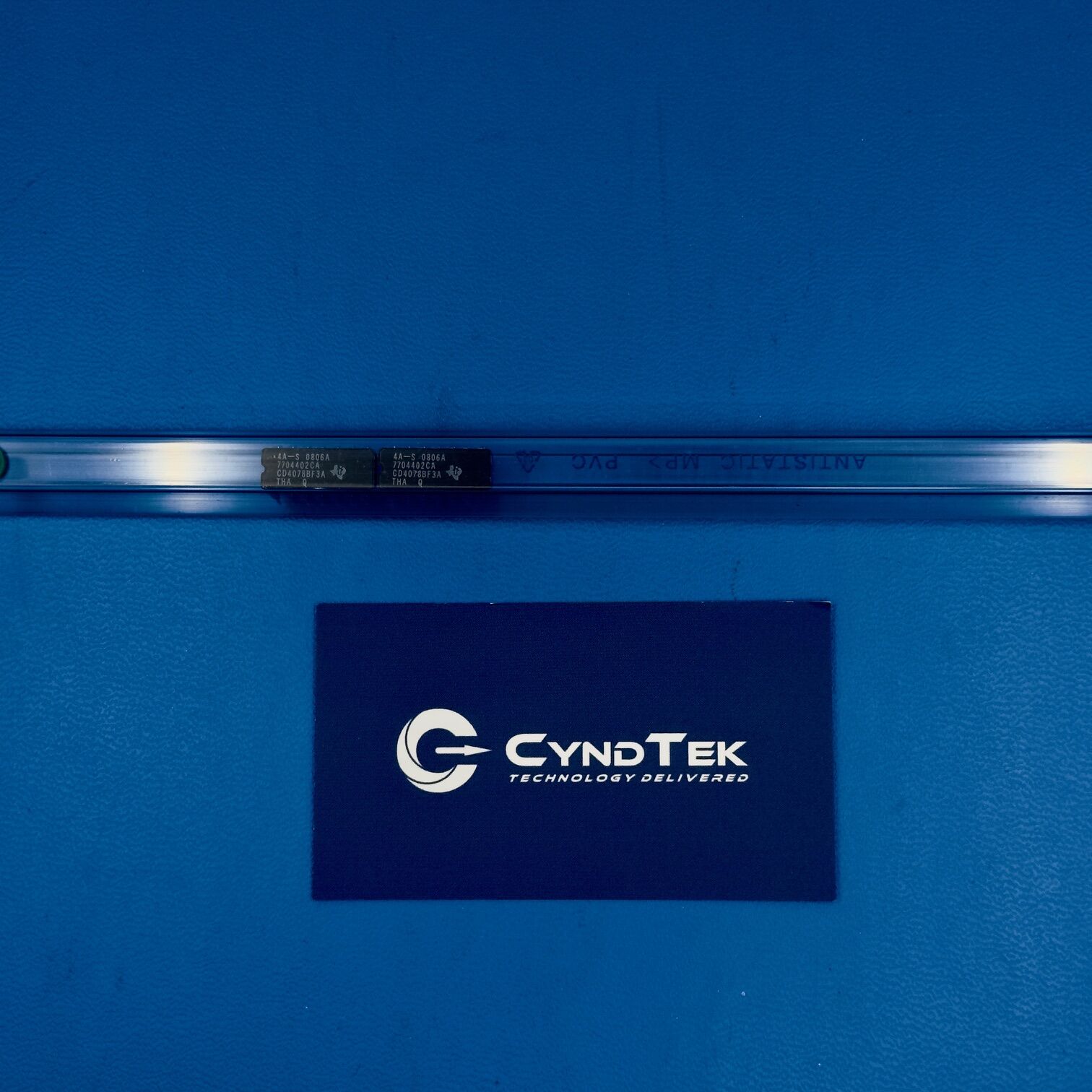

CD4078BF3A Specifications
Manufacturer: Texas Instruments
Part Number: CD4078BF3A
NSN: 5962-01-210-3186
Device Type: Logic Gate
Function: 8-Input NOR Gate
Number of Circuits: 1
Logic Family: CMOS 4000 Series
Supply Voltage Range: 3 V to 15 V
Output Type: CMOS
Propagation Delay: Standard CMOS
Package Type: 14-Lead Ceramic DIP
Mounting Type: Through Hole
Operating Temperature Range: -55°C to +125°C
Compliance: MIL-STD Ceramic Package
Packaging: Factory
Key Features
The CD4078BF3A is a ceramic packaged CMOS logic device designed for high-reliability digital systems. It provides an 8-input NOR gate configuration within a single circuit. Additionally, the wide supply voltage range supports flexible logic design. The ceramic DIP construction enhances environmental durability and long-term stability. Because it utilizes CMOS technology, it offers low power consumption with high noise immunity. As a result, it delivers dependable digital logic performance in aerospace and defense applications.
Applications
Military avionics digital systems
Ground vehicle communication modules
Naval control electronics
Aerospace instrumentation logic circuits
Defense digital interface boards
Industrial automation controls
Signal conditioning logic networks
High-reliability embedded systems
Product Overview
The CD4078BF3A from Texas Instruments delivers stable CMOS logic performance in demanding environments. First, its 8-input NOR configuration simplifies complex logic combinations. Furthermore, the wide operating voltage range supports integration across various system architectures. Because it is housed in a ceramic DIP package, it withstands thermal and mechanical stress.
Moreover, CMOS construction ensures reduced power consumption compared to bipolar alternatives. In addition, through-hole mounting supports legacy board designs and serviceability. Therefore, it is suitable for both new system builds and maintenance replacements. Overall, this logic gate IC provides reliable switching performance, rugged packaging, and long-term operational stability.
