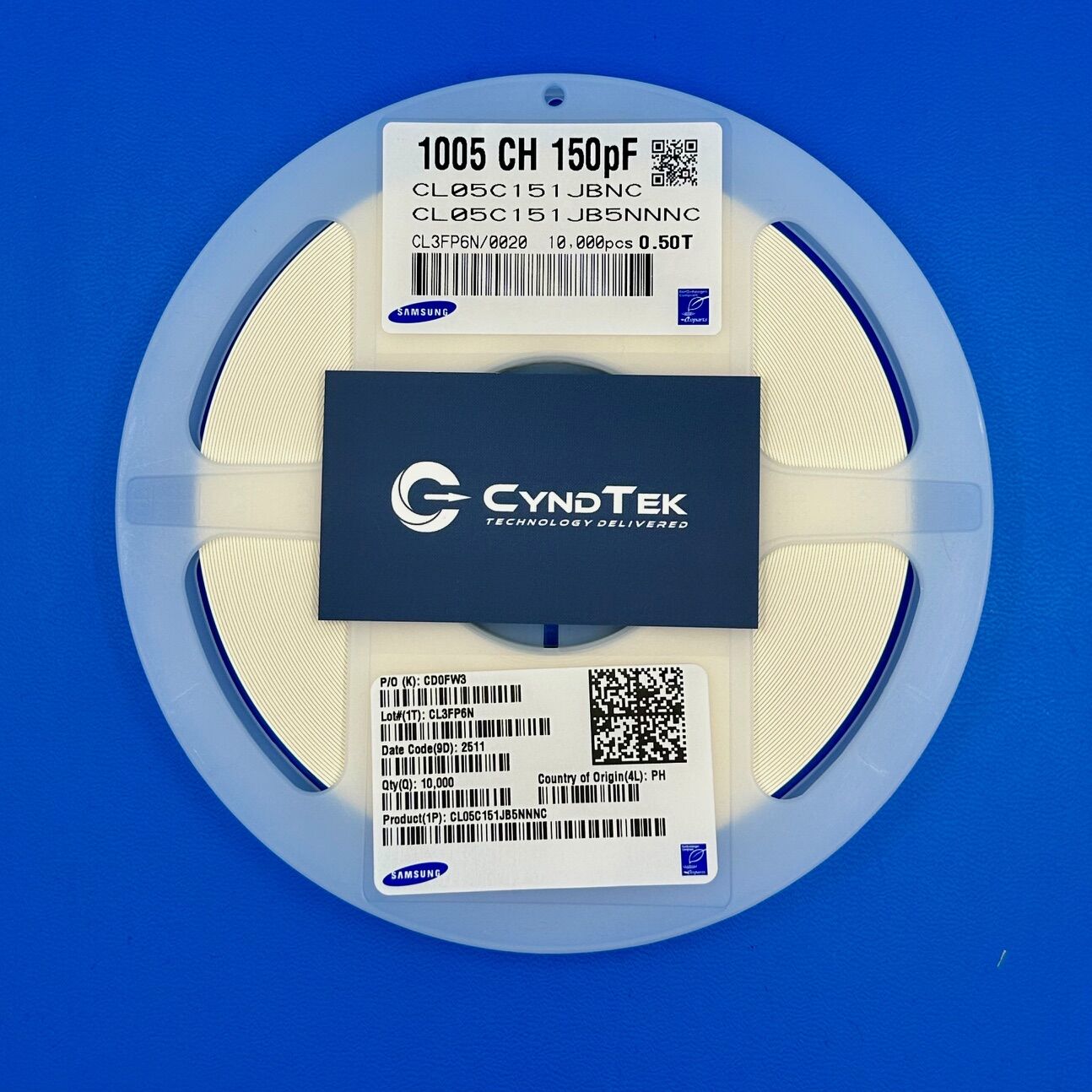

CL05C151JB5NNNC

CL05C151JB5NNNC

Manufacturer: Samsung Electro-Mechanics
Part Type: Multilayer Ceramic Capacitor (MLCC)
Capacitance: 150 pF
Rated Voltage: 50 V DC
Tolerance: ±5% (J)
Dielectric Type: C0G/NP0
Case Size / Code: 0402 (EIA 1005, 1.0 mm × 0.5 mm)
Mounting Type: Surface Mount (SMD)
Temperature Coefficient: 0 ±30 ppm/°C
Operating Temperature Range: -55°C to +125°C
Insulation Resistance: ≥10 GΩ
Dissipation Factor: 0.1% max at 1 MHz
Polarity: Non-polarized
Compliance: RoHS Compliant, Halogen Free
Applications: Precision circuits, filtering, and RF

Key Features

The CL05C151JB5NNNC is a compact multilayer ceramic capacitor designed for high-stability applications. With a capacitance value of 150 pF and ±5% tolerance, it ensures precise operation in RF and signal-sensitive circuits. Its C0G/NP0 dielectric guarantees ultra-low drift over temperature and voltage changes, delivering highly stable performance. The 0402 package size allows space-efficient integration in high-density designs. RoHS and halogen-free compliance further make this MLCC suitable for environmentally conscious applications.

Applications

High-frequency RF modules
Precision oscillator circuits
Filter and matching networks
Medical instrumentation
Telecommunication systems
Aerospace navigation equipment
Consumer electronics
Automotive infotainment and control units
Industrial monitoring systems
Wireless connectivity devices

Typical Uses:

1. RF and high-frequency signal filtering

2. Resonant and impedance-matching circuits

3. Timing circuits in oscillators

4. Coupling/decoupling in sensitive analog and RF stages

5. Bypass for low-noise amplifiers and mixers

Its compact 0402 package makes it ideal for smartphones, wireless modules, IoT devices, and other space-constrained electronics.

Product Overview

The Samsung Electro-Mechanics CL05C151JB5NNNC provides reliable capacitance with excellent thermal stability, thanks to its C0G/NP0 dielectric. Designed for precision use cases, it maintains consistent electrical characteristics over wide operating conditions. Its small 0402 package footprint is ideal for compact, high-performance boards where space is limited. With high insulation resistance and low dissipation factor, this MLCC is particularly effective in RF, timing, and filtering applications. By combining accuracy, stability, and environmental compliance, it supports critical designs in both consumer and industrial markets.
