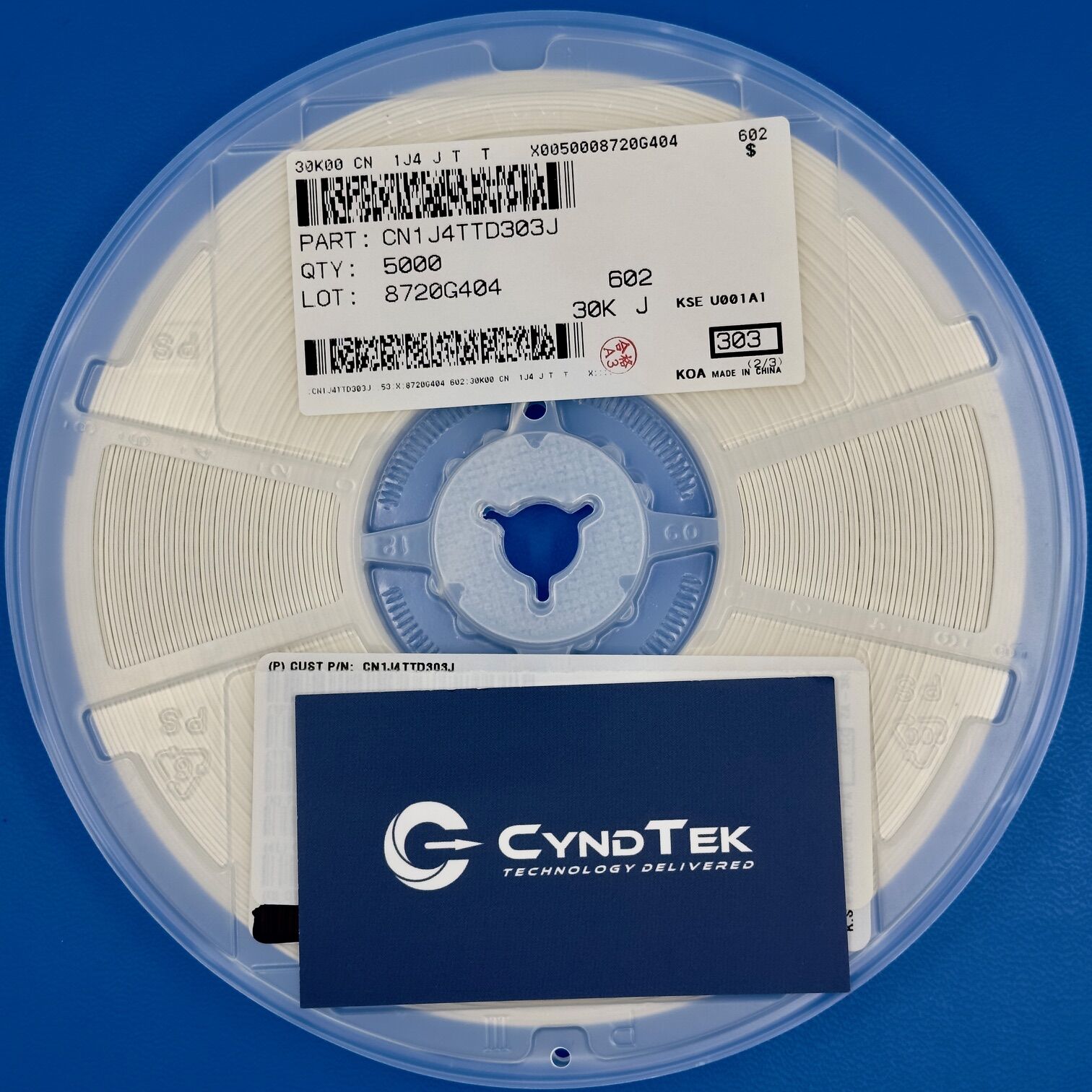

CN1J4TTD303J Specifications
Manufacturer: KOA Speer
Part Number: CN1J4TTD303J
Product Type: Thick Film Chip Resistor
Resistance: 30 kOhm
Resistance Tolerance: ±5%
Power Rating: 0.125 W
Package Size: 0805 SMD
Mounting Type: Surface Mount
Resistor Technology: Thick Film
Temperature Coefficient: ±200 ppm/°C
Operating Temperature Range: -55°C to +155°C
Termination Style: Wraparound SMD Termination
Series: CN1J General Purpose Resistor
Applications Class: General Purpose Electronics
Packaging: Factory
Key Features
The CN1J4TTD303J is a thick film surface mount resistor designed for general purpose electronic circuits. It provides a resistance value of 30 kOhm with a ±5% tolerance and supports a power rating of 0.125 watt. Additionally, the 0805 package size allows efficient board layout while maintaining reliable power handling for signal and control circuits. Because the resistor uses KOA Speer thick film technology, it provides stable electrical characteristics and dependable long-term performance. As a result, engineers frequently integrate this component into modern electronic assemblies.
Applications
Signal conditioning circuits
Voltage divider networks
Embedded control electronics
Consumer electronic circuit boards
Industrial control systems
Power supply feedback networks
Digital logic pull-up networks
General purpose circuit design
Product Overview
The CN1J4TTD303J resistor from KOA Speer supports compact electronic designs that require stable resistance values and reliable performance. First, the 0805 surface mount package allows engineers to maintain high component density in modern circuit boards.
Additionally, the thick film construction provides dependable electrical characteristics across a wide operating temperature range. Because many electronic systems operate under varying environmental conditions, stable resistor performance is important for maintaining circuit reliability.
Moreover, the wraparound termination design supports strong solder connections during automated assembly. This capability helps ensure reliable electrical contact during high-volume manufacturing processes.
Therefore, designers frequently select the CN1J4TTD303J for signal conditioning, voltage divider networks, and general purpose circuit applications in industrial and consumer electronic equipment.
