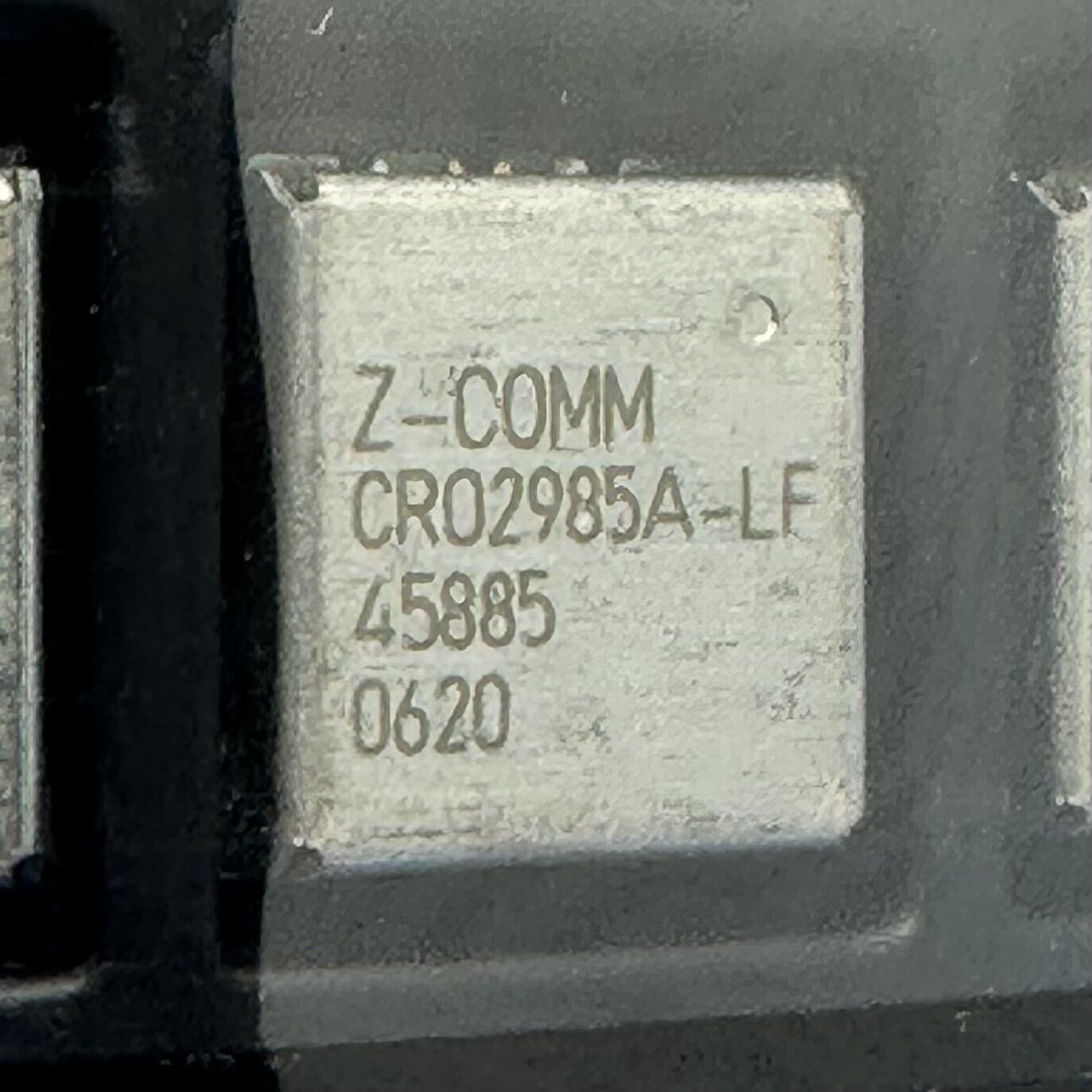

CRO2985A-LF

CRO2985A-LF Specifications

Manufacturer: Z-Communications, Inc.
Part Number: CRO2985A-LF
Product Type: Voltage-Controlled Oscillator (VCO)
Frequency Range: 2970 MHz to 3000 MHz
Tuning Voltage: 0.5 V to 4.5 V
Output Power: 6 dBm ±3 dB
Phase Noise (10 kHz offset): -105 dBc/Hz
Harmonic Suppression: -15 dBc
Supply Voltage: 5 V
Supply Current: 20 mA
Pushing: 0.5 MHz/V
Pulling: 1 MHz
Tuning Sensitivity: 10 MHz/V
Package Type: Surface Mount Module
Package Dimensions: Not specified
Operating Temperature Range: Not specified
RoHS Status: RoHS Compliant

Key Features

The CRO2985A-LF from Z-Communications, Inc. is a high-performance voltage-controlled oscillator (VCO) operating within a frequency range of 2970 MHz to 3000 MHz. It delivers an output power of 6 dBm with a variation of ±3 dB, ensuring consistent signal strength. The phase noise is rated at -105 dBc/Hz at a 10 kHz offset, providing clear signal transmission. With a tuning voltage range from 0.5 V to 4.5 V and a tuning sensitivity of 10 MHz/V, it offers precise frequency control. The device operates on a 5 V supply voltage, drawing a current of 20 mA, making it suitable for low-power applications. Its surface mount package facilitates easy integration into various circuit designs.

Applications

Satellite communication systems requiring stable frequency sources
Point-to-point microwave radios operating in the 3 GHz band
Test and measurement equipment needing precise signal generation
Wireless local area networks (WLAN) in the 2.9 GHz to 3.0 GHz range
Industrial automation systems utilizing high-frequency communication links

Product Overview

Z-Communications’ CRO2985A-LF is engineered to provide reliable and precise frequency generation for applications operating around the 3 GHz spectrum. Its low phase noise and consistent output power make it ideal for high-performance communication systems. The VCO’s tuning capabilities allow for flexible frequency selection, accommodating various design requirements. Operating with low power consumption, it is suitable for portable and battery-operated devices. The surface mount package ensures straightforward integration into compact electronic assemblies. Compliance with RoHS standards reflects Z-Communications’ commitment to environmentally responsible manufacturing practices.
