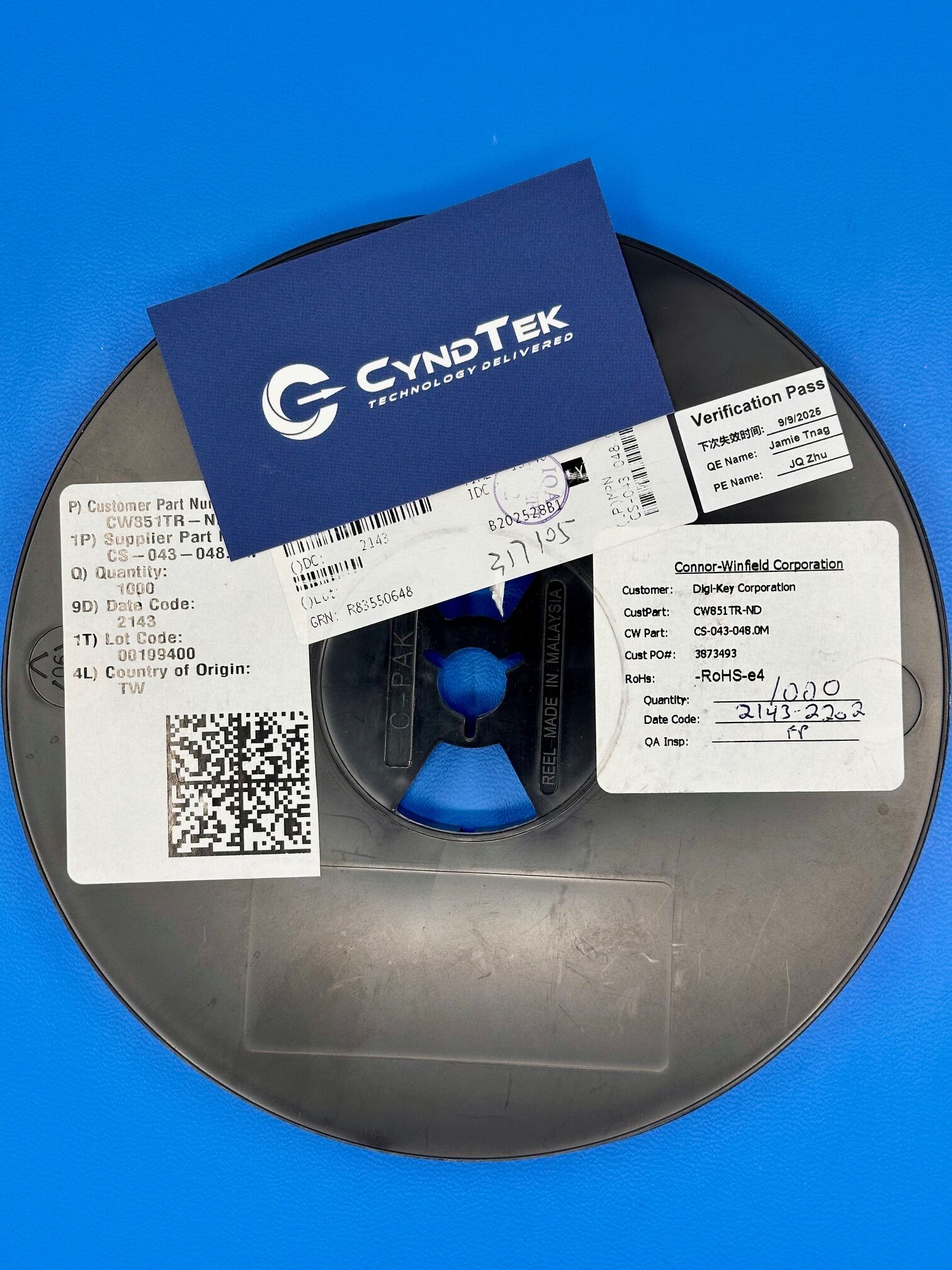

CS-043-048.0M Specifications
Manufacturer: Connor-Winfield
Part Number: CS-043-048.0M
Product Type: Quartz Crystal
Frequency: 48.0 MHz
Load Capacitance: 8 pF
Frequency Tolerance: ±15 ppm
Frequency Stability: ±25 ppm
Operating Temperature Range: -20°C to +70°C
Package / Case: 3.2mm x 2.5mm SMD, 4-pad
Mounting Type: Surface Mount
Shunt Capacitance: 5 pF (maximum)
Drive Level: 100 µW (maximum)
Aging: ±3 ppm/year
Equivalent Series Resistance (ESR): 40 Ω (maximum)
RoHS Status: RoHS Compliant
Key Features
The CS-043-048.0M is a high-frequency quartz crystal from Connor-Winfield, operating at 48.0 MHz with an 8 pF load capacitance. It offers a frequency tolerance of ±15 ppm and a stability of ±25 ppm over the operating temperature range of -20°C to +70°C. Housed in a compact 3.2mm x 2.5mm surface-mount package, it is designed for applications requiring precise timing. Its low equivalent series resistance (ESR) of 40 Ω ensures efficient performance in oscillator circuits.
Applications
Wireless communication devices
Microprocessor clocking
Networking equipment
Instrumentation
Consumer electronics
Industrial control systems
Product Overview
The CS-043-048.0M quartz crystal provides reliable and accurate frequency control for various electronic applications. Its compact SMD package facilitates easy integration into space-constrained designs. With a low shunt capacitance and drive level, it minimizes power consumption, making it suitable for portable devices. Additionally, its tight frequency tolerance and stability ensure consistent performance, essential for applications requiring precise timing. The crystal’s RoHS compliance aligns with environmental and safety standards, making it a dependable choice for modern electronic systems.
