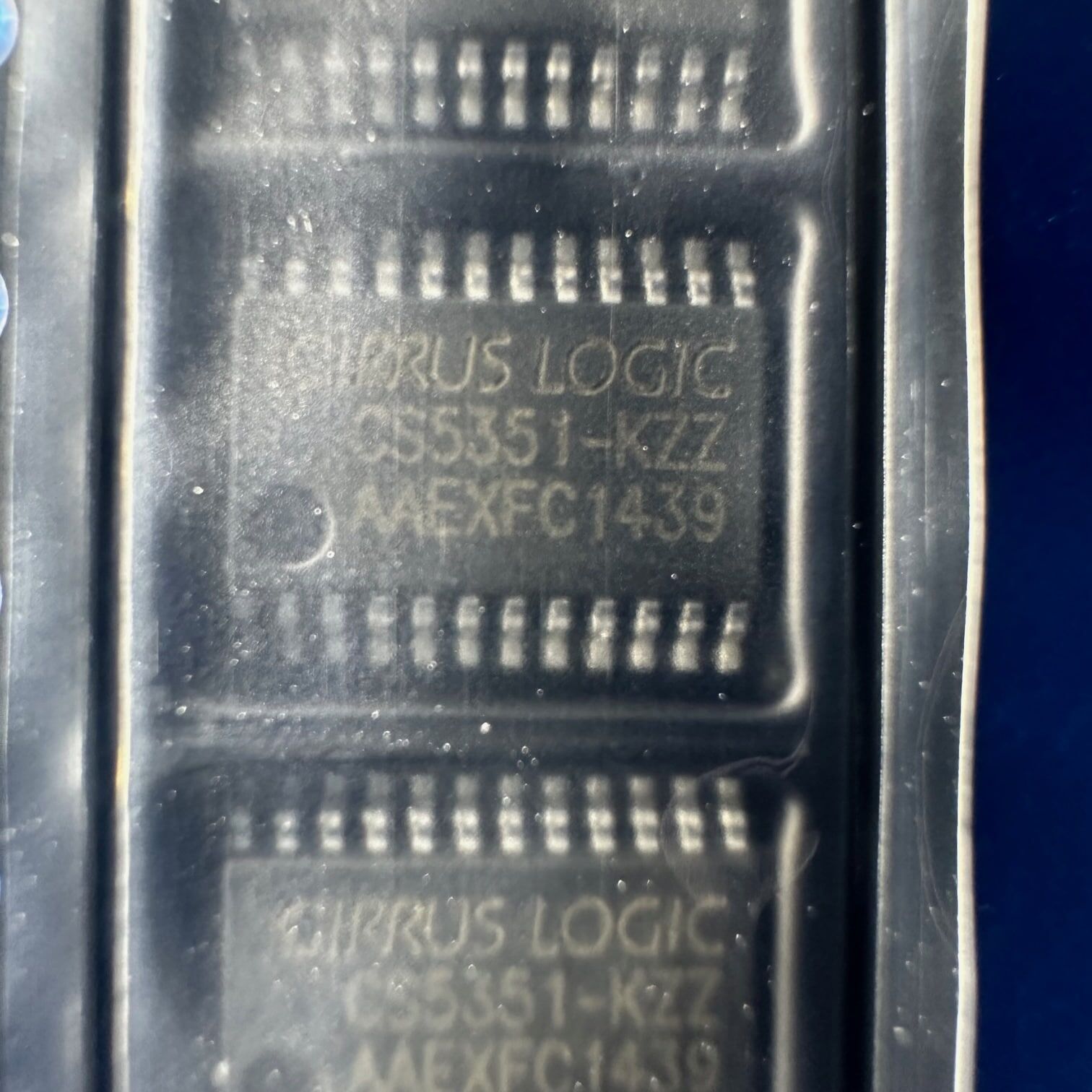

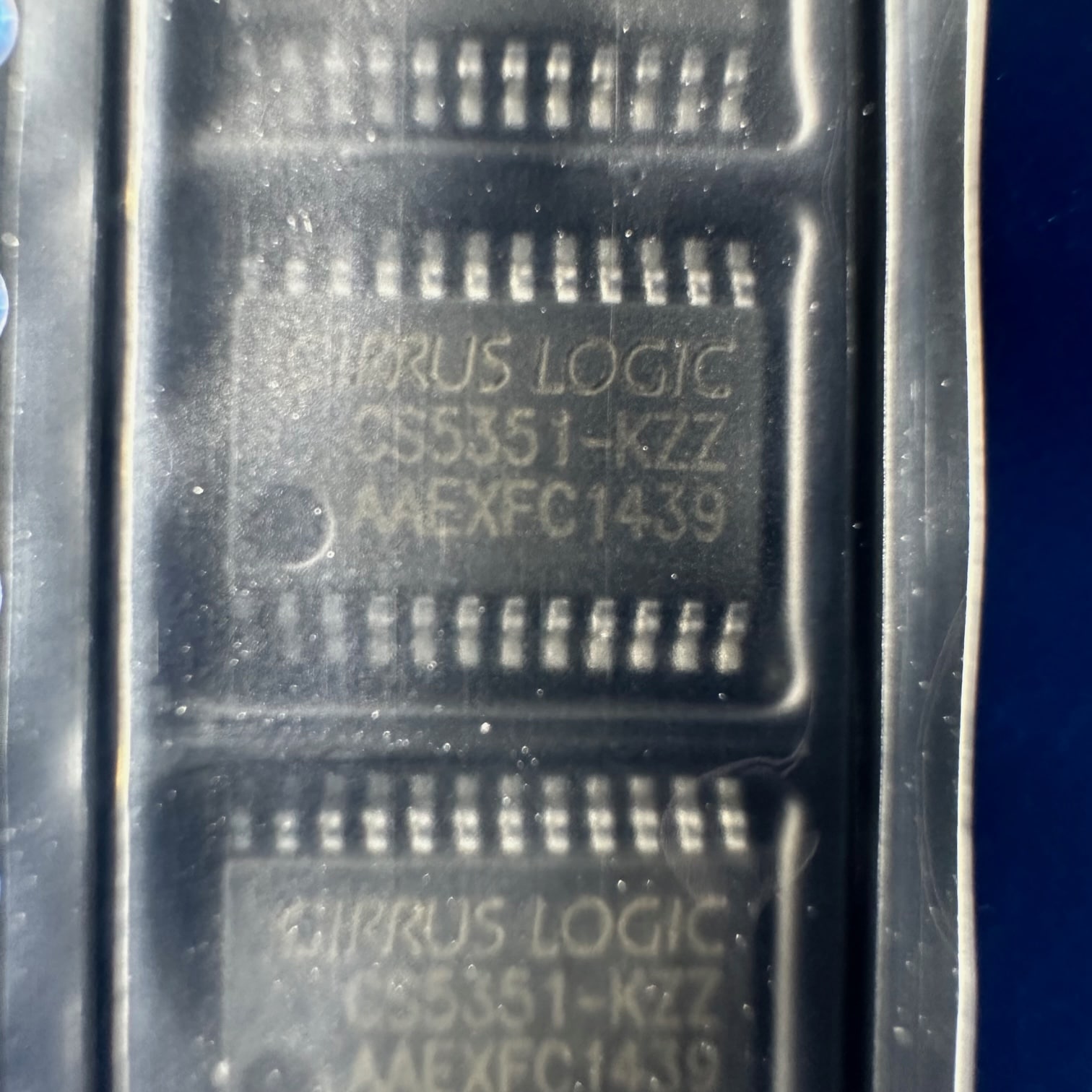

CS5351-KZZR

CS5351-KZZR Specifications:

• Multi-bit Delta-Sigma Architecture: Advanced design for precision.
• Resolution: 24-bit, providing high-quality conversions.
• Dynamic Range: 108 dB, ensuring accurate representation of audio signals.
• THD+N: -98 dB, minimizing distortion for clear sound.
• Sampling Rates: Supports up to 192 kHz for high-fidelity audio capture.
• Power Consumption: Low power usage at 135 mW, enhancing energy efficiency.
• Input Voltage: Handles 2.8 Vp-p for flexible signal processing.
• Operating Voltage: 3.3 V, ensuring reliable performance.
• Analog Inputs: Two single-ended inputs for versatile connectivity.

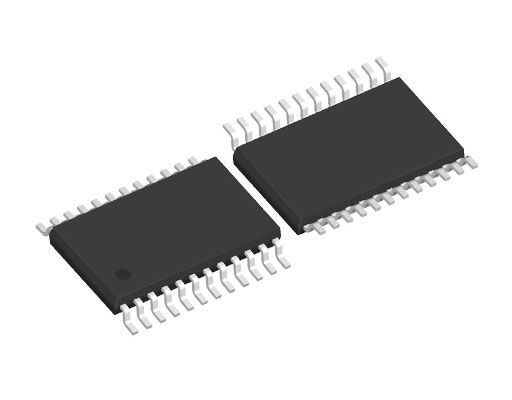

• Package Type: TSSOP, offering a compact and durable form factor.
• Temperature Range: Operates reliably between -10°C to 70°C.
• Screening Level: Commercial-grade for dependable quality.
• Internal Voltage Reference: Integrated for precise conversions.
• Digital Interface: Serial communication for seamless data transmission.
• Pin Count: 24, facilitating easy integration into various systems.

Additional Information:

The CS5351-KZZR stands as a comprehensive analog-to-digital converter tailored for digital audio systems. This device excels in sampling, analog-to-digital conversion, and anti-alias filtering. It delivers 24-bit values for both left and right inputs in serial form, reaching sample rates of up to 192 kHz per channel. The CS5351 features a 5th-order, multi-bit, delta-sigma modulator coupled with digital filtering and decimation, eliminating the need for an external anti-alias filter.

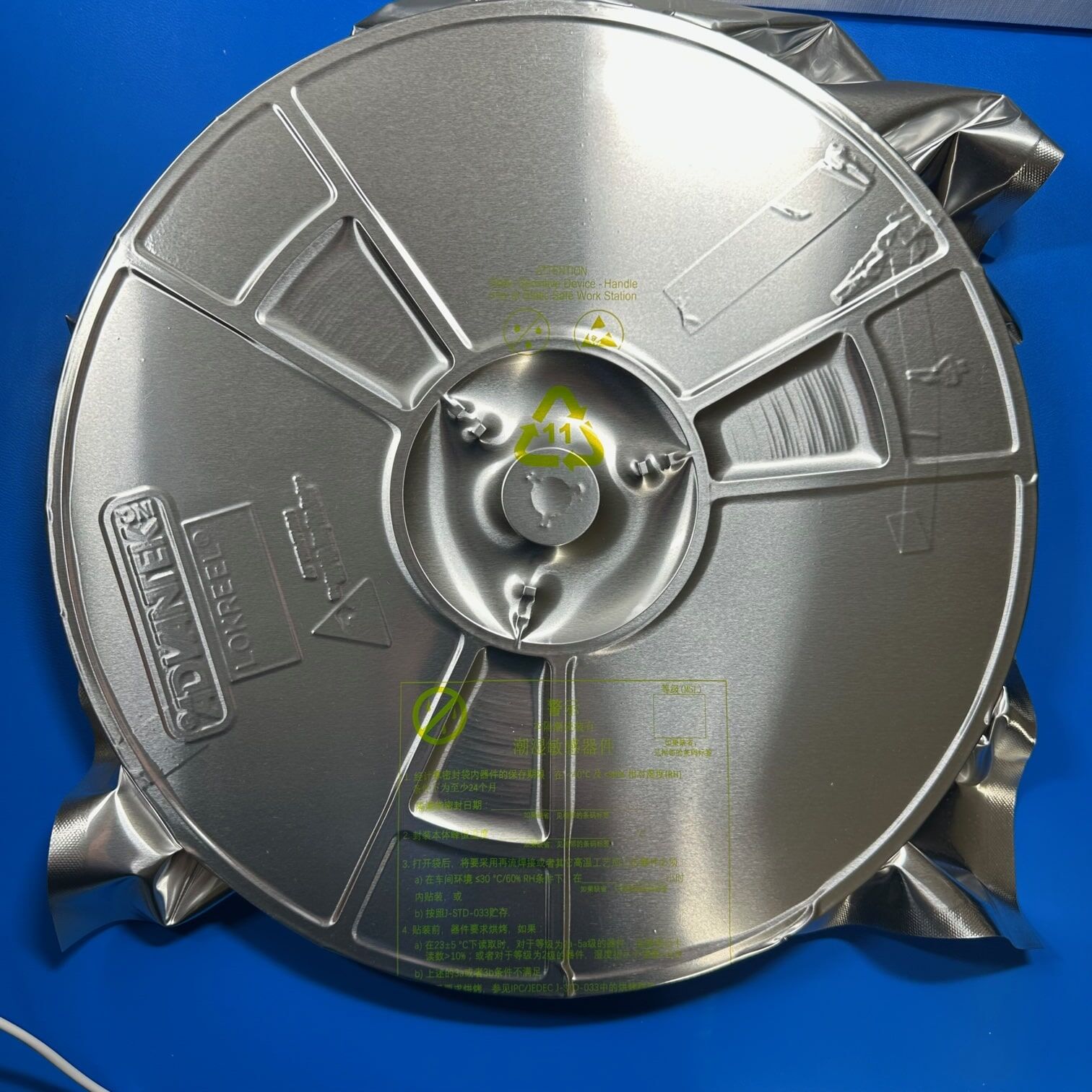

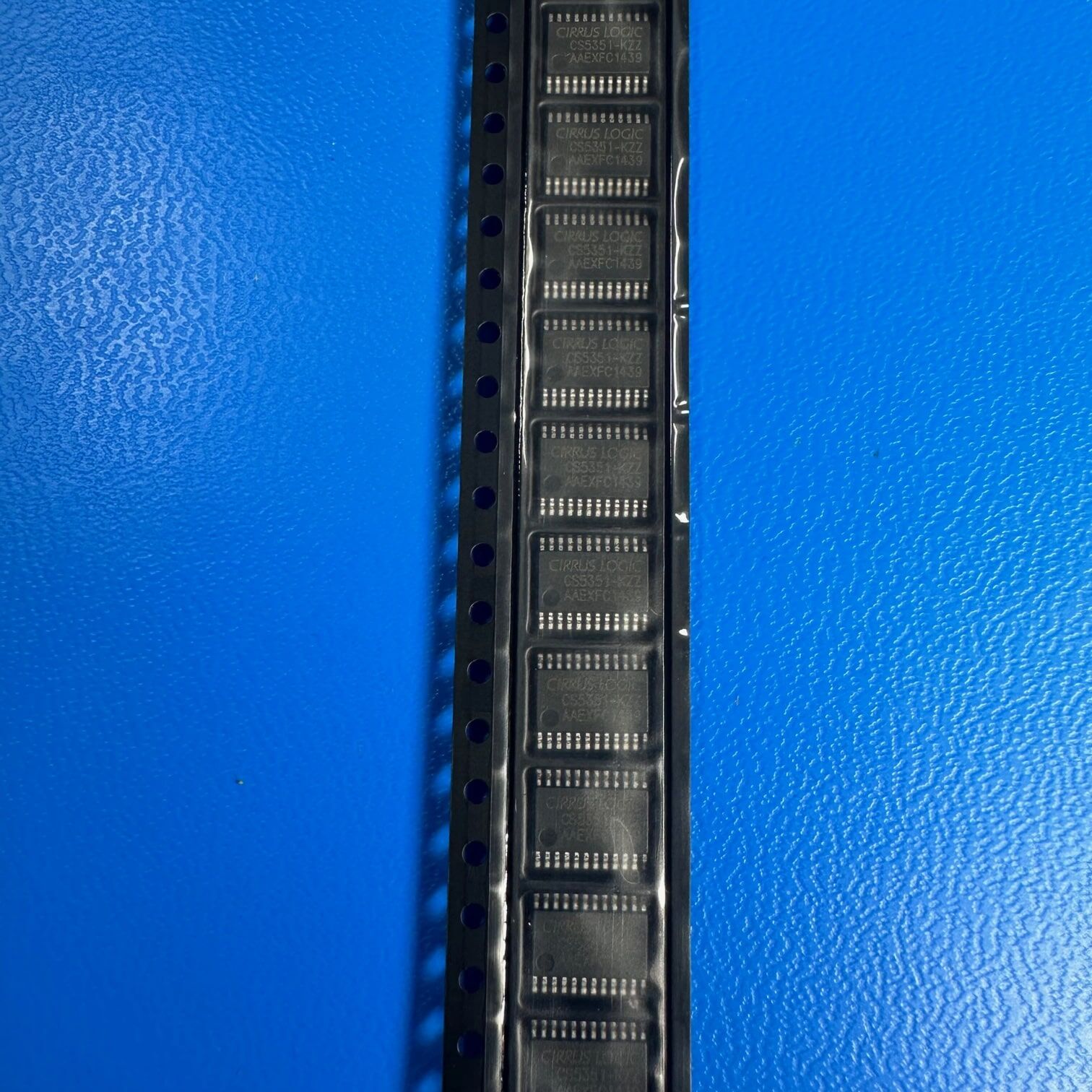

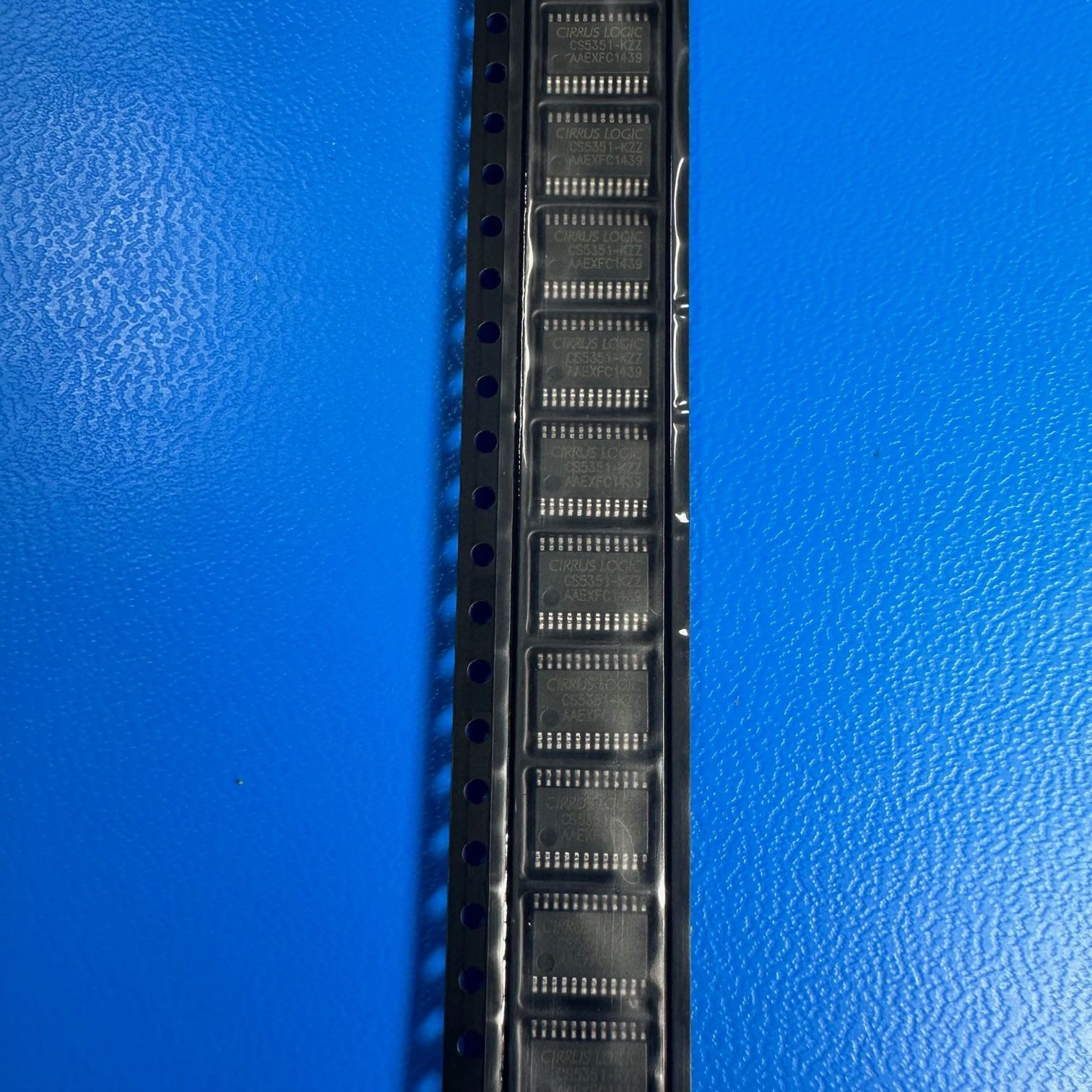

Employing a differential architecture, this ADC ensures exceptional noise rejection. It’s an ideal choice for audio systems demanding wide dynamic range, minimal distortion, and low noise. Applications such as A/V receivers, DVD-R, CD-R, digital mixing consoles, and effects processors benefit from its superior performance. Products available in tape and reel.
