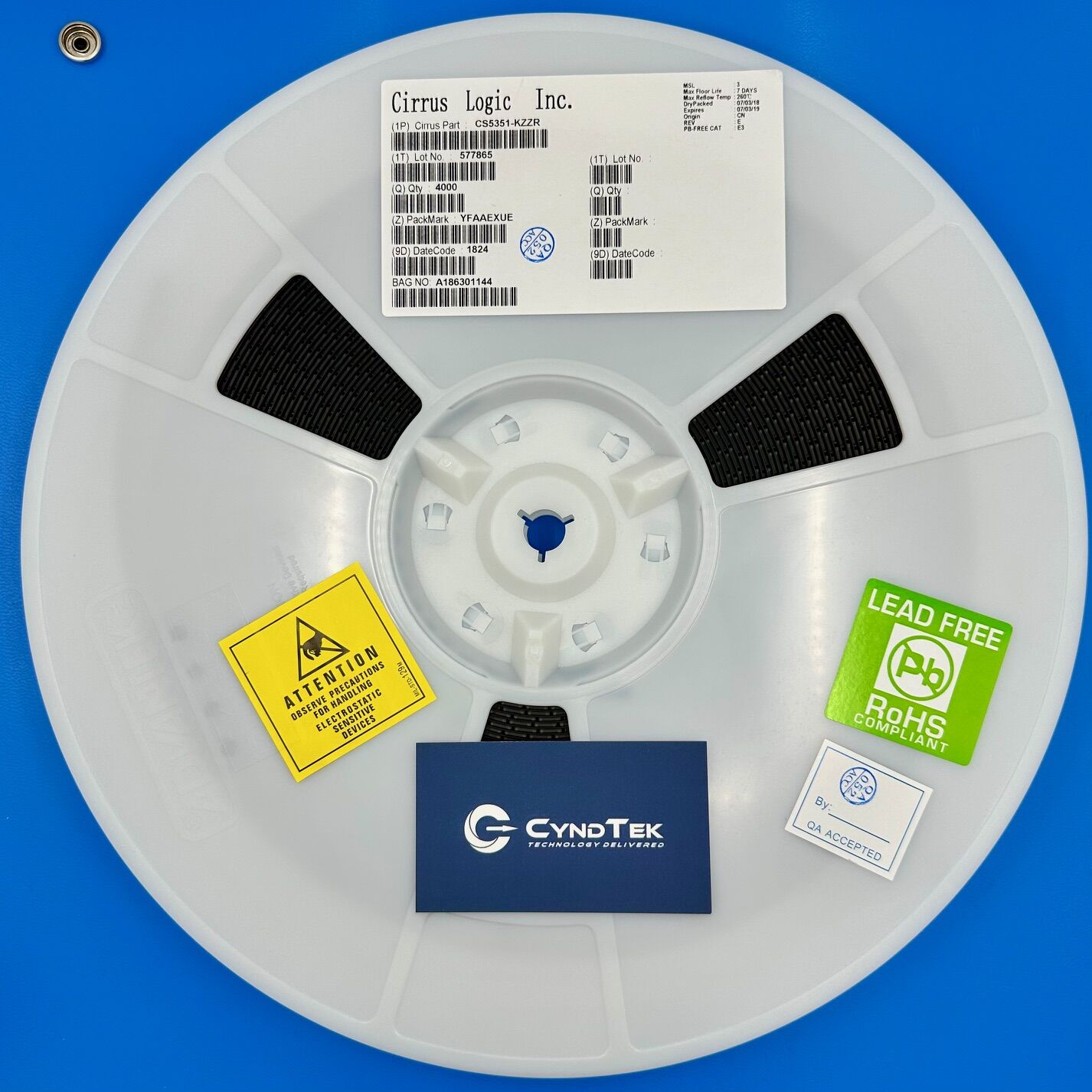

CS5351-KZZR

CS5351-KZZR Specifications

Manufacturer: Cirrus Logic
Part Number: CS5351-KZZR
Product Type: 108 dB, 192 kHz Stereo Analog-to-Digital Converter (ADC)
Dynamic Range: 108 dB
Total Harmonic Distortion + Noise (THD+N): -98 dB
Sampling Rates: Up to 192 kHz
Data Resolution: 24-bit
Architecture: Advanced Multi-bit Delta-Sigma
Analog Inputs: Single-Ended
Digital Interface Formats: Supports I²S and Left-Justified
Supply Voltage (Analog): 4.75 V to 5.25 V
Supply Voltage (Digital): 3.1 V to 5.25 V
Logic Levels Supported: 2.5 V to 5 V
Power Consumption: Approximately 135 mW
Package / Case: 24-Lead TSSOP
Mounting Type: Surface Mount
Operating Temperature Range: -10°C to +70°C
RoHS Status: RoHS Compliant

Key Features

The CS5351-KZZR is a high-performance stereo analog-to-digital converter designed for digital audio systems. It features an advanced multi-bit delta-sigma architecture, providing a dynamic range of 108 dB and a THD+N of -98 dB. The device supports sampling rates up to 192 kHz and delivers 24-bit resolution, ensuring high-fidelity audio conversion. With single-ended analog inputs and compatibility with I²S and left-justified digital interface formats, it offers flexibility for various audio applications. The ADC operates with an analog supply voltage between 4.75 V and 5.25 V and a digital supply voltage from 3.1 V to 5.25 V, supporting logic levels between 2.5 V and 5 V. Its low power consumption of approximately 135 mW makes it suitable for power-sensitive designs.

Applications

A/V receivers
DVD recorders
CD recorders
Digital mixing consoles
Audio effects processors

Product Overview

The CS5351-KZZR ADC is engineered to deliver exceptional audio performance for high-end digital audio systems. Its advanced multi-bit delta-sigma architecture ensures accurate and low-distortion audio conversion, making it ideal for applications requiring high dynamic range and low noise. The device’s support for various digital interface formats, including I²S and left-justified, allows seamless integration into diverse audio processing systems. Its robust design and wide operating temperature range ensure reliable performance in various environmental conditions. However, it’s important to note that this product is not recommended for new designs, as indicated by the manufacturer.
