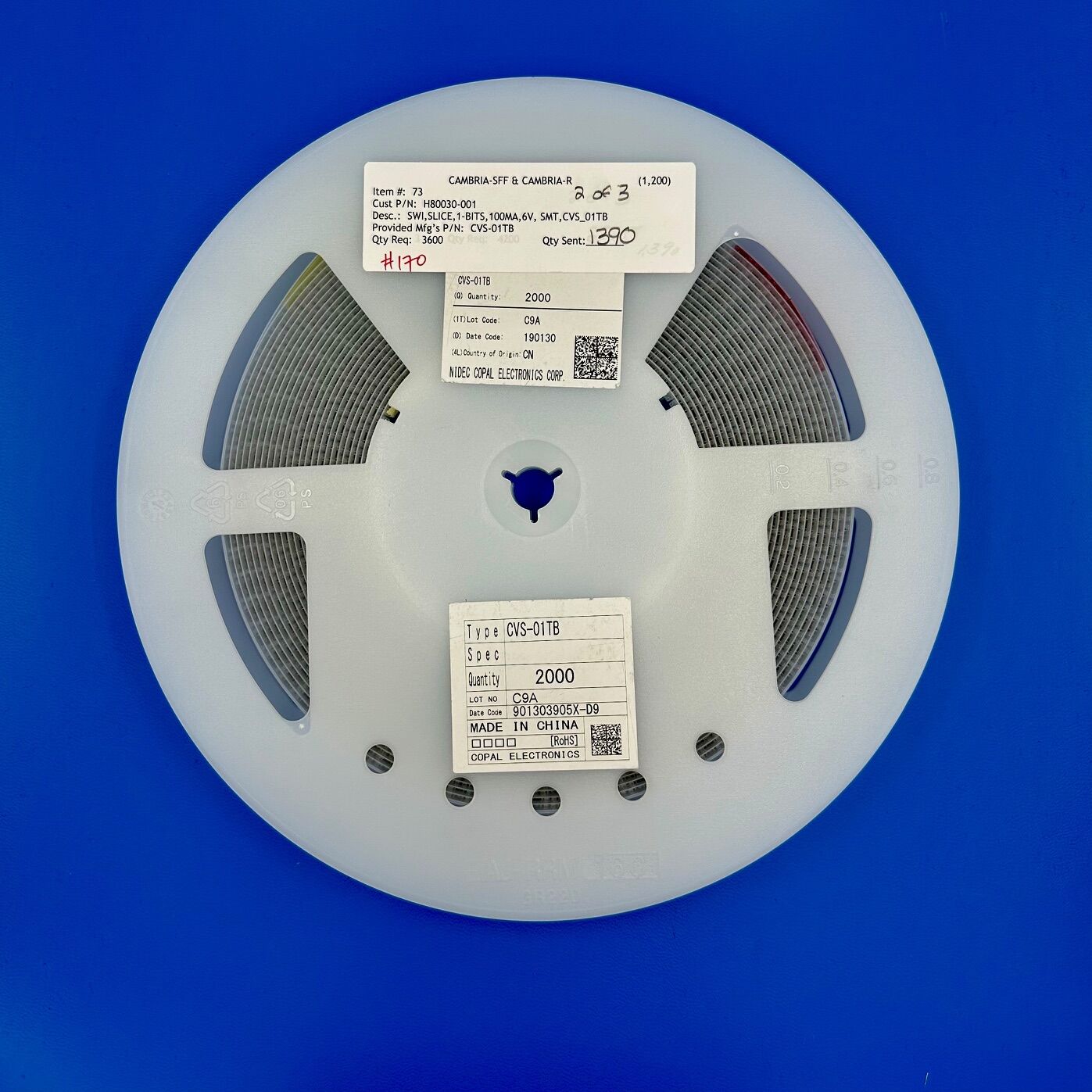

CVS-01TB

CVS-01TB Specifications

Manufacturer: Nidec Components Corporation
Part Number: CVS-01TB
Product Type: DIP Switch
Circuit Configuration: SPST (Single-Pole Single-Throw)
Number of Positions: 1
Actuator Type: Standard Slide
Actuator Level: Raised
Contact Material: Stainless Steel
Contact Finish: Gold
Pitch: 1.00 mm
Current Rating: 100 mA
Voltage Rating: 6 VDC
Mounting Type: Surface Mount
Termination Style: Gull Wing
Height Above Board: 1.45 mm
Body Material: Polyphenylene Sulfide (PPS)
Operating Temperature Range: -40°C to +85°C
Electrical Life: 1,000 cycles
Washable: No
Compliance: RoHS Compliant

Key Features

The CVS-01TB is a compact, single-position DIP switch designed for surface mount applications. Its SPST configuration allows for straightforward on-off control within electronic circuits. The switch features a standard slide actuator with a raised profile, facilitating easy manual operation. With a fine 1.00 mm pitch and low profile of 1.45 mm above the board, it is suitable for high-density PCB layouts. The use of stainless steel contacts with gold plating ensures reliable conductivity and resistance to corrosion. Additionally, the PPS body material provides durability and meets UL 94V-0 flammability standards, enhancing safety in various operating environments.

Applications

Configurable settings in industrial control systems
Address switching in communication devices
Mode selection in consumer electronics
Configuration of options in instrumentation equipment
DIP switch arrays for test and measurement devices

Product Overview

The Nidec Components Corporation CVS-01TB DIP switch offers a reliable solution for applications requiring a single on-off control within a compact form factor. Its surface mount design with gull wing terminations supports automated assembly processes, enhancing manufacturing efficiency. The switch’s robust construction, featuring gold-plated stainless steel contacts and a PPS housing, ensures consistent performance across a wide operating temperature range. With an electrical life of 1,000 cycles, the CVS-01TB provides dependable operation for applications necessitating infrequent but stable switching capabilities.
