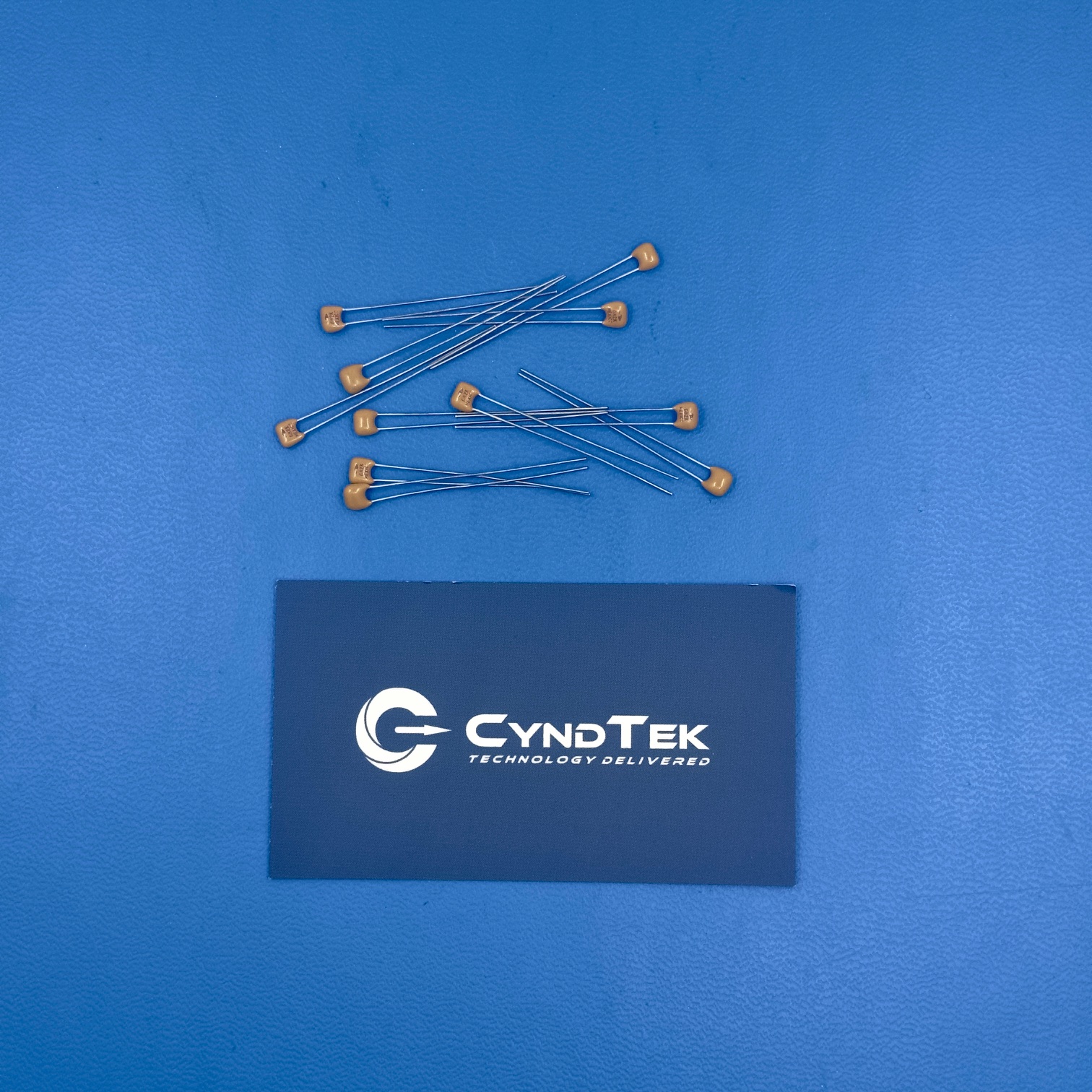

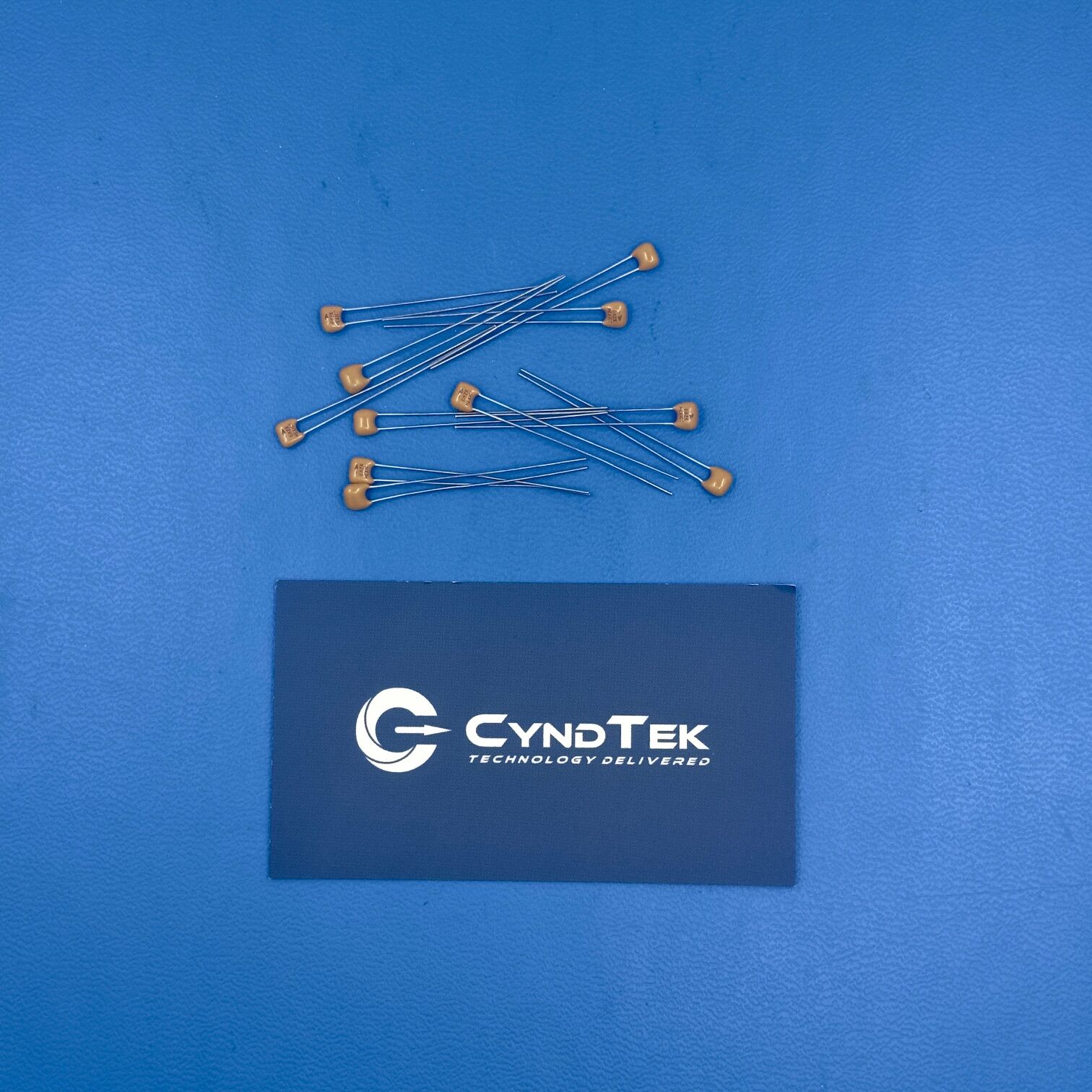

CW20A682K Specifications
Manufacturer: Vishay
Part Number: CW20A682K
Product Type: Ceramic Capacitor
Capacitance: 0.0068 µF
Voltage Rating: 100 V
Tolerance: ±10%
Dielectric Type: General Purpose Ceramic
Mounting Type: Through Hole
Lead Style: Radial Lead
Construction: Ceramic Disc
Operating Temperature Range: -55°C to +125°C
Application Class: Commercial and Industrial
Packaging: Factory
Key Features
The CW20A682K is a through-hole ceramic capacitor designed for general purpose filtering and decoupling applications. It provides 0.0068 µF capacitance with a 100 V rating for stable signal conditioning. Additionally, the ceramic disc construction supports dependable electrical performance across typical operating environments. The radial lead configuration simplifies installation in through-hole PCB assemblies. Because ceramic capacitors provide low impedance at high frequencies, they are commonly used in noise suppression and signal stabilization circuits. As a result, this component delivers reliable filtering performance in a wide range of electronic systems.
Applications
Signal filtering circuits
Power supply decoupling networks
Industrial control electronics
Consumer electronic assemblies
RF noise suppression circuits
Embedded control boards
Instrumentation circuits
General purpose PCB designs
Product Overview
The CW20A682K from Vishay delivers dependable ceramic capacitance performance in traditional through-hole assemblies. First, the 0.0068 µF value supports effective filtering of high-frequency noise. Furthermore, the 100 V rating provides adequate headroom for many analog and digital circuits. Because ceramic dielectric construction provides stable electrical characteristics, it supports reliable operation across typical temperature ranges.
Moreover, the radial lead format enables easy integration into legacy and new through-hole PCB designs. In addition, ceramic disc capacitors provide strong durability and long service life in electronic assemblies. Therefore, this device is suitable for both production builds and maintenance replacements. Overall, this ceramic capacitor provides stable filtering capability, simple integration, and dependable long-term performance.
