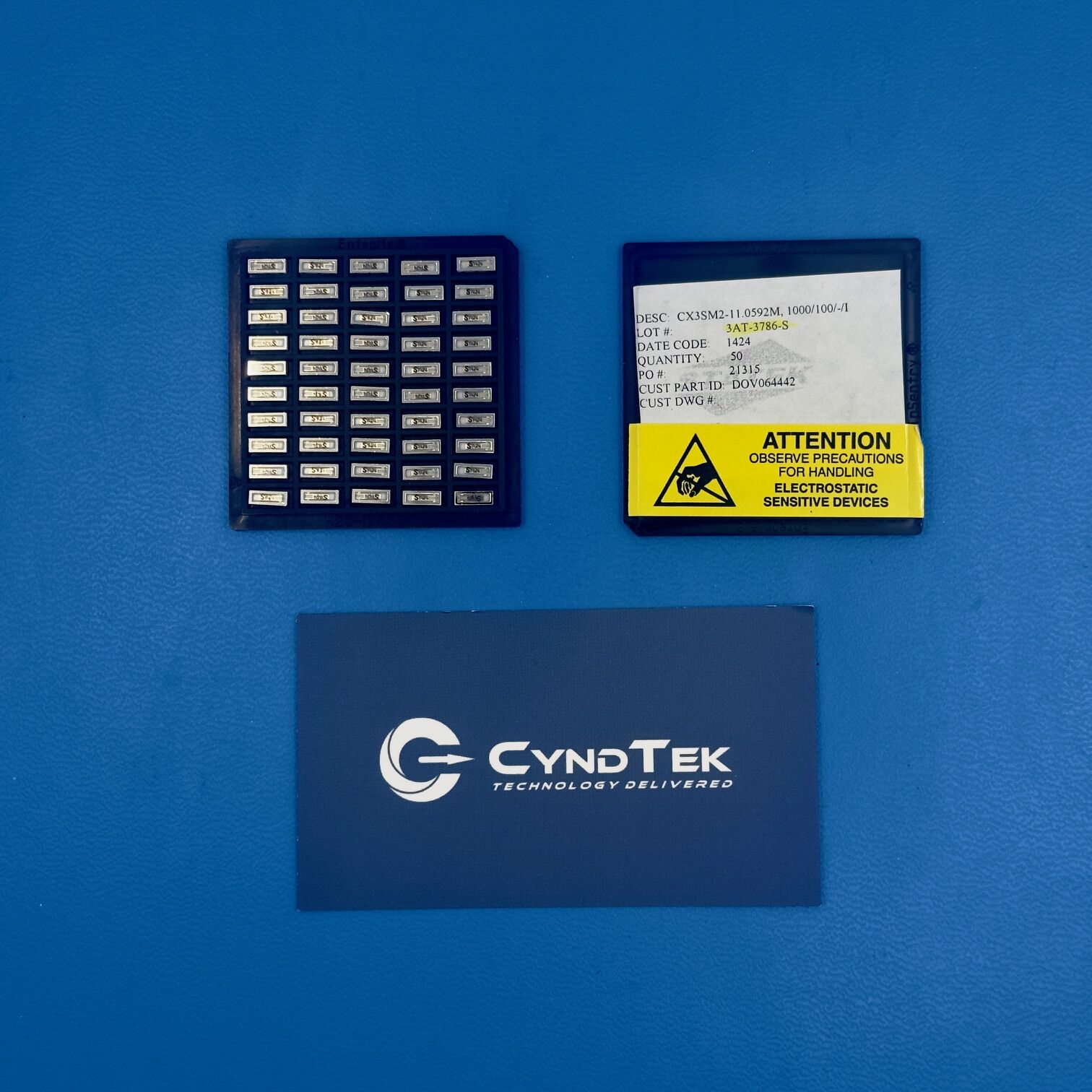

CX3SM2-11.0592M,1000/100/-1 Specifications
Manufacturer: Statek
Part Number: CX3SM2-11.0592M,1000/100/-1
Product Type: Quartz Crystal
Frequency: 11.0592 MHz
Frequency Tolerance: ±1000 ppm
Frequency Stability: ±100 ppm
Load Capacitance: Standard Configuration
Mounting Type: Surface Mount
Package Style: CX3SM2 Ceramic Package
Crystal Type: AT-Cut Quartz
Operating Temperature Range: Industrial Temperature Range
Application Class: Industrial and Commercial
Packaging: Factory
Key Features
The CX3SM2-11.0592M,1000/100/-1 is a miniature surface mount quartz crystal designed for stable frequency control in digital and embedded systems. It provides an operating frequency of 11.0592 MHz, a common reference frequency used in communication and timing circuits. Additionally, the compact CX3SM2 ceramic package supports space-efficient PCB layouts. The quartz AT-cut design maintains stable oscillation across operating temperature ranges. Because the device is engineered for reliable frequency control, it integrates easily into microcontroller and oscillator circuits. As a result, it delivers dependable clock generation for embedded electronics.
Applications
Microcontroller clock reference circuits
Serial communication timing systems
Embedded controller boards
Industrial control electronics
Telecommunication modules
Instrumentation and measurement equipment
Frequency control modules
Compact digital logic systems
Product Overview
The CX3SM2-11.0592M,1000/100/-1 from Statek delivers reliable frequency stability for compact electronic designs. First, the 11.0592 MHz frequency is widely used for UART timing and communication interfaces. Furthermore, the surface mount CX3SM2 package allows efficient placement in dense PCB assemblies. Because the crystal utilizes precision quartz construction, it maintains consistent oscillation characteristics across operating conditions.
Moreover, the stable frequency tolerance supports predictable timing performance in digital systems. In addition, the compact form factor enables integration into portable and embedded electronics. Therefore, it is suitable for both new design implementations and replacement applications. Overall, this quartz crystal provides stable clock generation, compact integration, and dependable long-term operation.
