CY22150KFZXC

CY22150KFZXC

$8.00

IC CLOCK GENERATOR 16TSSOP RL13
  • Manufacturer: Infineon
  • Part Number: CY22150KFZXC

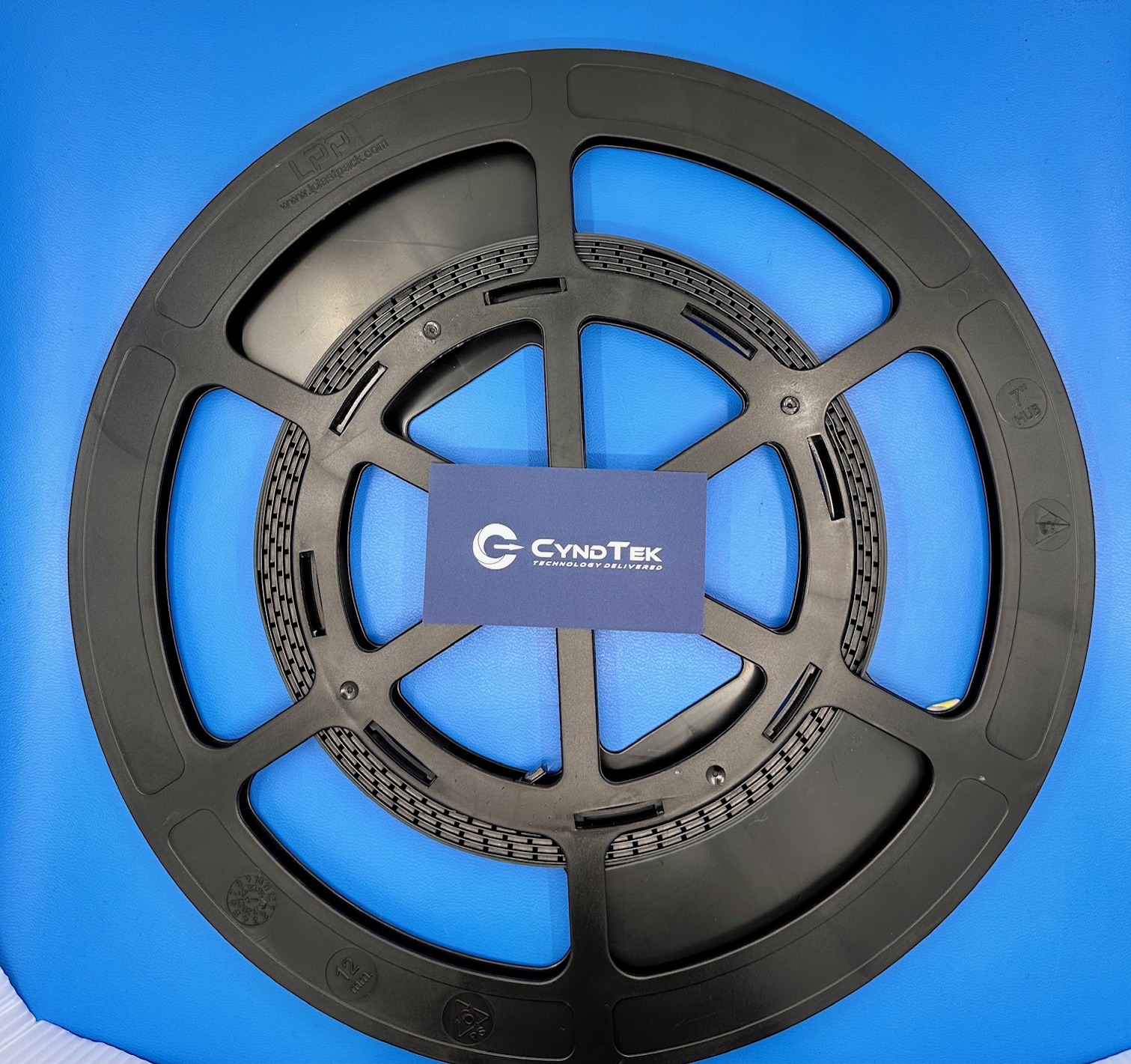

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2049

Availability: 334 in stock

SKU TSX032C Category Brand:

CY22150KFZXC Specifications

Manufacturer: Infineon Technologies
Part Number: CY22150KFZXC
Product Type: One-PLL General-Purpose Flash-Programmable and I²C Programmable Clock Generator
Input Frequency Range: 8 MHz to 30 MHz (external crystal); 1 MHz to 133 MHz (driven clock)
Output Frequency Range: 80 kHz to 200 MHz (3.3 V operation); 80 kHz to 166.6 MHz (2.5 V operation)
Supply Voltage Range: 3.135 V to 3.465 V
Output Voltage: 2.5 V or 3.3 V
Number of Outputs: 6
Output Type: CMOS
Programming Interface: I²C and Flash Programmable
Package / Case: 16-TSSOP
Mounting Type: Surface Mount
Operating Temperature Range: 0°C to +70°C
RoHS Status: RoHS Compliant

Key Features

The CY22150KFZXC is a versatile clock generator featuring a single-phase-locked loop (PLL) that can be programmed via Flash memory or an I²C interface. It accepts input frequencies from 8 MHz to 30 MHz when using an external crystal and from 1 MHz to 133 MHz with a driven clock. The device can generate output frequencies ranging from 80 kHz to 200 MHz, depending on the supply voltage. With six CMOS outputs, it provides flexibility for various clocking requirements. The CY22150KFZXC operates within a supply voltage range of 3.135 V to 3.465 V and offers output voltages of 2.5 V or 3.3 V. Its 16-TSSOP package supports surface mount assembly, making it suitable for compact designs. The device functions reliably over a temperature range of 0°C to +70°C and complies with RoHS standards, ensuring environmental responsibility.

Applications

Networking equipment
Telecommunications systems
Consumer electronics
Industrial automation
Embedded systems

Product Overview

The CY22150KFZXC from Infineon Technologies is designed to provide precise and programmable clock generation for a wide range of applications. Its ability to accept both crystal and driven clock inputs, combined with a broad output frequency range, makes it adaptable to various system requirements. The dual programming interfaces, Flash and I²C, offer flexibility in configuration and reconfiguration. This allows rapid prototyping and design adjustments. With six CMOS outputs, the device can drive multiple components within a system, reducing the need for additional clock distribution devices. Its compact 16-TSSOP package and surface mount design enable efficient use of PCB space. The CY22150KFZXC is a reliable choice for applications requiring customizable and high-performance clock generation.
