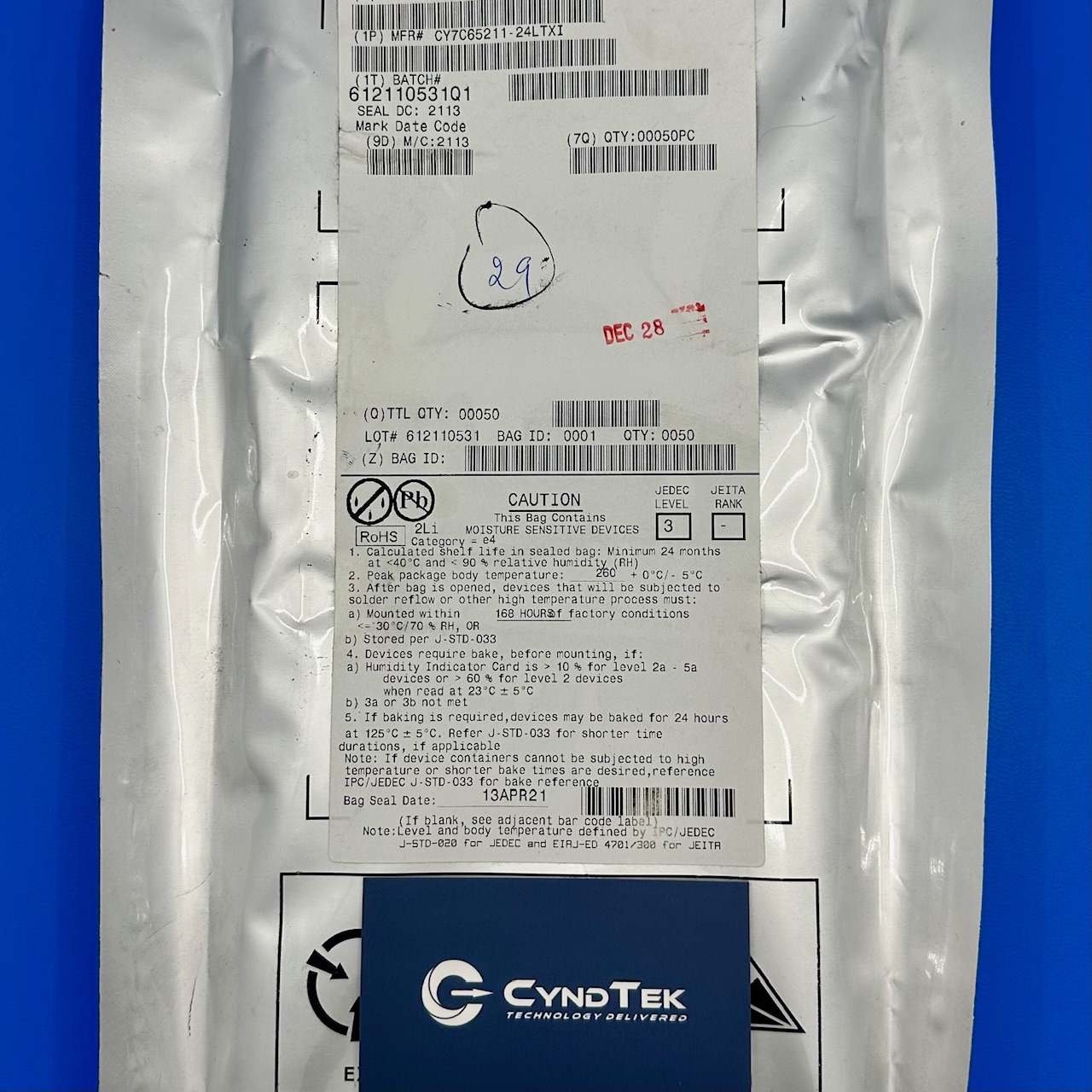

CY7C65211-24LTXI Specifications
Manufacturer: Cypress Semiconductor
Part Number: CY7C65211-24LTXI
Device Type: USB peripheral controller
USB Standard: USB 2.0 full-speed
Data Rate: 12 Mbps
Operating Voltage: 3.3 V nominal
GPIO Count: Configurable general-purpose I O pins
Interface Functions: USB device controller with control endpoints
Clock Source: Internal oscillator support
Firmware Support: Programmable device firmware
Package Type: QFN-24
Mounting Style: Surface mount
Operating Temperature Range: -40 °C to +85 °C
Packaging Type: Tape and reel
Category: Semiconductor
Key Features
This USB controller enables simple device connectivity. It supports full-speed USB communication. As a result, integration with host systems is straightforward. The configurable GPIO pins allow flexible control. Additionally, the internal USB engine offloads protocol handling. Therefore, firmware complexity is reduced. The compact QFN package saves board space.
Applications
USB peripheral devices
Embedded USB interfaces
Human interface devices
USB-based sensors and modules
Data acquisition peripherals
Consumer electronics connectivity
Industrial control interfaces
Product Overview
The CY7C65211-24LTXI from Cypress Semiconductor is designed for embedded USB device applications. First, it provides a reliable full-speed USB interface. This ensures consistent communication with host systems. Next, the integrated USB controller reduces external component needs. Because of this, overall system complexity is lowered.
Additionally, the programmable GPIO pins support custom control functions. This improves design flexibility. The internal firmware support simplifies development workflows. As a result, time to market is reduced. The surface-mount QFN package enables compact layouts. Therefore, it fits well in space-constrained designs.
Overall, this USB controller balances simplicity and flexibility. It is well suited for both consumer and industrial USB peripherals. Designers can rely on it for stable and efficient USB connectivity.
