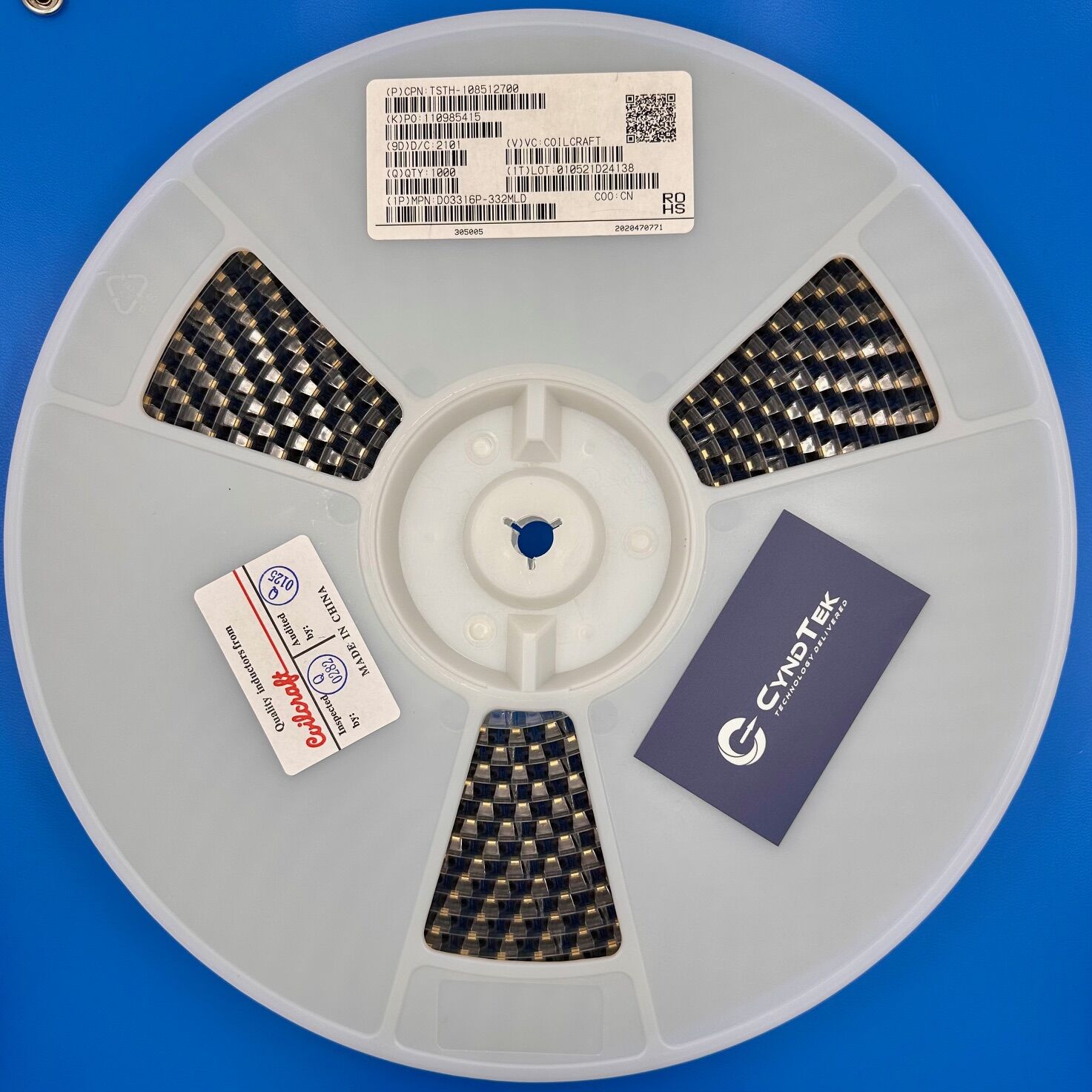

D03316P-332MLD

D03316P-332MLD Specifications

Manufacturer: Coilcraft
Part Number: D03316P-332MLD
Product Type: Unshielded Drum Core Inductor
Inductance: 3.3 µH
Tolerance: ±20%
Current Rating: 5.4 A
Saturation Current (Isat): Not specified
DC Resistance (DCR): 15 mΩ (maximum)
Core Material: Ferrite
Shielding: Unshielded
Self-Resonant Frequency: Not specified
Operating Temperature Range: Not specified
Mounting Type: Surface Mount
Package / Case: Nonstandard
Dimensions: Not specified
RoHS Status: Not specified

Key Features

The D03316P-332MLD from Coilcraft is an unshielded drum core inductor designed for applications requiring moderate inductance and current handling capabilities. With an inductance value of 3.3 µH and a current rating of 5.4 A, it is suitable for various power supply and filtering applications. The inductor’s ferrite core material ensures efficient performance, while its unshielded construction allows for a compact design. The low DC resistance of 15 mΩ minimizes power losses, enhancing overall efficiency. Its surface mount design facilitates easy integration into modern PCB layouts.

Applications

Power supply circuits in consumer electronics
DC-DC converters in computing devices
Noise filtering in automotive electronics
Energy storage in industrial power systems
Voltage regulation modules in telecommunications equipment

Product Overview

Coilcraft’s D03316P-332MLD is engineered to provide reliable inductance in a compact, surface-mount package. Its unshielded drum core design allows for a smaller footprint, making it ideal for applications where space is limited. The inductor’s moderate current handling capabilities and low DC resistance support efficient energy transfer and reduced thermal dissipation. Compliance with industry standards ensures compatibility with various electronic designs. Overall, the D03316P-332MLD offers a balance of size, efficiency, and reliability, making it a suitable choice for a wide range of electronic applications.
