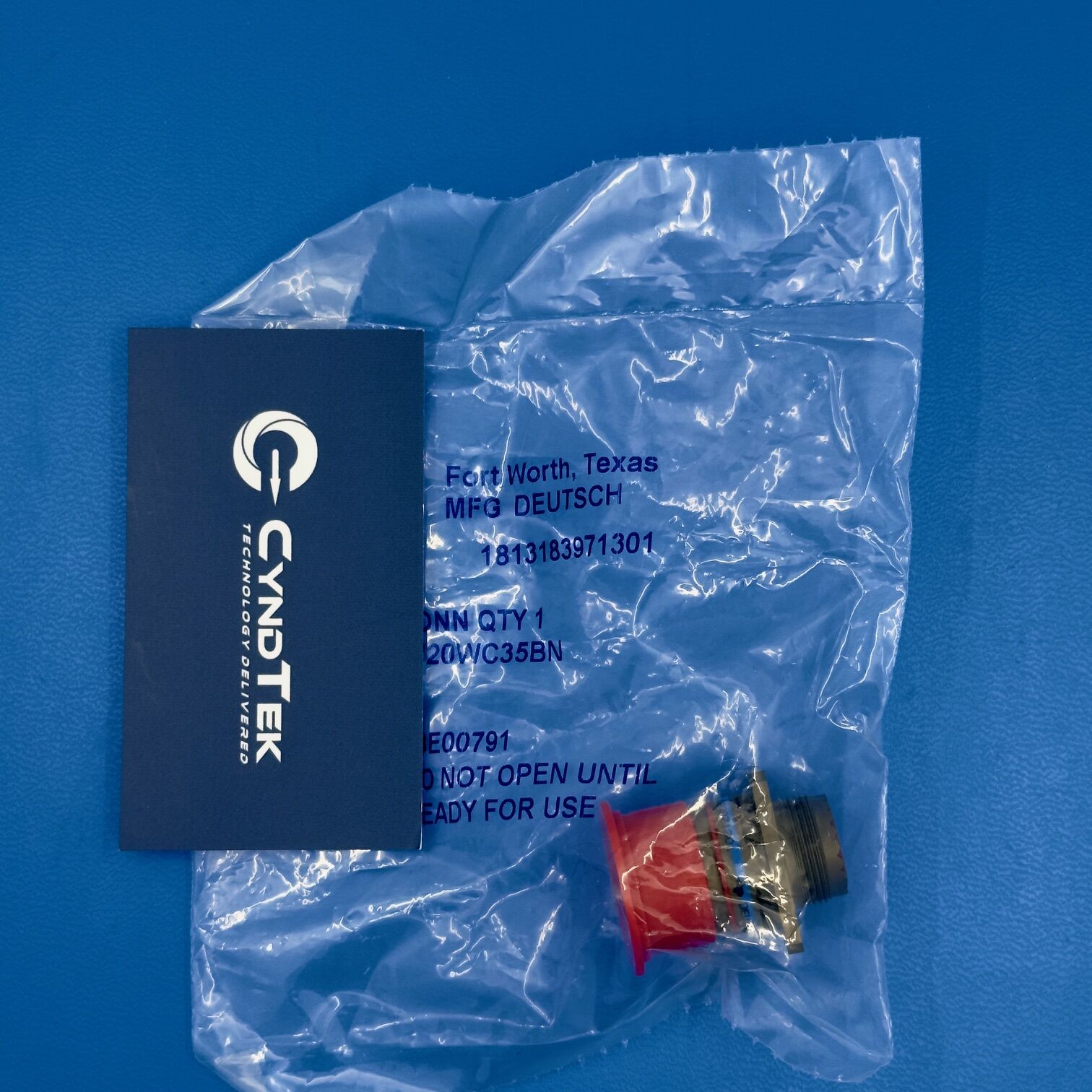

D38999/20WC35BN Specifications
Manufacturer: Deutsch
Part Number: D38999/20WC35BN
NSN: 5935-01-377-0118
Connector Type: Circular Receptacle
Series: MIL-DTL-38999 Series III
Contact Gender: Socket
Number of Positions: 22
Shell Size: 20
Insert Arrangement: 20-35
Mounting Style: Wall Mount
Termination Type: Crimp
Coupling Mechanism: Self-Locking Threaded
Shell Finish: Olive Drab Cadmium
Shielding: EMI/RFI Shielded
Operating Temperature Range: -65°C to +200°C
Packaging: Factory
Key Features
The D38999/20WC35BN is a MIL-DTL-38999 Series III circular receptacle engineered for aerospace and defense interconnect systems. It features 22 socket contacts for controlled signal routing in compact assemblies. Additionally, the self-locking threaded coupling ensures secure mating under vibration and mechanical stress. The EMI and RFI shielding supports signal integrity in electrically demanding environments. Because it meets military specification standards, it integrates directly into regulated interconnect platforms. As a result, it delivers dependable performance in mission-critical applications.
Applications
Military aircraft avionics systems
Ground vehicle communication networks
Naval radar control modules
Aerospace instrumentation panels
Defense electronic subsystems
Environmental sealed cable assemblies
Secure tactical communication equipment
High-reliability circular interconnect systems
Product Overview
The D38999/20WC35BN from Deutsch delivers rugged connectivity for harsh operational environments. First, its 22-position insert arrangement supports organized signal management. Furthermore, the crimp termination style enables consistent and serviceable cable assembly. Because it incorporates self-locking threads, it maintains mechanical stability during vibration and shock.
Moreover, the olive drab cadmium finish enhances corrosion resistance in field conditions. In addition, MIL-DTL-38999 compliance supports qualification within aerospace and defense procurement programs. Therefore, it is suitable for both new production builds and maintenance replacements. Overall, this circular receptacle provides secure mating, strong shielding performance, and long-term durability.
