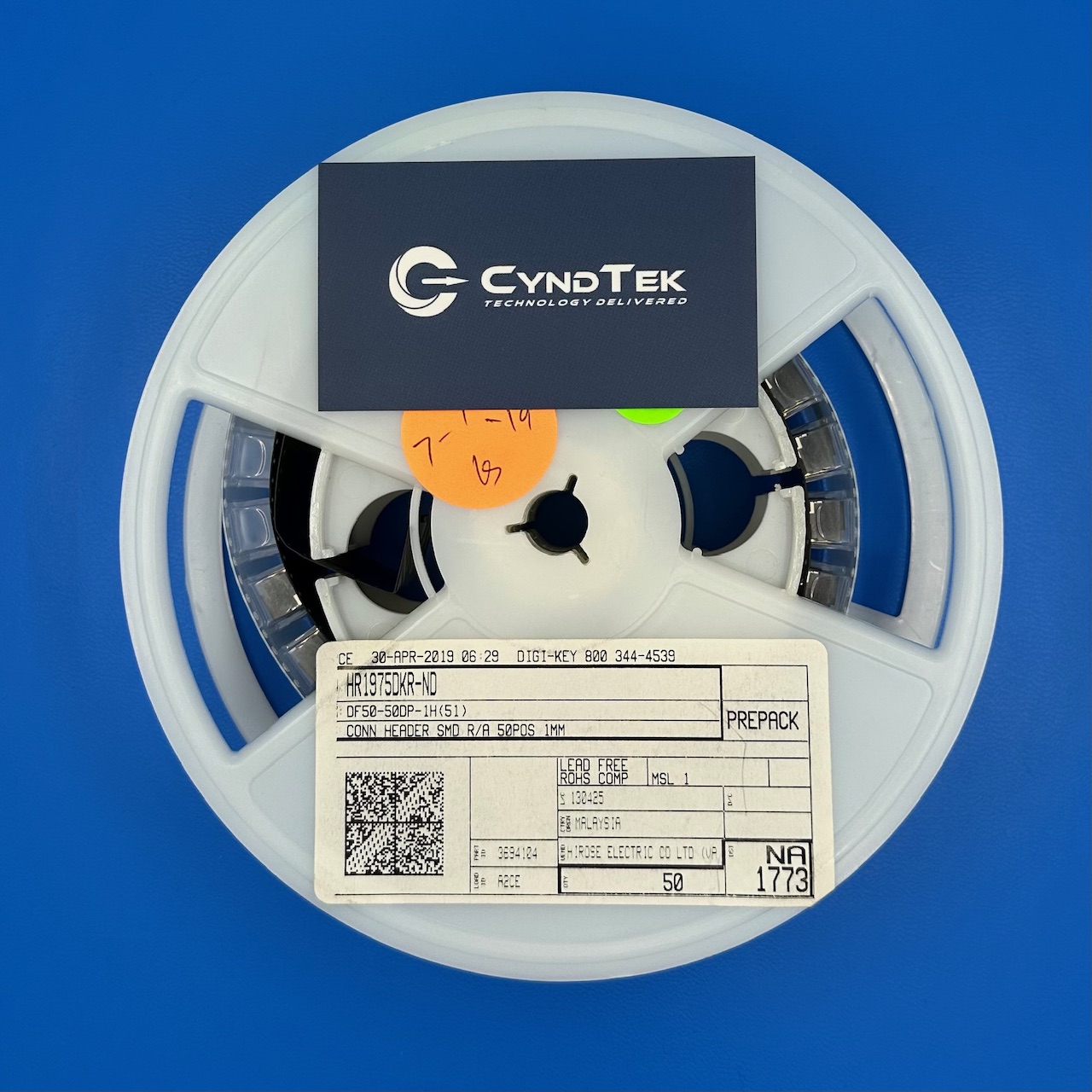

DF50-50DP-1H(51)

DF50-50DP-1H(51) Specifications

Manufacturer: Hirose Electric Co., Ltd.
Part Number: DF50-50DP-1H(51)
Product Type: Wire-to-Board Connector Header
Series: DF50
Connector Type: Header, Shrouded
Number of Positions: 50
Number of Rows: 2
Contact Pitch: 1.0 mm
Mounting Type: Surface Mount (Right Angle)
Contact Material: Brass
Contact Plating: Gold
Housing Material: Thermoplastic Resin
Housing Color: Black
Rated Current: 1.0 A
Rated Voltage: 100 V AC/DC
Contact Resistance: 30 mΩ max
Withstanding Voltage: 300 V AC
Operating Temperature Range: -35°C to +85°C
Durability: 30 mating cycles
Length: 29.35 mm
Width: 8.66 mm
Height: 9.00 mm
RoHS Status: RoHS Compliant

Key Features

The DF50-50DP-1H(51) is a compact, high-density connector designed to support modern PCB layouts where space and reliability are priorities. With its 1.0 mm pitch and two-row, 50-position configuration, this right-angle header is ideal for systems demanding efficient signal routing. The gold-plated brass contacts deliver reliable conductivity and reduce long-term wear. Additionally, the housing material enhances durability under mechanical stress. The surface mount design simplifies automated assembly, while the connector’s performance remains consistent across a broad operating temperature range. Its electrical ratings meet requirements for low-voltage, low-current systems commonly used in modern electronics.

Applications

Consumer electronics
Telecommunications systems
Medical devices
Automotive modules
Industrial control systems

Product Overview

The DF50-50DP-1H(51) combines Hirose’s precision engineering with modern design requirements for compact and robust connectivity. Its low-profile, right-angle layout makes it well-suited for slim device housings and dense PCB environments. Furthermore, its 1.0 mm pitch supports high pin counts without compromising layout efficiency. The secure mating design and consistent electrical performance contribute to dependable long-term operation in a variety of conditions. Because it is built to withstand 30 mating cycles and high humidity, the connector suits both consumer-grade and light-industrial uses. Its RoHS compliance further supports sustainability objectives in global manufacturing.
