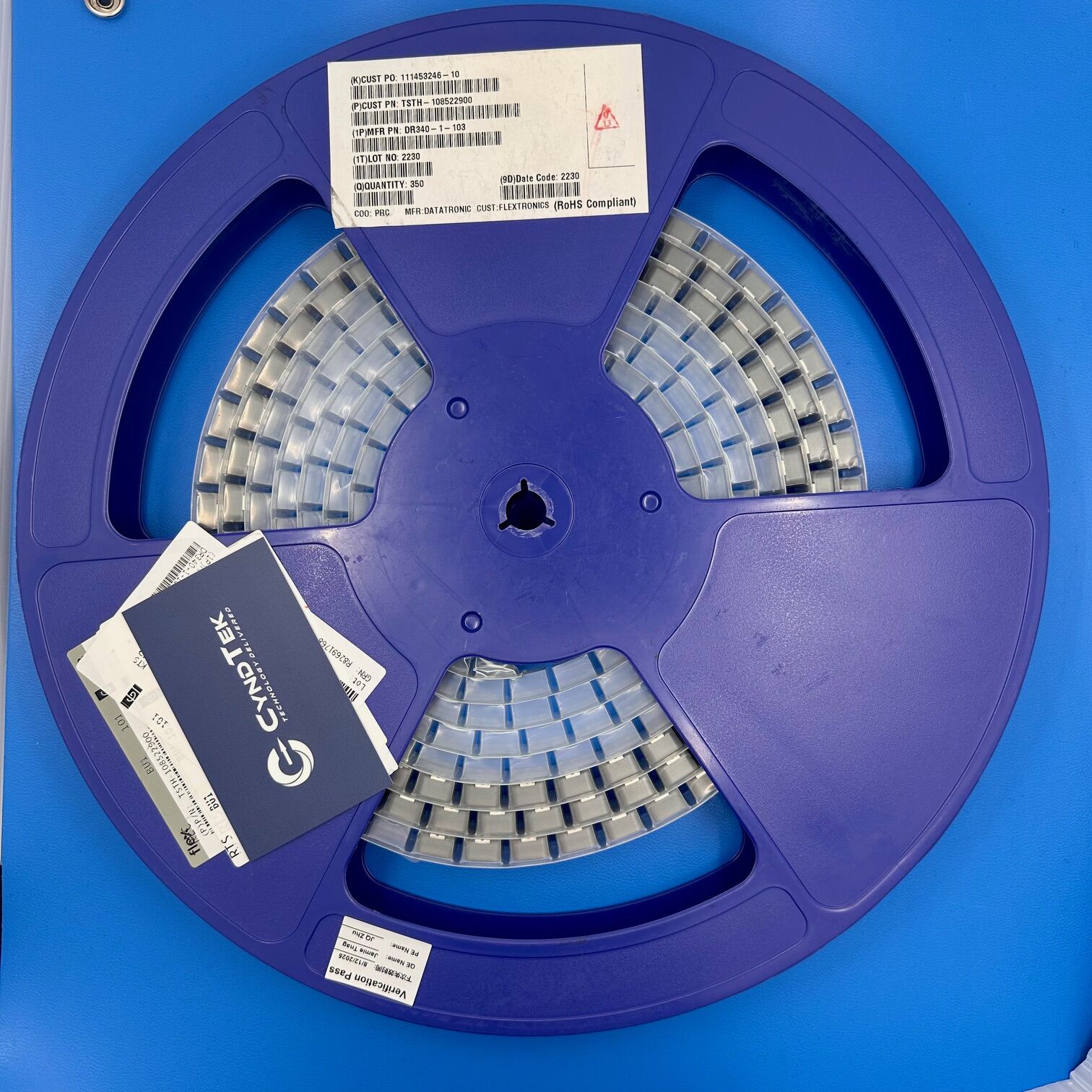

DR340-1-103

DR340-1-103 Specifications

Manufacturer: Datatronic Distribution, Inc.
Part Number: DR340-1-103
Product Type: Shielded Power Inductor
Inductance: 10 µH ±20%
Test Frequency: 1 kHz
DC Resistance (DCR): 0.022 Ω (Max)
Rated Current (IDC): 5.4 A (Max)
Operating Temperature Range: -20°C to +80°C
Footprint: 12 mm x 12 mm (Max)
RoHS Status: Non-RoHS versions available

Key Features

The DR340-1-103 from Datatronic Distribution is a shielded power inductor designed for efficient energy storage and filtering in power supply circuits. With a 10 µH inductance and a maximum DC resistance of 0.022 Ω, it supports a maximum current of 5.4 A. Its shielded construction minimizes electromagnetic interference (EMI), enhancing performance in noise-sensitive applications. The compact 12 mm x 12 mm footprint allows for integration into space-constrained designs. Operating reliably between -20°C and +80°C, it meets the demands of various environmental conditions.

Applications

Power supply circuits in consumer electronics
DC-DC converters in computing devices
Noise filtering in automotive electronics
Energy storage in industrial power systems
Voltage regulation modules in telecommunications equipment

Product Overview

Datatronic Distribution’s DR340-1-103 shielded power inductor offers a balance of compact size and high performance. Its 10 µH inductance and low DC resistance ensure efficient operation in power supply and filtering applications. The shielded design reduces EMI, making it suitable for noise-sensitive environments. Its ability to handle up to 5.4 A of current and operate across a wide temperature range makes it versatile for various electronic applications. Non-RoHS versions are available to accommodate different compliance requirements.
