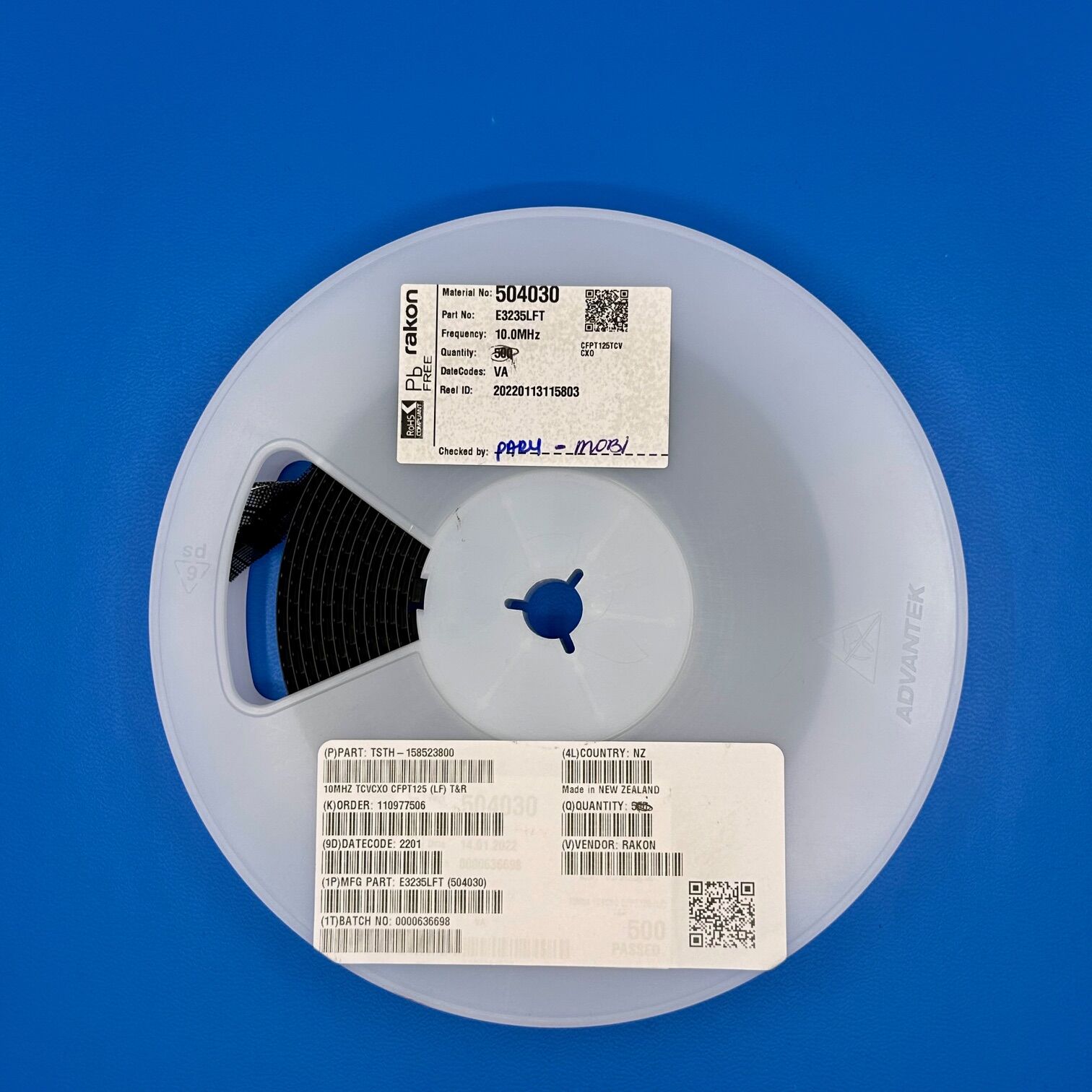

E3235LFT

E3235LFT Specifications

Manufacturer: Rakon
Part Number: E3235LFT
Product Type: Clock Generator
Frequency Range: 10 MHz to 200 MHz
Input Frequency: 10 MHz to 27 MHz
Output Frequency: 10 MHz to 200 MHz
Output Logic Levels: LVCMOS
Number of Outputs: 3
Supply Voltage: 3.3V ±10%
Jitter (Cycle-to-Cycle): 50 ps (typical)
Phase Noise (100 kHz offset): -130 dBc/Hz
Package / Case: 8-Lead SOIC
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant​

Key Features

The E3235LFT is a versatile clock generator designed to provide precise timing solutions for various electronic systems. It accepts a fundamental mode crystal or a single-ended clock input ranging from 10 MHz to 27 MHz. It generates three LVCMOS outputs with frequencies between 10 MHz and 200 MHz. This flexibility allows the device to cater to a wide range of applications. With a typical cycle-to-cycle jitter of 50 ps and a phase noise of -130 dBc/Hz at a 100 kHz offset, the E3235LFT ensures low-noise performance, which is crucial for high-speed communication systems. The device operates from a 3.3V supply and is housed in an 8-lead SOIC package, making it suitable for surface-mount applications.​

Applications

Networking equipment
Telecommunications systems
Data communication devices
Consumer electronics
Industrial automation
Test and measurement equipment

Product Overview

The E3235LFT clock generator from RAKON offers a reliable and flexible solution for applications requiring precise clock signals. Its ability to accept a wide range of input frequencies and generate multiple output frequencies makes it adaptable to various system requirements. The low jitter and phase noise characteristics ensure signal integrity, which is essential in high-performance systems. Additionally, the device’s operation over an extended temperature range of -40°C to +85°C makes it suitable for both commercial and industrial environments. The RoHS-compliant 8-lead SOIC package facilitates easy integration into existing designs, providing a cost-effective timing solution.​
