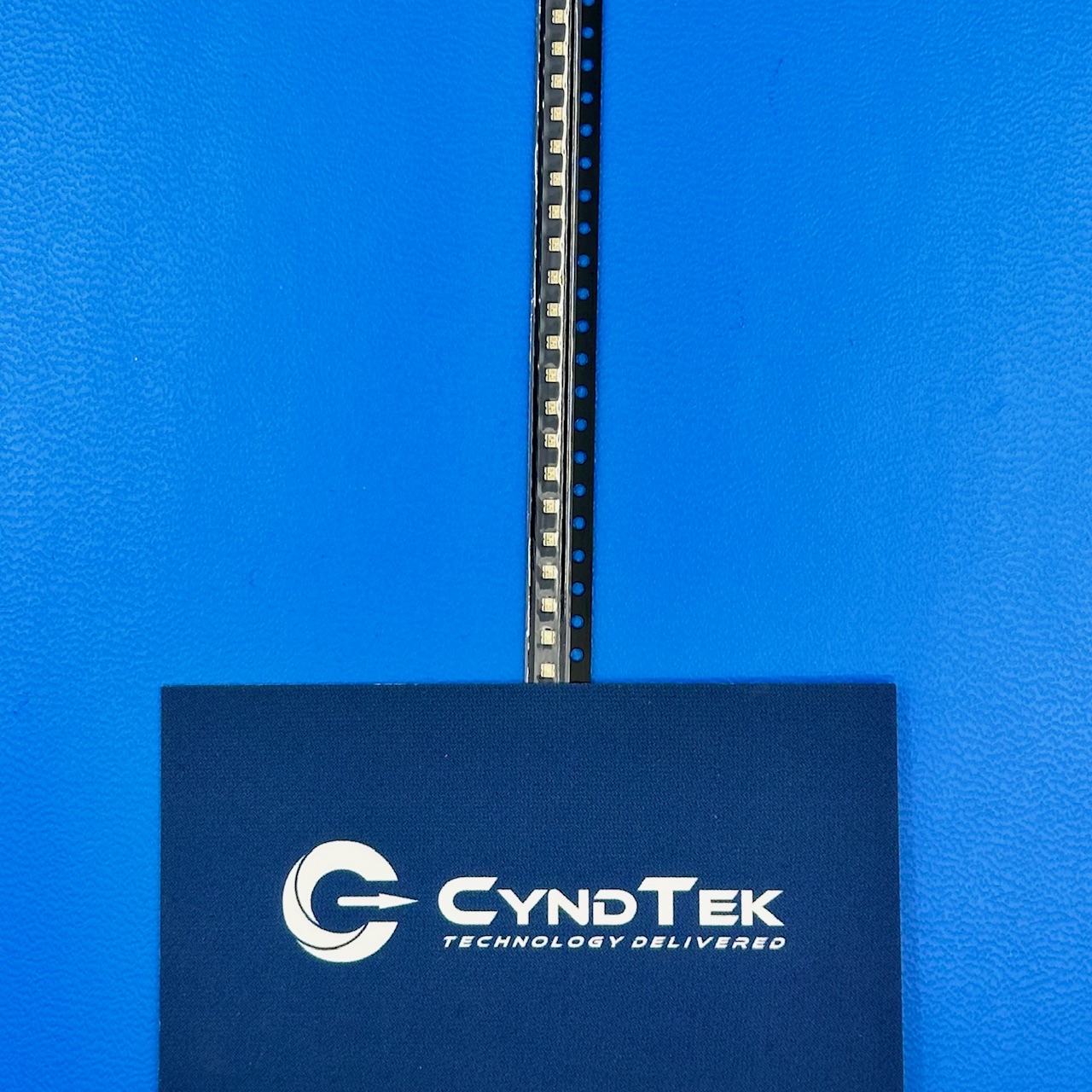

EAST1616RGBA4 Specifications
Manufacturer: Everlight Electronics Co., Ltd
Part Number: EAST1616RGBA4
Product Type: Surface-Mount RGB LED
Illumination Color: Red, Green, Blue (RGB)
Dominant Wavelengths: 624 nm (Red), 525 nm (Green), 470 nm (Blue)
Luminous Intensity: 100 mcd (Red), 180 mcd (Green), 50 mcd (Blue)
Forward Voltage (Typ.): 2.05 V (Red), 3.25 V (Green), 3.25 V (Blue)
Forward Current (Typ.): 20 mA per color
Viewing Angle: 120°
Lens Color: Colorless
Lens Transparency: Clear
Package / Case: 0606 (1.6 mm x 1.6 mm)
Mounting Type: Surface Mount
Height (Max): 0.45 mm
RoHS Status: RoHS Compliant
Key Features
The EAST1616RGBA4 is a compact surface-mount RGB LED designed to provide vibrant color mixing in a minimal footprint. Each color—red, green, and blue—operates at a typical forward current of 20 mA, ensuring consistent brightness levels. The LED’s dominant wavelengths are 624 nm for red, 525 nm for green, and 470 nm for blue, offering a wide color gamut suitable for various display applications. With a clear, colorless lens, the LED maintains high transparency, resulting in bright and vivid illumination. Its low profile, measuring just 0.45 mm in height, makes it ideal for applications where space is limited. The wide viewing angle of 120° ensures uniform light distribution, enhancing visibility from different perspectives. Additionally, the LED is compatible with automatic placement equipment, facilitating efficient manufacturing processes. Its compliance with RoHS standards underscores Everlight’s commitment to environmental responsibility.
Applications
Status indicators
Backlighting for LCDs
Keypad illumination
Consumer electronics
Wearable devices
Architectural lighting
Product Overview
The EAST1616RGBA4 from Everlight Electronics Co., Ltd is engineered to deliver high-quality RGB illumination in a compact form factor. Its surface-mount design and 0606 package size allow for seamless integration into densely populated PCBs, making it suitable for modern electronic devices where space is at a premium. The LED’s clear lens and wide viewing angle contribute to its excellent light dispersion characteristics, ensuring consistent color mixing and brightness across various applications. Operating at standard forward currents and voltages, it simplifies circuit design and power management considerations. Its low profile not only enhances aesthetic appeal but also enables its use in slim and portable devices. By adhering to RoHS compliance, the EAST1616RGBA4 aligns with global environmental standards, making it a reliable and eco-friendly choice for designers and manufacturers seeking to incorporate vibrant RGB lighting into their products.
